Graco Simulation XM

Overview
407061B 5
Operator Command Mode Screens
To enter the Operator Command Mode screens dur ing simulation, go to the Software Versions screen and press the
UP arrow. See Setup Mode Screens on page 4 for instructions on how to navigate to the Software Versions screen.
NOTE: The Supply screen exists only on an XM PFP system.

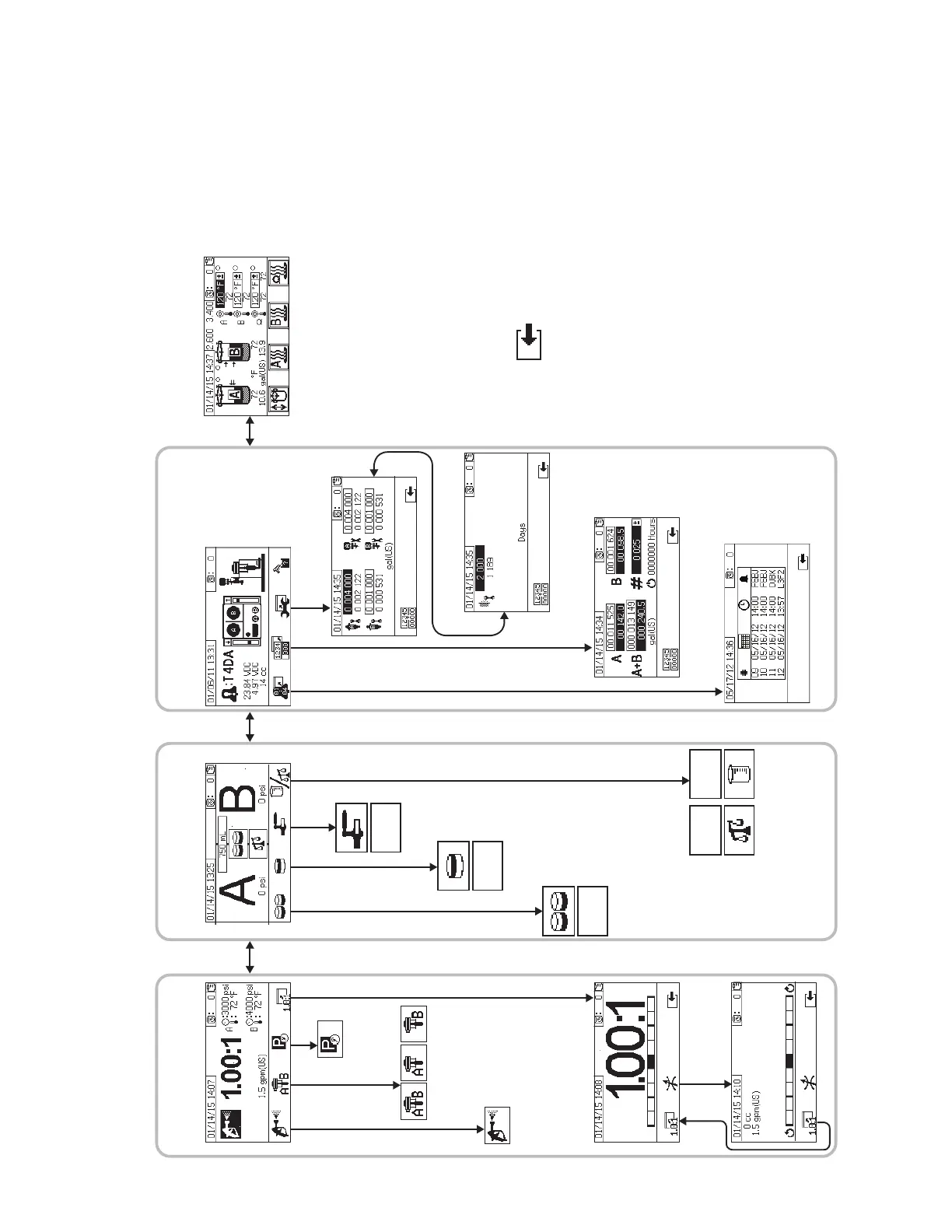

Operator Command Mode Screens Navigation Diagram
Run (Fluid Control) Screens
Park Pump
Pump Mode
Spray Mode
(Spray Mode shown)
Restrictor
Ratio
Test Screens
Valve Test
BatchTest
Pump Test
Information Screens
(Pump Volume Test shown)
Weight/Volume
Alarm Information
Maintenance 1
Totalizer
Alarm Log
Maintenance 2
Supply Screen
Go to primary screen
in each section
