Graco Ultimate 490 XT - Lo-Boy Models

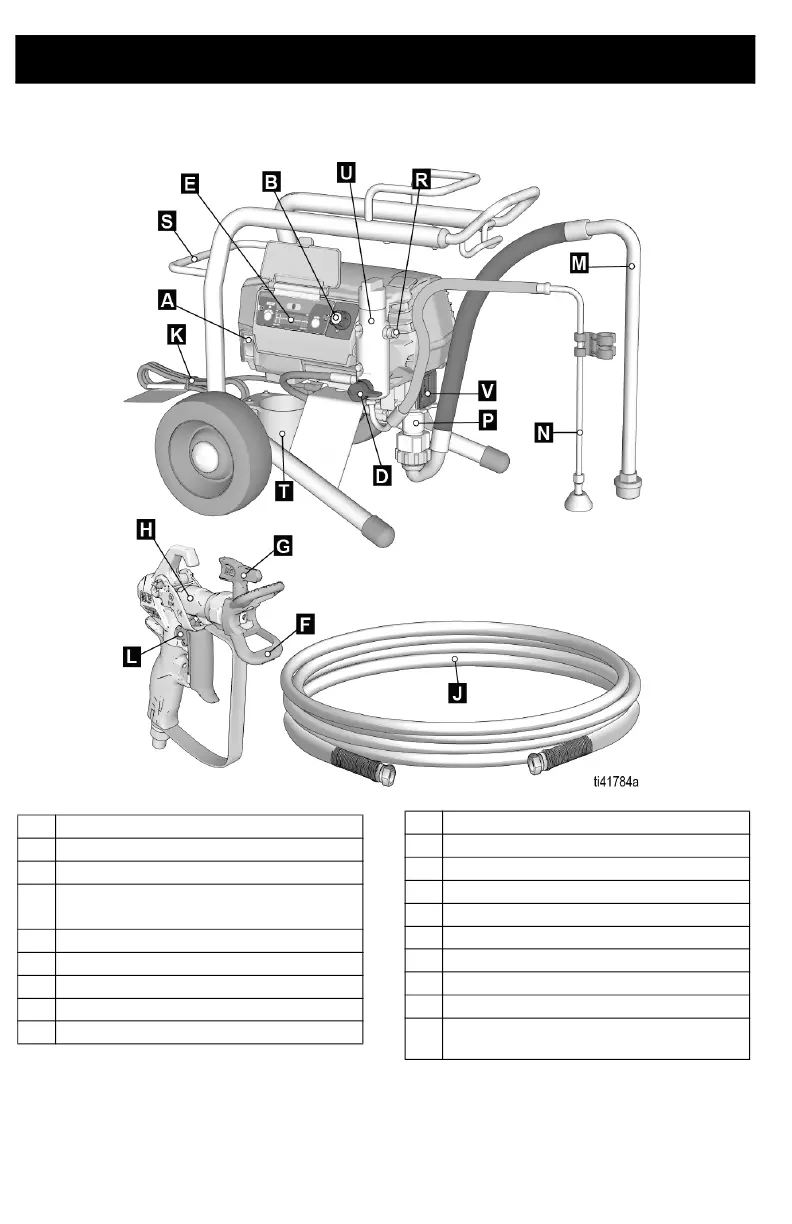

Component Identification
10 3A9095C
Lo-Boy Models
A ON/OFF Switch
B Pressure Control
D Prime Valve
E Controls and Display (see detailed
image, pg.12)
F Tip Guard
G Spray Tip
H Gun
J Airless Hose
K Power Cord
L Trigger Lock
M Drain Tube
N Suction Tube
P Pump
R Fluid Outlet
S Cord/Hose Wrap
T Drip Cup
U Filter
V Finger Guard / TSL Fill Point
Model/Serial Tag (Not shown,
located on bottom of unit.)
