Graco Ultimate 490 XT - Page 40

Parts
40 3A9095C

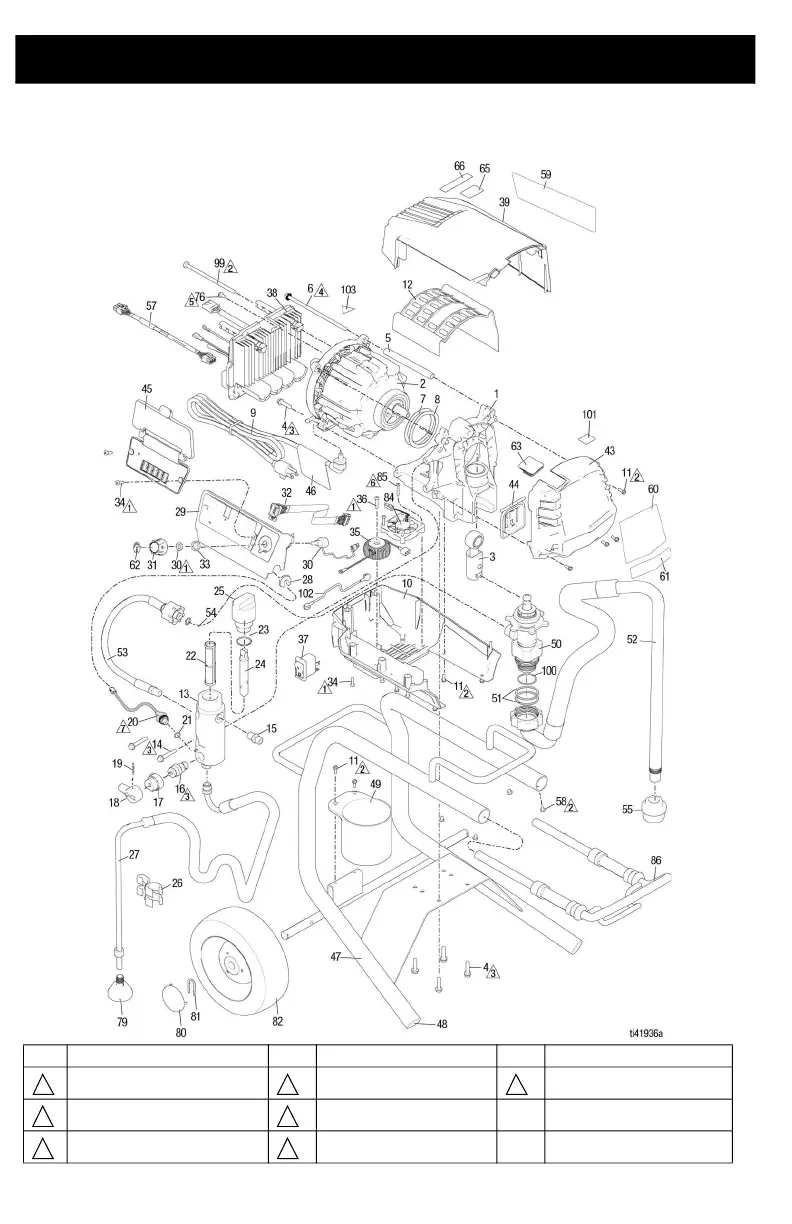

Lo-Boy Models 490 XT, 495 XT
Ref. Torque Ref. Torque Ref. Torque
12-16 in-lb (1.4-1.8 N•m) 70-75 in-lb (7.9-8.5 N•m) 37-43 ft-lb (50.2-58.3 N•m)
20-25 in-lb (2.3-2.8 N•m) 40-45 in-lb (4.5-5.1 N•m)
140-160 in-lb (15.8-18.1 N•m) 8-10 in-lb (0.9-1.1 N•m)
1 4 7
2 5
3 6
