Displacement Pump Replacement 1095/1595/Mark V
42 311365H

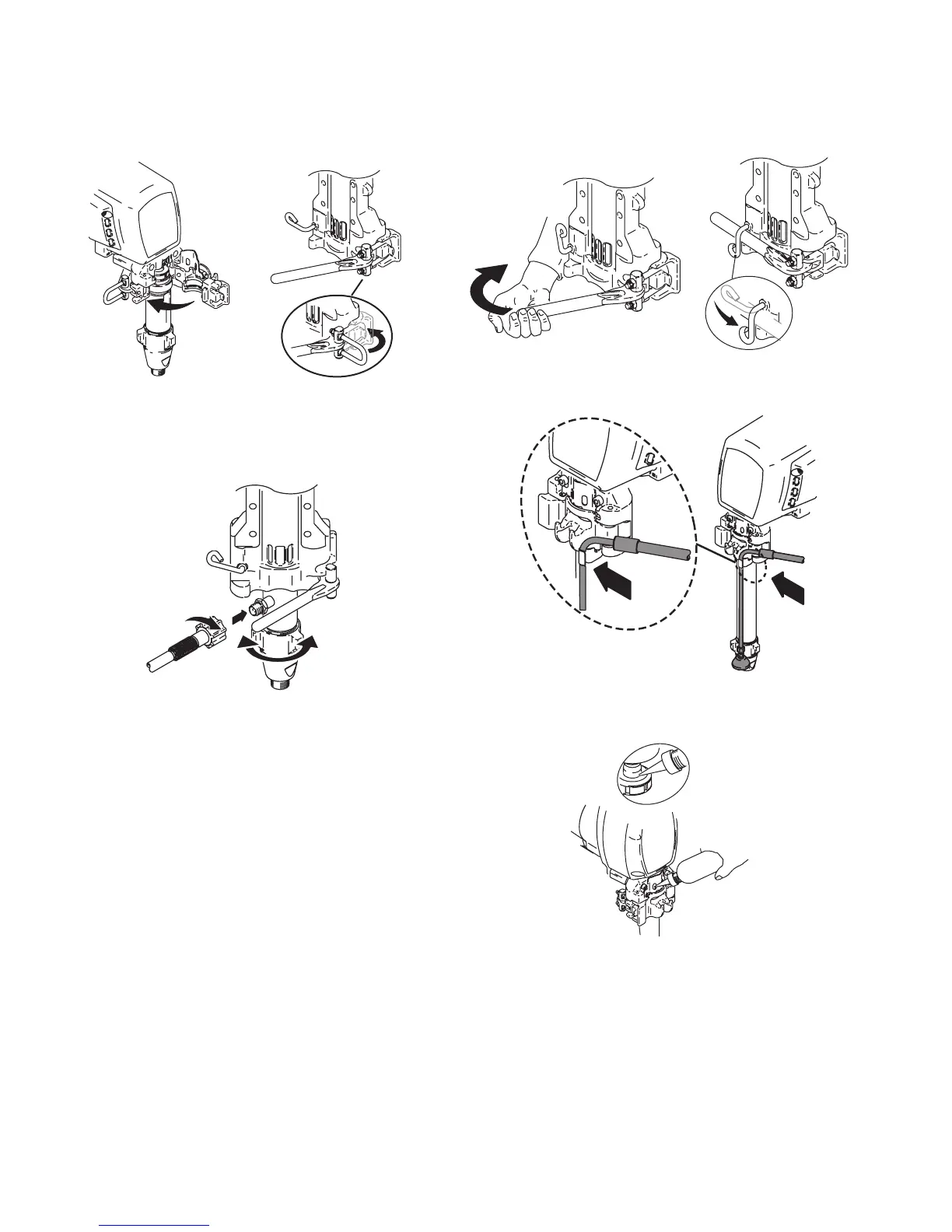

4. Close pump door and rotate latch into position.
Do not tighten latch.
5. Rotate pump to align with paint hose. Connect
paint hose and hand tighten to 70 in-lb.
6. Tighten latch and rotate latch lock into locked
position.
7. Attach drain hose to sprayer.
8. Fill pump with Graco TSL until fluid flows onto
top of seal.
ti7329a
ti6313a
ti6299a
ti6204a
TI6312a
ti7330a
ti5493a

Graco ultra max ii Specifications

General

Max Pressure	3300 PSI
Motor	Oilless, axial cam
Series	Ultra Max II
Power Source	Electric
Voltage	120V
Hose Length	50 ft
Type	Airless
Max Tip Size	0.017 inches
Spray Tip Size	0.009 - 0.017 inches
