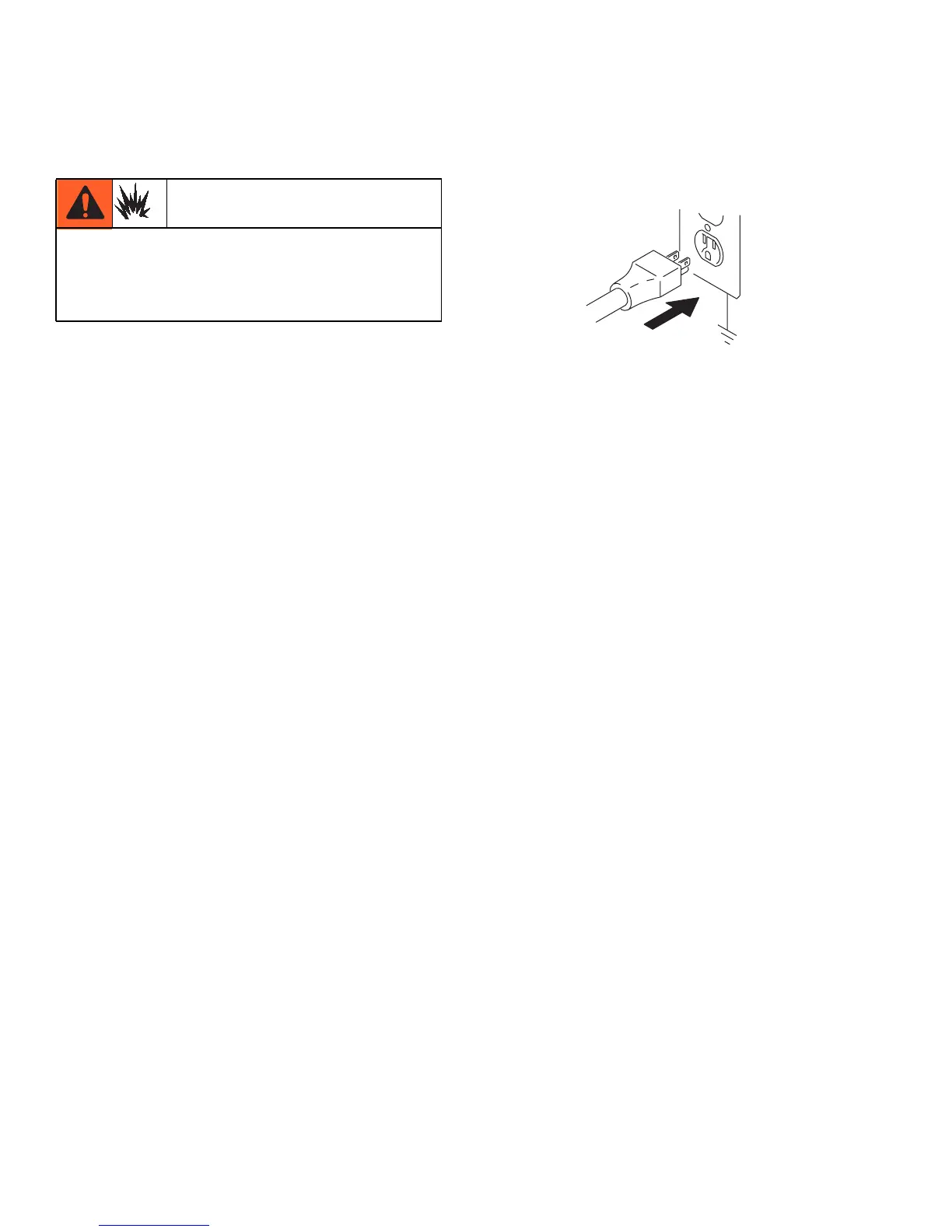

Grounding
10 311365H
Grounding
1. Ultra Max II 695, 795 and 1095 100-200 Vac
models require a 50/60 Hz, 15A circuit with a
grounding receptacle. Ultra Max II 1595/Mark V
120 Vac models require a 50/60 Hz 20A circuit
with a grounding receptacle; 220-240 Vac
models require a 50/60 Hz, 10A circuit with a
grounding receptacle.
2. Do not alter ground prong or use adapter.
3. 120 Vac: A 12 AWG, 3 wires with grounding
prong, 300 ft (90 m) extension cord may be
used. 220-240 Vac: You may use a 3-wire, 1.0
mm (12 AWG) (minimum) extension cord up to
90 m long. Long lengths reduce sprayer
performance.
Improper installation or alteration of grounding
plug results in risk of electric shock, fire or
explosion that could cause serious injury or
death.
ti2810a

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Graco ultra max ii and is the answer not in the manual?

Graco ultra max ii Specifications

General IconGeneral
Max Pressure3300 PSI
MotorOilless, axial cam
SeriesUltra Max II
Power SourceElectric
Voltage120V
Hose Length50 ft
TypeAirless
Max Tip Size0.017 inches
Spray Tip Size0.009 - 0.017 inches
