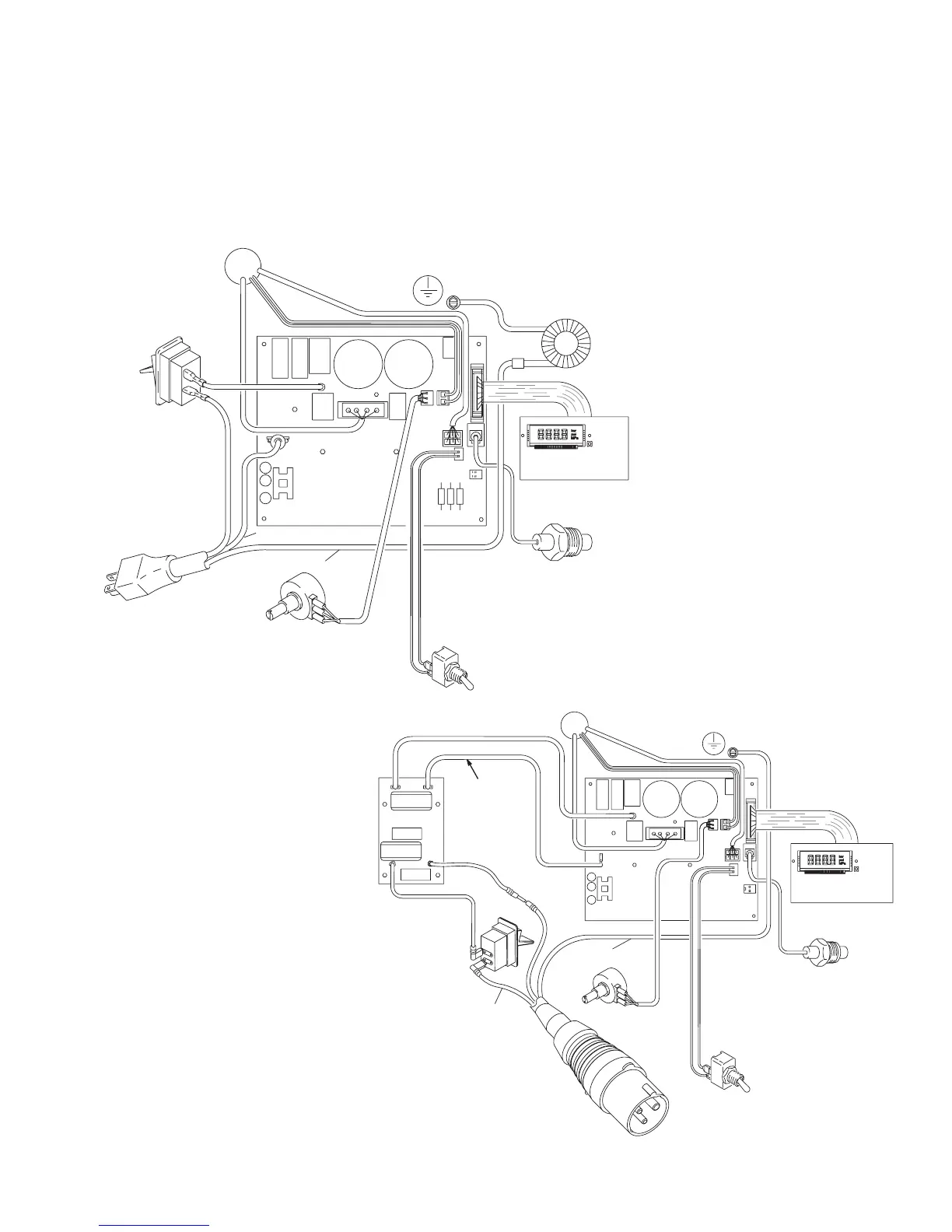

Wiring Diagram
311365H 45
Wiring Diagram
UltraMax II: 695/795 Lo-Boy Series B; 695 Hi-Boy Series D;
795 Hi-Boy Series C; 1095/Mark V Series B
(Models with only TWO large capacitors on control board)
Potentiometer
ON/OFF
Switch
Power Plug
Pressure
Transducer
Motor
Black +
white
green/ground
green/ground
Digital Display
Watchdog
ti7523a
Digital Display
Black
ON/OFF
Switch
Power Plug
Pressure
Transducer
Motor
Brown +
green/ground
green/ground
Black
Blue
Blue
Brown
Blue
175
Watchdog
ti7347a
Japan/Taiwan
UK
Models
Models
