Graco ultra max ii User Manual

Pressure Control Board
311365H 31

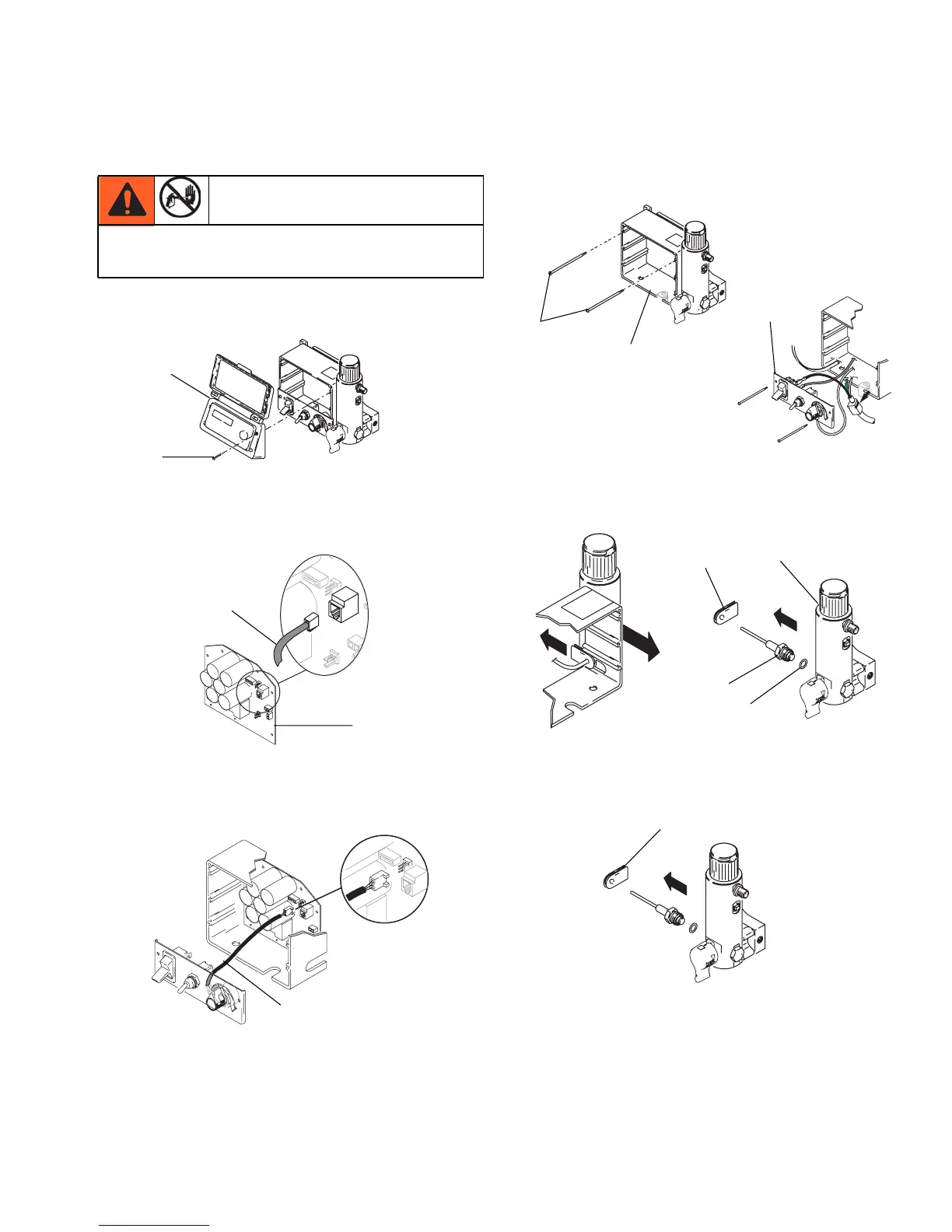

Pressure Control Transducer
Removal
1. Remove four screws (38) and cover (96).
2. Disconnect transducer connector (E) from
motor control board (95).
3. Disconnect potentiometer connector (C) from
motor control board.
4. Remove four screws (39) and control box (61).
Allow control panel (68) to hang down freely.
5. Remove grommet (40) from control box then
remove transducer (86) and o-ring (20) from
filter base (67).
6. Remove grommet (40) from transducer and
save for reuse.
Relieve pressure; page 9. Wait 5 minutes before
servicing.
38
96
ti13493a
E
95
ti12999a
C
ti12997a
ti7458a
39
61
68
ti13494a
67
86
20
ti7260a
40
ti13495a
40
ti13495a

Graco ultra max ii Specifications

General

Max Pressure	3300 PSI
Motor	Oilless, axial cam
Series	Ultra Max II
Power Source	Electric
Voltage	120V
Hose Length	50 ft
Type	Airless
Max Tip Size	0.017 inches
Spray Tip Size	0.009 - 0.017 inches
