Graco ultra max ii User Manual

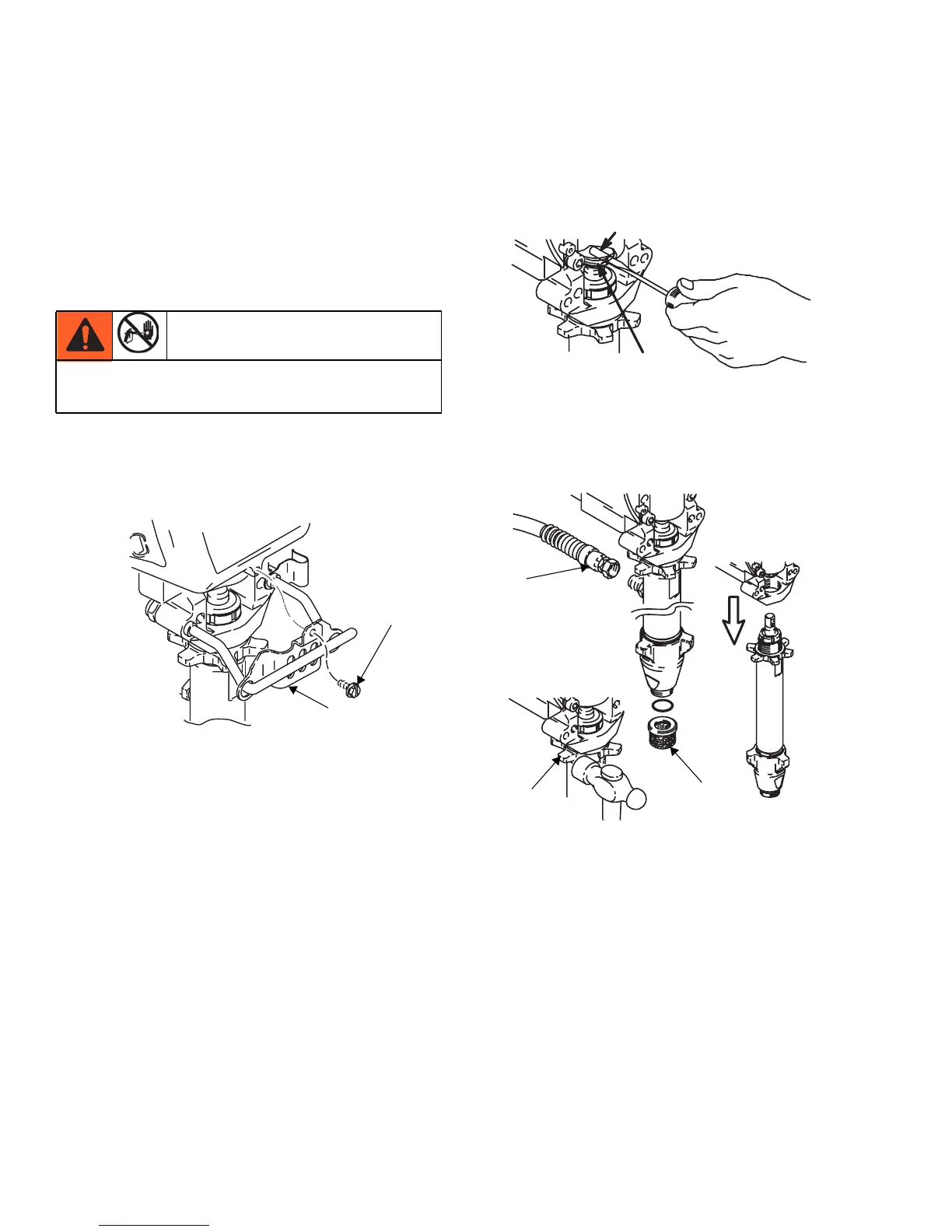

Displacement Pump Replacement for 695/795
38 311365H
Displacement Pump Replacement for 695/795
See pump manual 310643 or 310894 for pump
repair instructions.
See manual 311362, 311363, or 311364 for
applicable sprayer part number references.
Removal
1. Flush pump.
2. Remove screw (31) and slide pump rod shield
(108) forward.
3. Cycle pump in JOG mode until pump pin (44) is
in position to be removed. Turn power switch
OFF and unplug power cord. Push up retaining
ring (43) and push pump pin out.
4. Remove suction tube (76), hose (94) and any
washers and o-rings.
5. Loosen pump jam nut (56). Unscrew pump.
Relieve pressure; page 9. Wait 5 minutes before
servicing.
ti7170a
108
31
ti7168a
43
44
ti7167a
94
76
56

Graco ultra max ii Specifications

General

Max Pressure	3300 PSI
Motor	Oilless, axial cam
Series	Ultra Max II
Power Source	Electric
Voltage	120V
Hose Length	50 ft
Type	Airless
Max Tip Size	0.017 inches
Spray Tip Size	0.009 - 0.017 inches
