Graco ultra max ii User Manual

Displacement Pump Replacement 1095/1595/Mark V
311365H 41

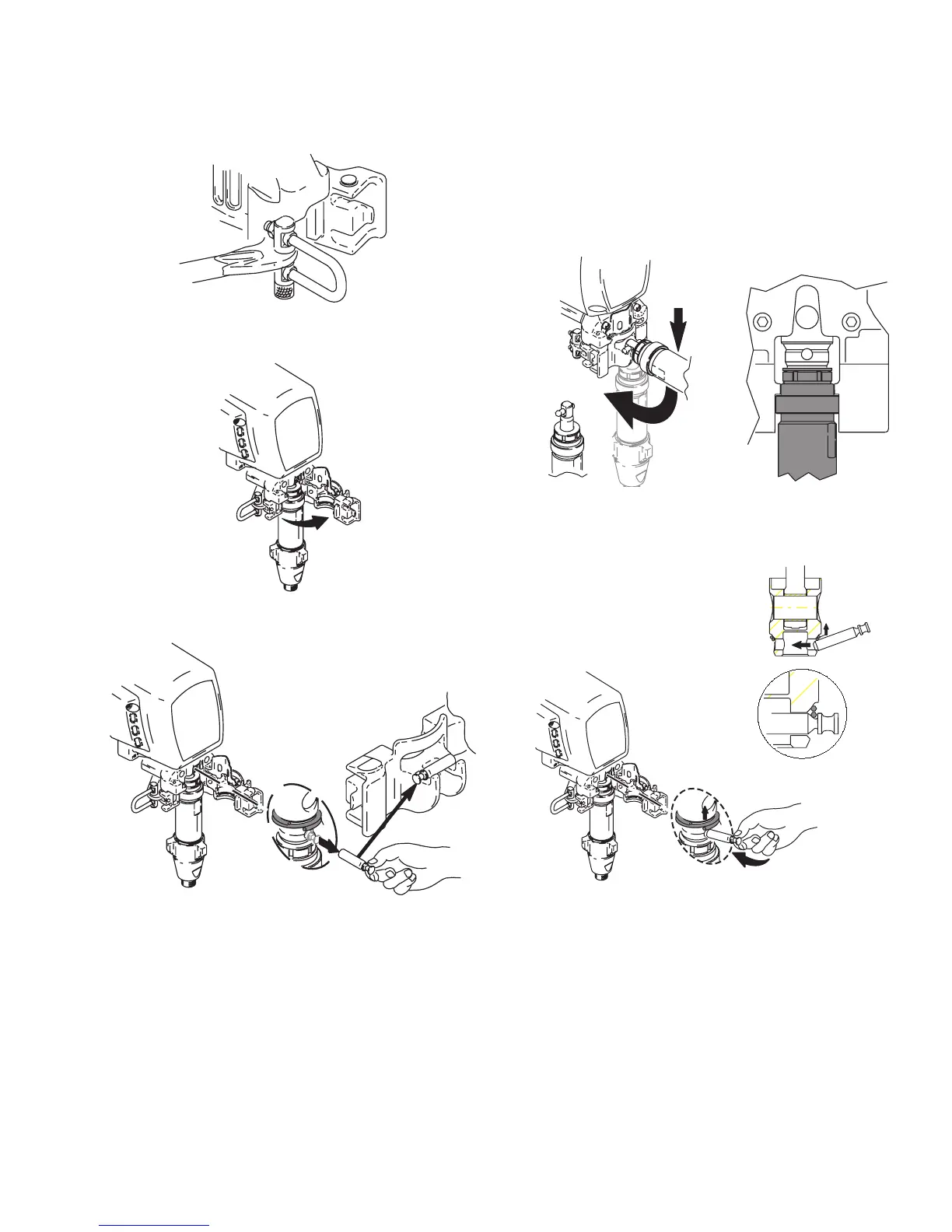

8. Ratchet pump door forward.
9. Open pump door.
10. Pull out pump pin and place in pin holder.
Installation
1. Adjust piston rod with pin holder to pull out
piston rod. Tap piston rod on hard surface to
push in piston rod.
2. Push pump collar flush with bearing housing
ledge to be able to close pump door.
3. Slide pump into connecting rod. Push pump pin
until it is fully retained.
Note: Pin will snap into position.
ti6377a
ti7331a
ti7327a
ti6325a
ti5492a
ti7328a
ti6378a

Graco ultra max ii Specifications

General

Max Pressure	3300 PSI
Motor	Oilless, axial cam
Series	Ultra Max II
Power Source	Electric
Voltage	120V
Hose Length	50 ft
Type	Airless
Max Tip Size	0.017 inches
Spray Tip Size	0.009 - 0.017 inches
