Displacement Pump Replacement 1095/1595/Mark V
40 311365H
Displacement Pump Replacement 1095/1595/Mark V

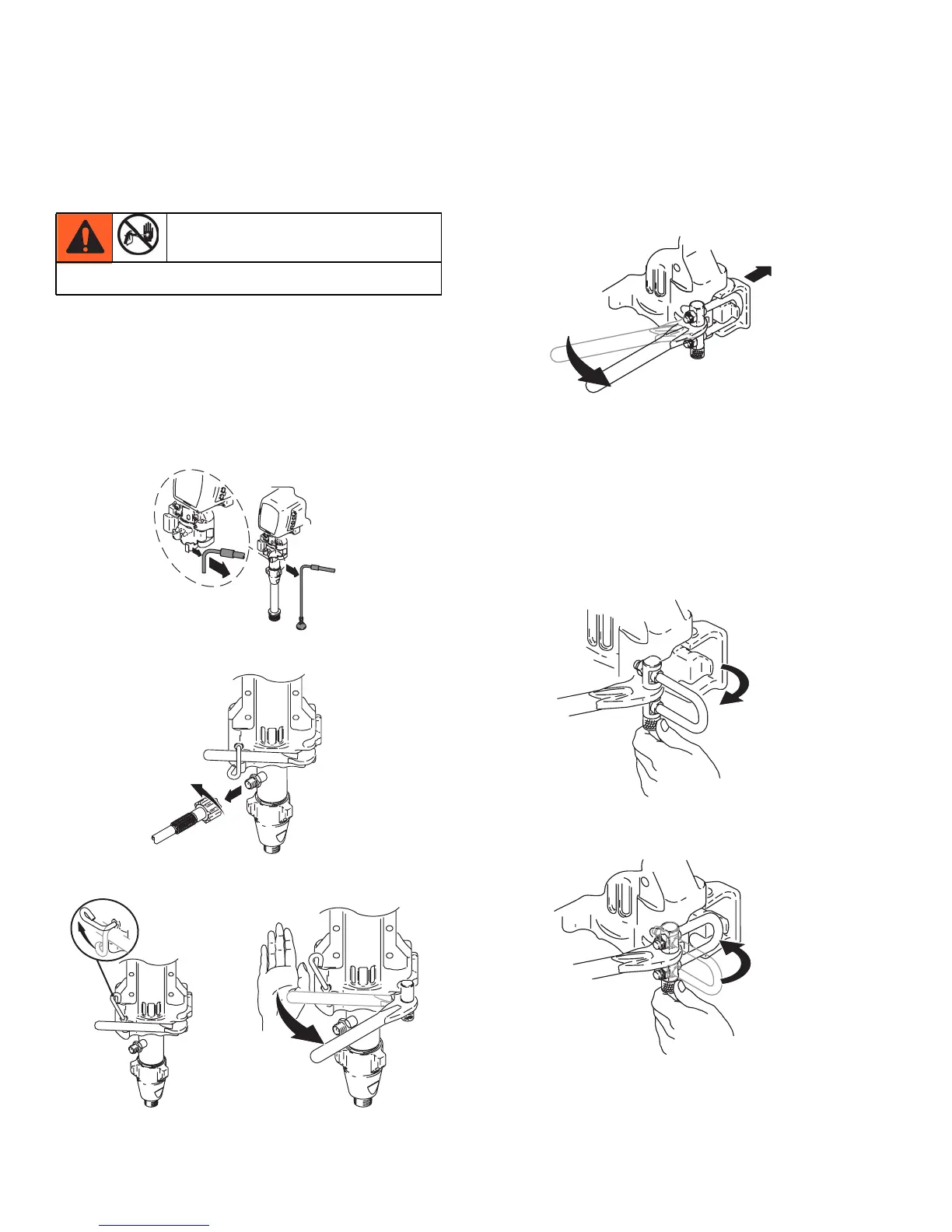

Removal
1. Flush pump.
2. Stop pump with piston rod in its lowest position.
3. Do Pressure Relief, page 9.
4. Separate drain hose from sprayer.
5. Disconnect paint hose from pump.
6. Raise latch lock. Push latch open.
7. Ratchet open pump door.
a. Ratchet pump door forward.
b. Twist latch u-bolt out of pump door recess.
c. Place u-bolt on pump door outer edge.
d. If pump door is stuck, do steps e, f, and 8,
otherwise go to step 9.
e. Twist latch u-bolt back from pump door
outer edge
.
f.
Place u-bolt on pump door protrusion.
See Skin Injection Hazard; page 6.
ti7326a
ti6300a
ti6369a
ti6370a
ti6373a
ti6374a
ti6375a
