The digital display
Start-up
• Parameter setting
Gives access to the cabinets congurable parameters, such as
alarms, test program and sensor values.
• Defrost
Defrost in progress.
• Key pad lock
Keypad is locked, no access to functions or menus.
• Temperature setting
Setting of temperature setpoint and navigation in the menus.
• Standby
Turn the cabinet On or Standby, and navigation in the menus.
O-1*: Standby
Press to turn the cabinet on. Press for 6 seconds to turn
the cabinet o. The software version of the cabinet will be shown
when turning the cabinet on, followed by the software variant. The
cabinet is ready when the temperature is displayed.
The cabinet will always commence operation when initially
connected to a power supply. For instance after a power outage or
when plugging the cabinet in for the rst time.
All-round introduction to navigating the menu
Beyond setting the temperature and Standby, ,
, and is used to navigate the menus and
set the parameters for the cabinet.
The buttons have following functions in the menus:
Open a menu step/conrm a set value in the
parameter settings.
Scroll upwards in a given menu/raise a given value
in parameter settings (alarm limit for instance).
Scroll downwards in a given menu/lower a given
value in parameter settings (alarm limit for instance).
Go a menu step back.
O-2*: Temperature setting
Temperature adjustments are done by holding and pressing
either or . Conrm the settings by letting go of the buttons.
Make sure the cabinet is switched o at
the socket before service is performed
on electrical parts.
It is not sucient to switch o the
cabinet on the key, as current will
persist in some electrical parts of the
cabinet.
If fuses or similar are to be replaced,
the cabinet must be moved to a no-risk
area.
ATTENTION –
High and low temperature alarms set
up in the cabinets’ controller (including
EAL alarms) must be accompanied by
additional redundant independent
external alarms to ensure maximum
item safety.
WARNING –
DO NOT OPEN, MAINTAIN OR SERVICE
IN AN AREA WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
*): Paragraph designation (O-1, O-2 etc) refers to the OQ (Operation Qualication)

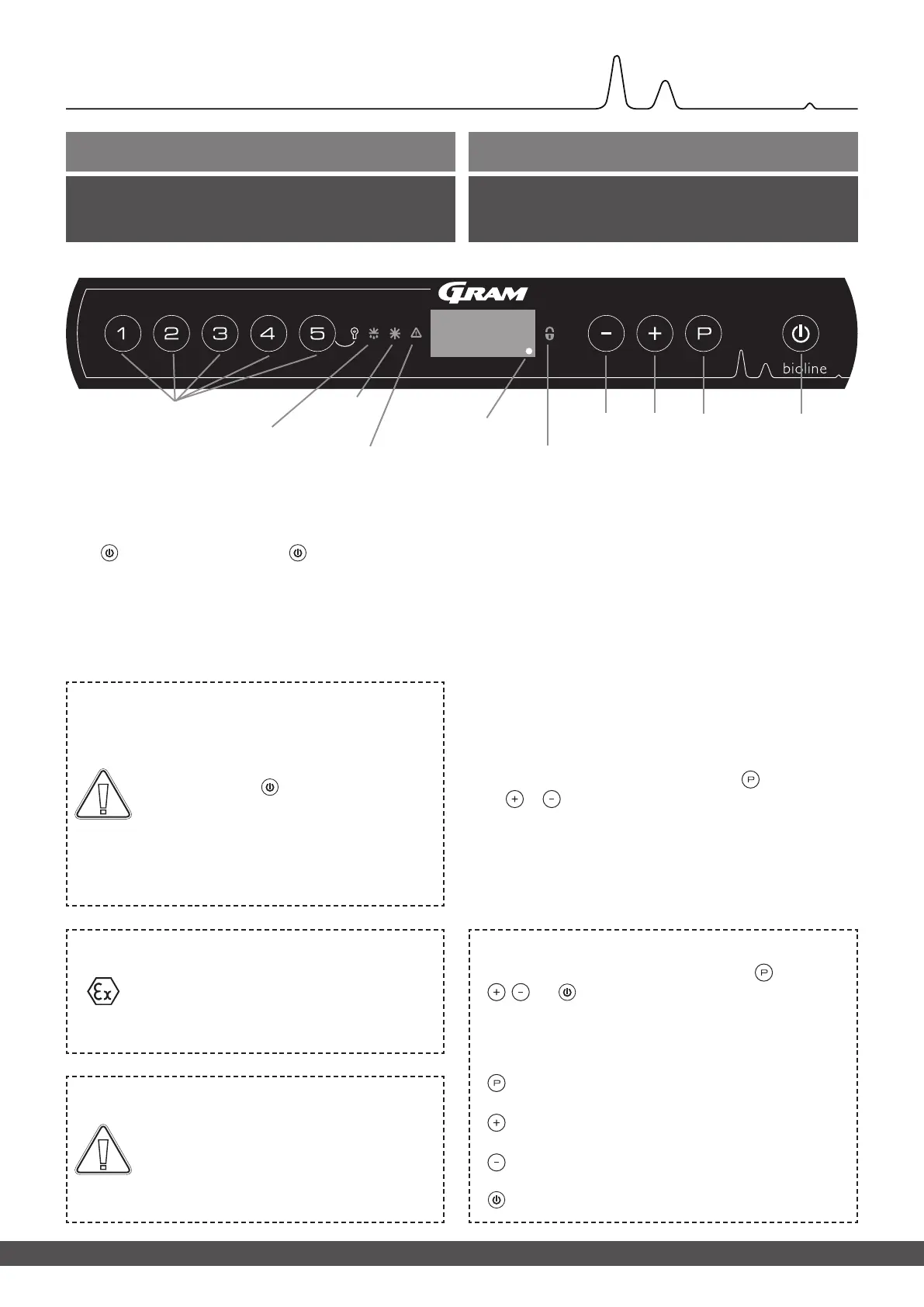

Temperature settings Standby
Parameter settings
Defrosting
Key pad lock is
activated
N/A
Alarms A2, A3, A4, A5
Standby indicator
