BioCompact II 610
BioCompact II 210, 310, 210/210, 310/210, 410
23
22
b i o l ine
When setting up in an ordinary scenario that is not subject
to regulations for EN 60079-15 zone 2
The appliance may be connected in accordance with applicable
local heavy current regulations.
Note that there are special regulations for products
that are in accordance with EN 60079-15 zone 2 and
EN 60079-14: Explosive atmospheres – Electrical
installations design, selection and erection.
The appliance has been manufactured in accordance with
EN 60079-15: Electrical apparatus for explosive gas
atmospheres – Part 15: Type of protection II 3G Ex ec nC ic IIB
Tx Gc. Zone 2 is the applicable zone.
If the appliance is to be installed in a zone 2 environment,
specialist personnel should perform the installation, or be
consulted beforehand, in order to ensure that the appliance is
installed in compliance with the guidelines currently contained
in the standard.
I-19*: The cabinet is intended for connection to alternating
current.The connection values for voltage (V) and
frequency (Hz) are given on the type/number plate.

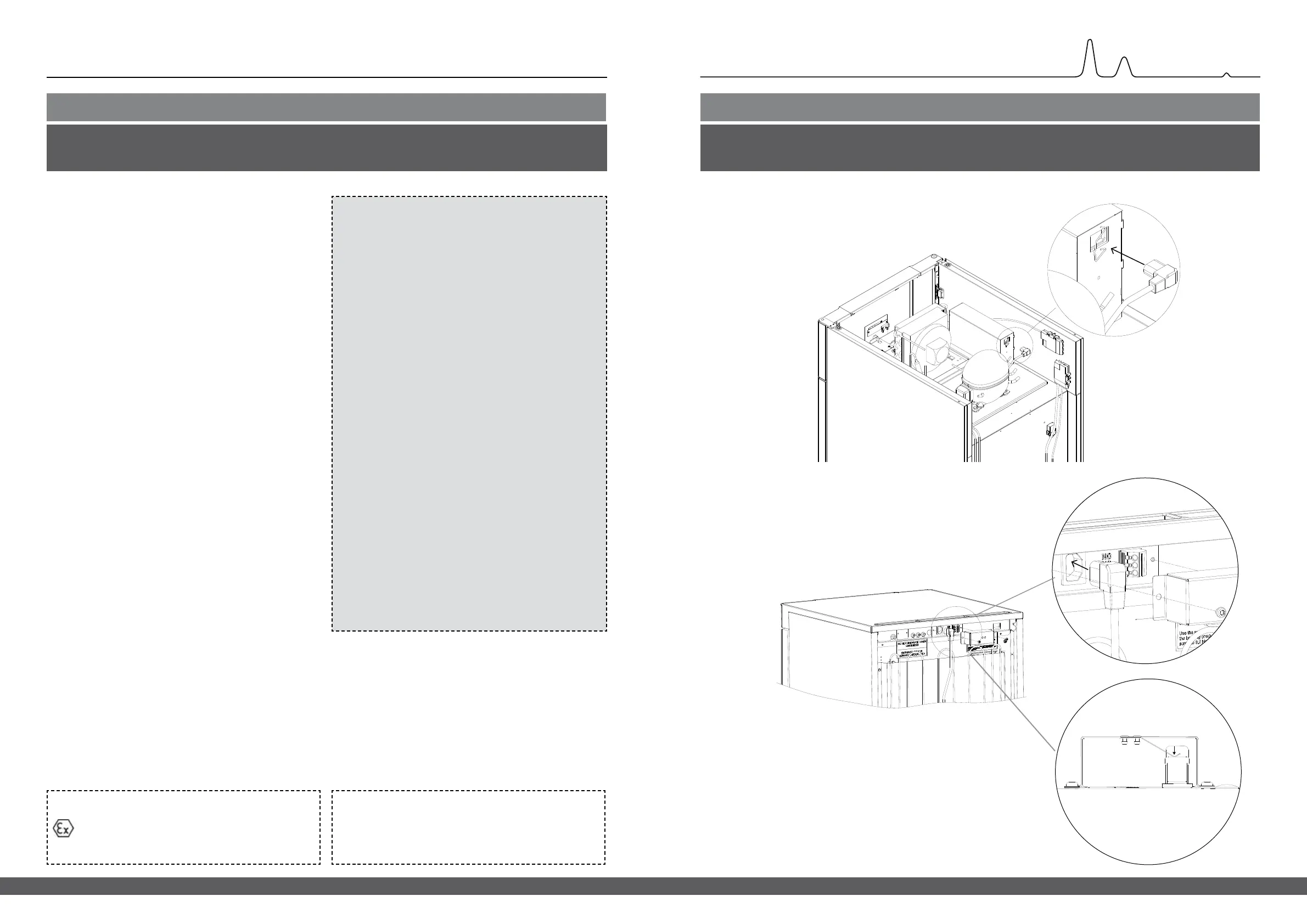

I-20-1*: BioCompact II 210, 310, 210/210, 310/210, 410
The mains terminal is accessed via the preload cover
on the back of the cabinet. Unscrew the preload cover
to access the mains supply terminal.
Ensure that the preload cover is reinstalled after
plugging in the power cord. The leaf spring in the
preload cover must engage and preload the plug of
the cord as shown in the illustrations below.
I-20-2*: BioCompact II 610
The power cord is plugged in the terminal box on the
back of the cabinet. The plug is then xated in place
by the hanger that is built into the terminal box.
Please note that the hanger should be tted tightly
around the plug, as shown.
In all cases, ensure that the mains plug is seated
completely in the terminal on the cabinet.
The appliance must be connected to the external
power supply using a suitable device which
mechanically prevents the plug and socket from
being separated unintentionally.
I-21*: The connection must be labelled:
”DO NOT SEPARATE WHEN ENERGIZED”
Read the following part thoroughly before connecting the cabinet. Contact a qualied electrician if in doubt.
Connection to power
Fuses and similar must never be removed or replaced while
the appliance is connected to a power source. The electrical
terminal box must never be opened while the appliance is
connected to a power source.
The compressor starting equipment must never be
dismantled while the appliance is connected to a power
source.
Whenever electrical components are dismantled or
replaced, the appliance must be moved to an area in
which there is no risk of ignition caused by the electrical
components or gases contained in the appliance.
Never use the cabinet if the plug is damaged. The cabinet
should be examined by a Gram BioLine service technician in
such cases.
When setting up in an ordinary scenario that is not
subject to regulations for Zone 2: The appliance may be
connected in accordance with applicable local heavy current
regulations.
In both cases
Use a three-wire plug, if the power outlet is intended for a
three-wire plug, a the lead in green/yellow insulation should
be connected to the ground terminal.
Power must be connected via a wall socket. The wall socket
should be easily accessible.
All earthing requirements stipulated by the local electricity
authorities must be observed. The cabinet plug and wall
socket should then give correct earthing. If in doubt, contact
your local supplier or authorized electrician.
ATTENTION
For Ex environments –
Special conditions for safe use may apply to
this product when installing in an EN 60079-14
environment. Please see corresponding
Ex certicate for specications.
Technical Support –
In the event of technical diculties always contact
Gram BioLine technical support or a Gram BioLine
authorized service partner. Never dismantle the
terminal box or any other elctrical component.
*): Paragraph designation (I-1, I-2 etc) refers to the IQ (Installation Qualication)
