GWN7000 Controller
GWN76xx Wireless AP Management & Provisioning
CONNECTING AND ACCESSING THE GWN7XXX
Connecting the GWN7000 and GWN76xx
To set up the GWN7000 and the GWN76xx, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN1 or/and WAN2 port(s) of the GWN7000.
2. Connect the other end of the Ethernet cable(s) into a DSL modem or router(s).
3. Connect the 12V DC power adapter into the power jack on the back of the GWN7000. Insert the
main plug of the power adapter into a surge-protected power outlet.
4. Wait for the GWN7000 to boot up and connect to internet/network. In the front of the GWN7000 the
Power LED will be in solid green, and the WAN LED will flash in green.
5. Connect one of the LAN ports to your computer, the associated LED ports will flash in green.
6. Connect LAN ports to your GWN76xx access points or/and other devices, the associated LED ports
will flash in green as displayed on the following diagram.

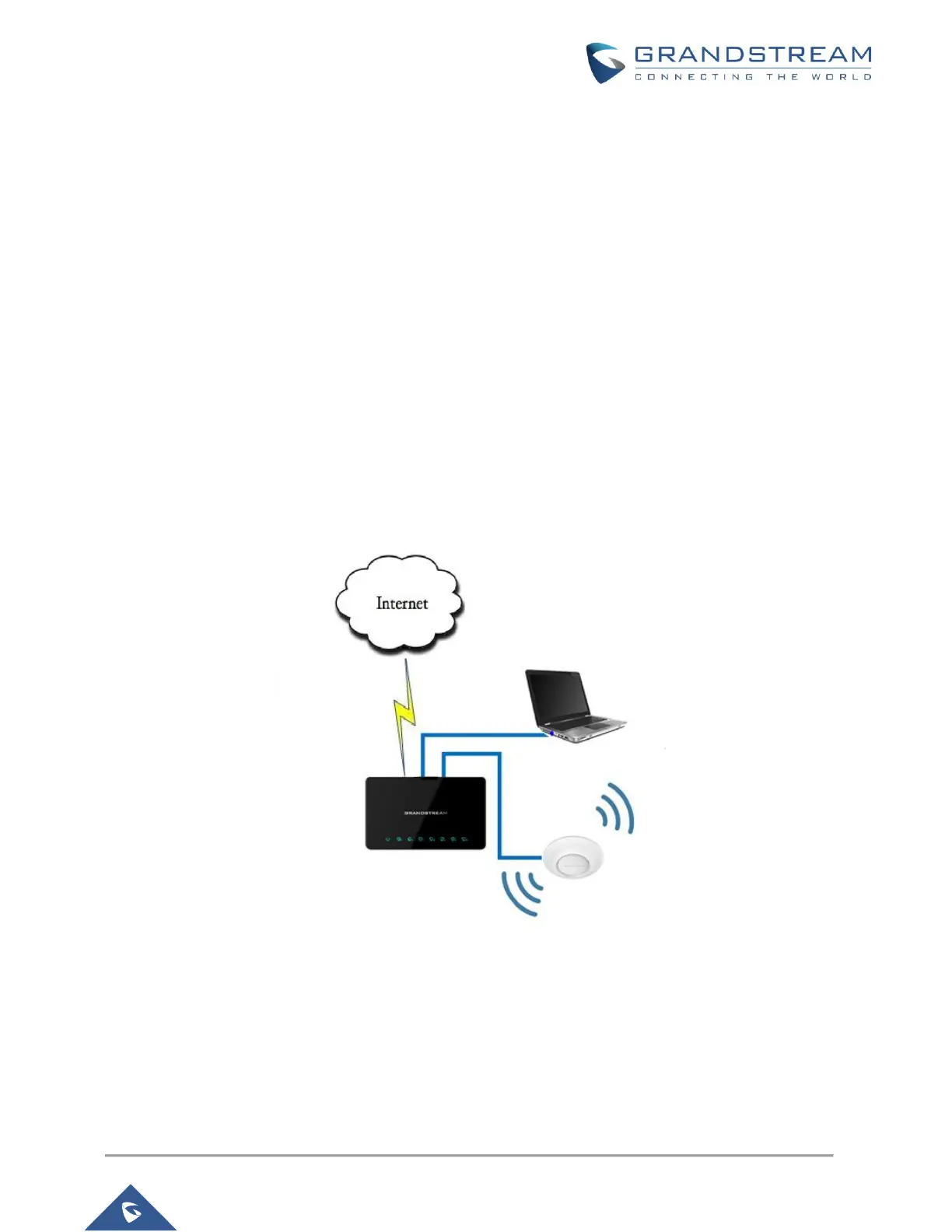

Figure 1: System Installation & Deployment
Access WEB GUI
The GWN7000 embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages
allow users to configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, Google
Chrome and etc.
