GXE502X User Manual 11/2/2009
35

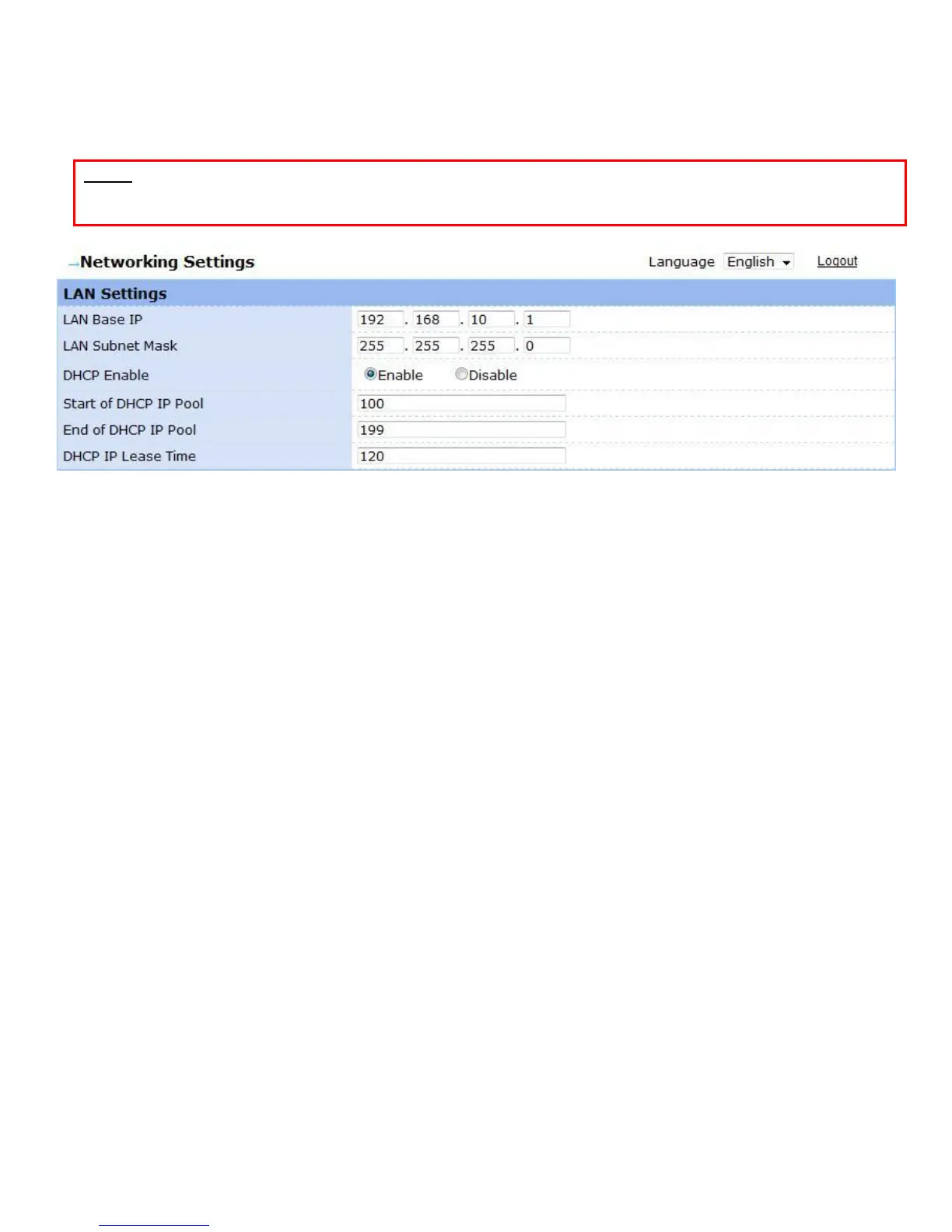

LAN Setting:
Set the LAN-port IP address by entering the IP address used as the LAN Base IP. Enter the
subnet mask in the LAN Subnet Mask setting.
Note: Please be advised that this setting should be configured prior to auto-provisioning phones through
the Express Setup menu. Otherwise the GXE502X will use an incorrect IP address for the SIP server after
the LAN-port IP address changes.
o DHCP Configuration:
To use the GXE502X as a DHCP server on the LAN-side, set the DHCP Enable setting to
Enable (It is enabled in the default settings). Users may specify the range of the IP addresses
offered by the DHCP server by setting the Start of DHCP IP Pool and End of DHCP IP Pool
settings. The DHCP IP Lease Time allows users to specify the number of hours an IP address
is leased to a device before renewal.
WAN Setting:
o The WAN-port can be configured to be dynamically assigned via DHCP, to use PPPoE, or
to be static. Select the radio button beside the option that you wish to use. To use PPPoE,
enter the PPPoE account, password and DNS server information provided by the ISP in the
provided fields. If statically configuring the WAN-port IP address, please enter the IP
address details from the ISP in the provided fields.
