GXE502X User Manual 11/2/2009
37
Enable and setting the DDNS ISP type, site name, and account and password in the
provided fields. If you are not using Dynamic DNS, set the DDNS Active setting to Disable.
Layer 3 QoS: This enables Layer 3 QoS differentiated services or precedence values for the
voice packets coming out of the GXE.

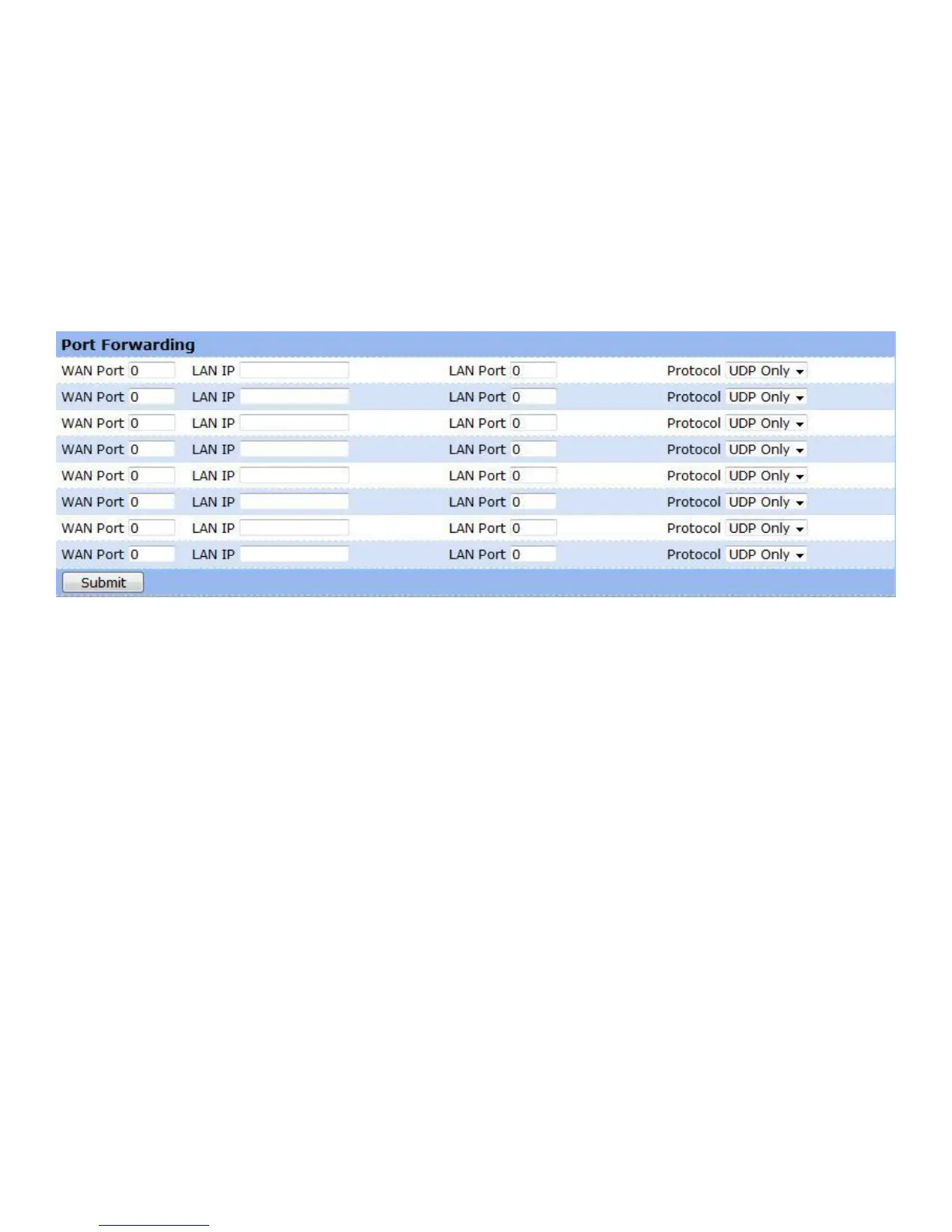

o Configuring port forwarding:
The GXE502X can be configured to perform port forwarding. In the Port Forwarding
settings, enter the port to forward from the WAN-side, the LAN-side device IP address to
forward to, the LAN-side device port to forward to, and the protocol (TCP, UDP, or both) to
forward in the respective fields.
When done, click on the Submit button to save your changes.
- Route Configuration
This sub menu is used to add static routes into the routing table. This feature is useful when there are
destinations that cannot be reached using the default gateway or when there are several subnets in
your local network. The interface can accept a network or host address to route. For example:
Network=192.168.22.0/24 can be reached through router 192.168.1.50, then:
Destination IP: 192.168.22.0
Mask: 255.255.255.0
Gateway: 192.168.1.50
Static route to host 192.168.22.5 through router 192.168.1.50 then:
Destination IP: 192.168.22.5
Mask: 255.255.255.255
Gateway: 192.168.1.50
