GXP21XX Administration Guide

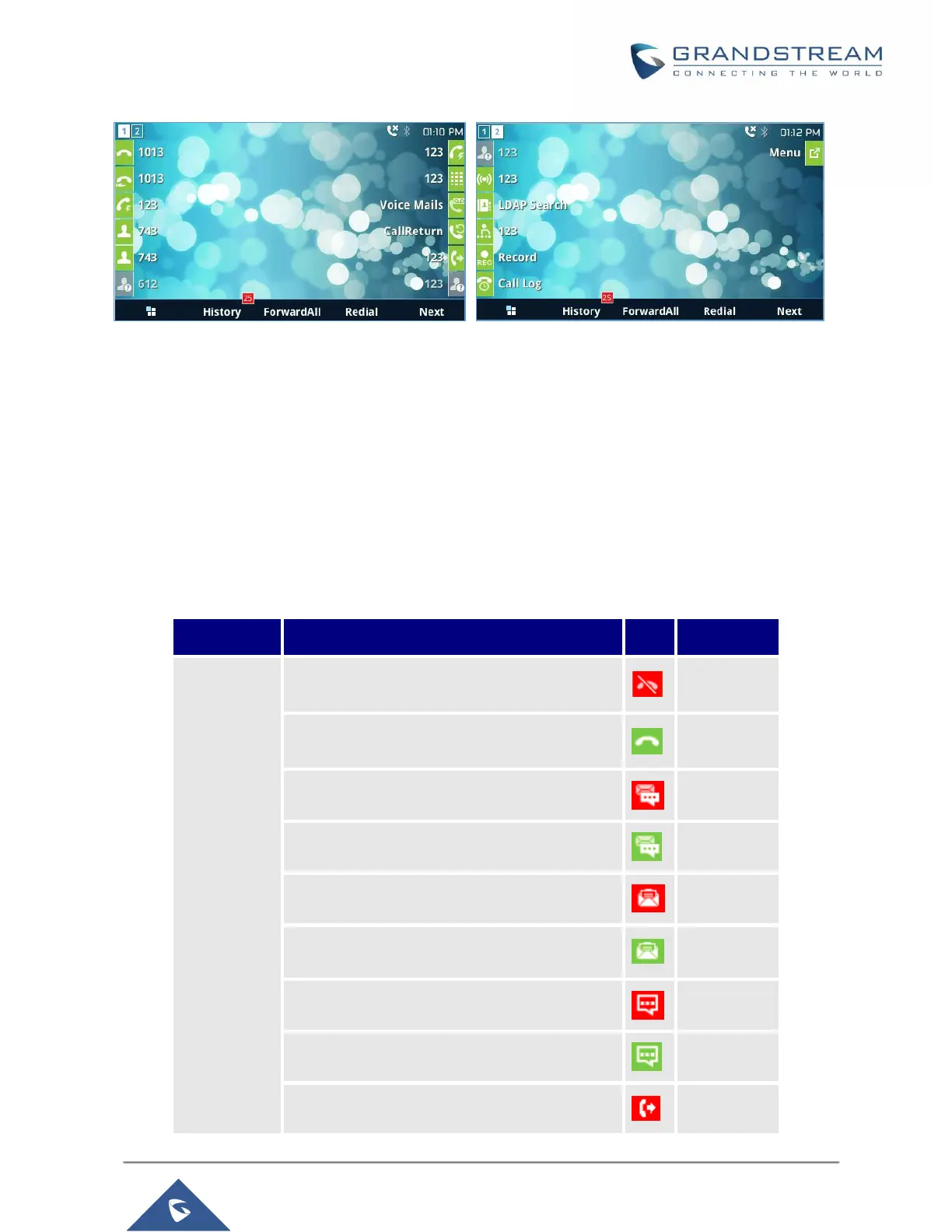

Figure 33: VPK – LCD Indication
The users could also edit and add VPK from LCD.
1. To edit (fixed) VPK, press and hold the line key for about 4 seconds, a configuration window will pop
up for the user to configure.
2. To add (dynamic) VPK, press and hold the RIGHT arrow key for about 4 seconds, a configuration
window will pop up for the user to configure.
Up to 20 modes can be supported on fixed VPK and up to 17 modes can be supported on dynamic VPK.
Each mode is indicated by a different icon on the LCD and the icon will be different when in different status.
Please find the icon indications below for different mode of VPK.
Table 25: VPK Modes Icon Indications
VPK Mode
State
Icon
LED Status
LINE
Unregistered
(No IM, Voice mail, No Call Forward)
OFF
Registered + Idle
(No IM, Voice mail, No Call Forward)
OFF
Unregistered + IM + Voice mail
OFF
Registered + IM + Voice mail
OFF
Unregistered + IM (No Voice mail)
OFF
Registered + IM (No Voice mail)
OFF
Unregistered + Voice Mail (No IM)
OFF
Registered + Voice Mail (No IM)
OFF
Unregistered + Call Forward All
(No IM, No Voice Mail)
OFF
