Call on Hold.
OFF – No call on hold
ON – Call on hold
Call Connect.
OFF – No call
ON – Call connected
Call Conference.
OFF – No Conference call
ON – Conference call is established
Click Hand
In call screen, this icon shows on the line available for transfer or conference.
IP Call Status
The current call is an IP call.
SIP Call
Enter number for initiate call. The current call is a SIP call.
Call Time
During an active call, this icon shows the call time.
LCD Brightness Up
Brightness is increasing
LCD Brightness Down
Brightness is decreasing
Speaker Volume Up
Call screen icon. Speaker volume is increasing
Speaker Volume Down
Call screen icon. Speaker volume is decreasing
Handset Volume Up
Call screen icon. Handset volume is increasing
Handset Volume Down
Call screen icon. Handset volume is decreasing
Ringtone Volume Down
Call screen icon. The volume of ringtone is decreasing
Ringtone Volume Up
Call screen icon. The volume of ringtone is increasing
VOC status
Call screen icon.
OFF – VOC is off.
ON – VOC is on.

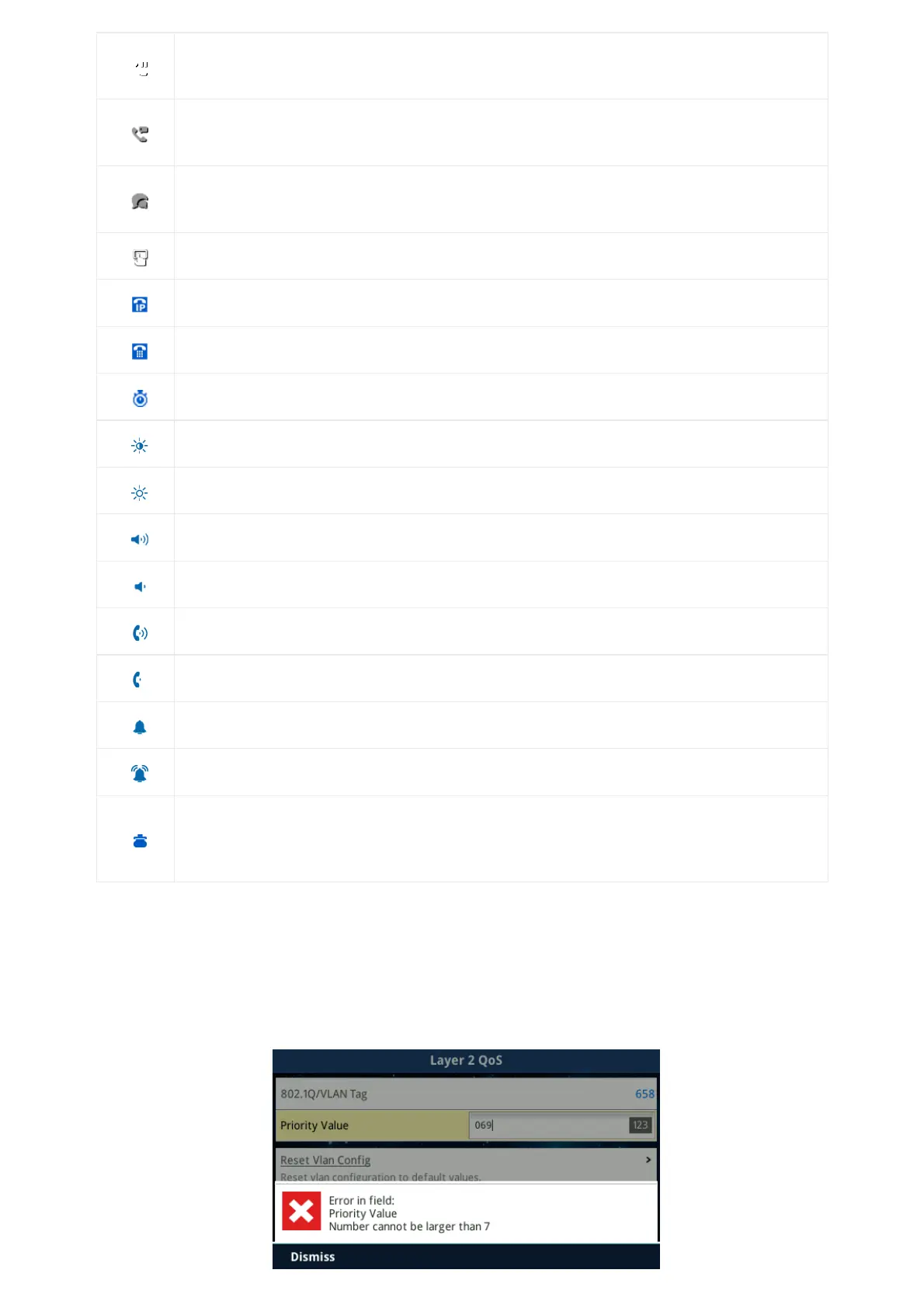

Table 12: GXP2130/GXP2140/GXP2160/GXP2170/GXP2135 LCD Icons
Error Message Indicator
When user changes configuration settings on LCD and the configuration cannot be applied for any reason, LCD screen will
pop up a window displaying an error message with information explaining why the configuration couldn’t be saved.
