FIRMWARE VERSION 1.0.9.1 GXW40XX USER MANUAL Page 10 of 60

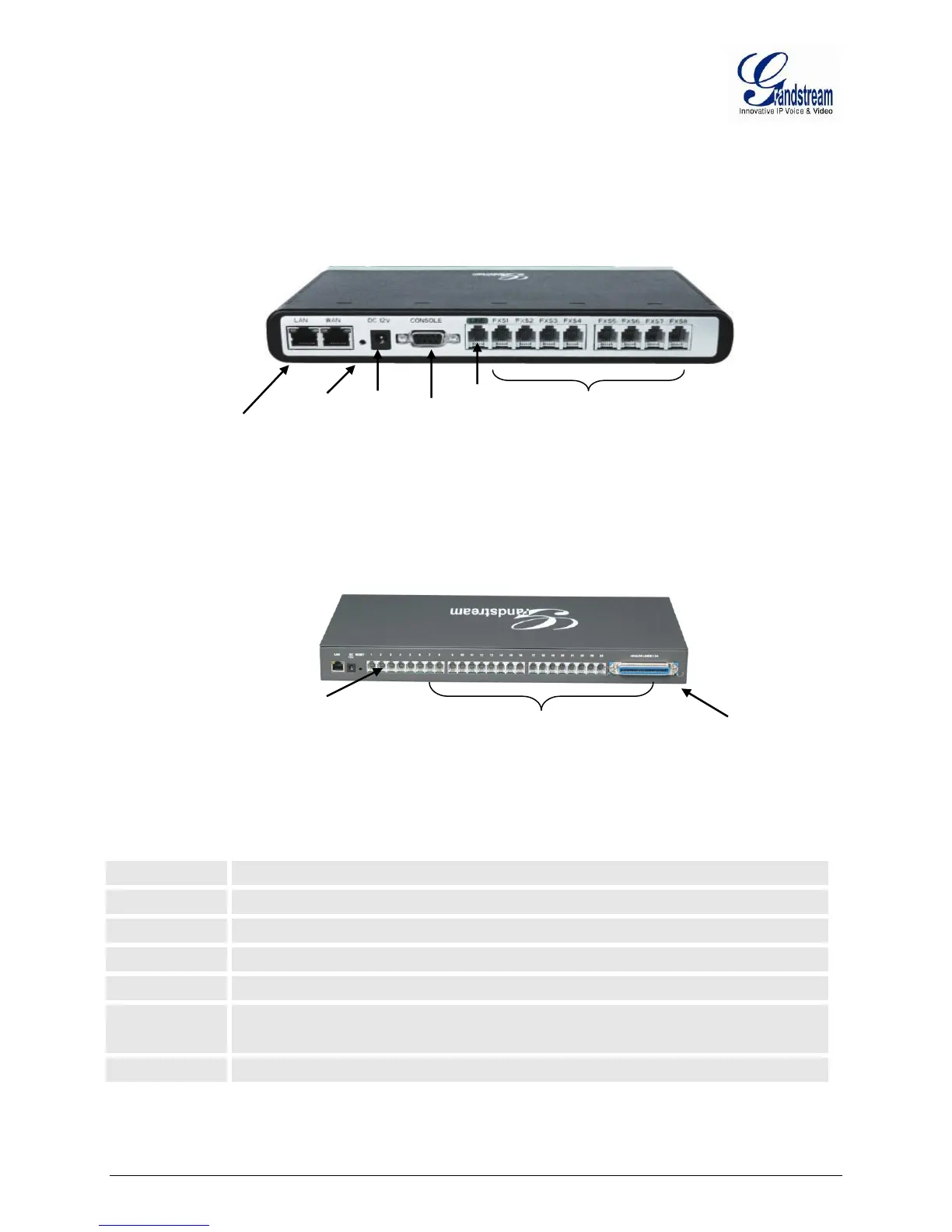

FIGURE 1: DIAGRAM OF GXW4004-8 AND GXW4024 BACK PANEL
LAN Port
TABLE 1: DEFINITIONS OF THE GXW CONNECTORS
Connect the LAN port with an Ethernet cable to your PC.
Connect to the internal LAN network or router.
Factory Reset button. Press for 7 seconds to reset factory default settings.
Console connection for a PC.
When the unit loses power or unit became unregistered, FXS port 1 will be able to
make/receive calls from the PSTN line connected to this port.
FXS port to be connected to analog phones / fax machines.
Note: Once the GXW40xx is turned on and configured, the front display panel indicates the status of the
unit.
