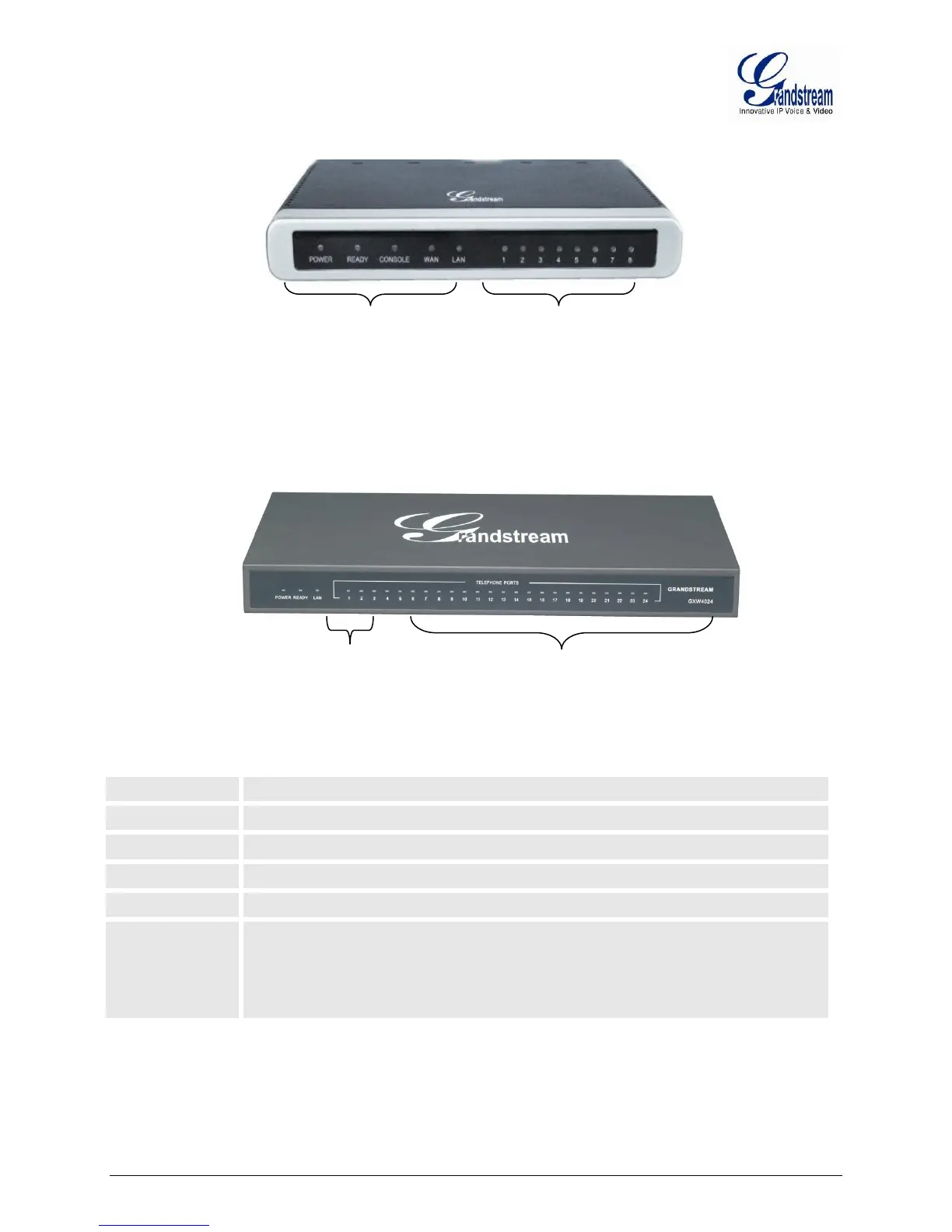

FIGURE 3: DIAGRAM OF GXW4004-8 AND GXW4024 DISPLAY PANEL
TABLE 2: DEFINITIONS OF THE GXW DISPLAY PANEL
Power LED
Indicates Power. Remains ON when Power is connected and turned ON.
Ready LED
Remains ON after boot-up.
Console
Turns ON when Console port is being used.
LAN LED
Indicates LAN (or WAN) port activity
WAN LED
Indicates PC (or LAN) port activity
LED 1–24
Indicate status of the respective FXS Ports on the back panel
Busy - ON (Solid Green)
Available - OFF
Slow blinking FXS LEDs indicates Voice Mail for that port.
NOTE:
 All LED lights display green when ON.
 Slow blinking of READY, WAN and LAN LED together indicates a firmware upgrade or
provisioning state.
FXS port
status
GXW4008
Display
LEDs
Display LEDs
FXS port status
GXW4024
