HT70X User manual
Version 1.0.9.4
HT702 HT704

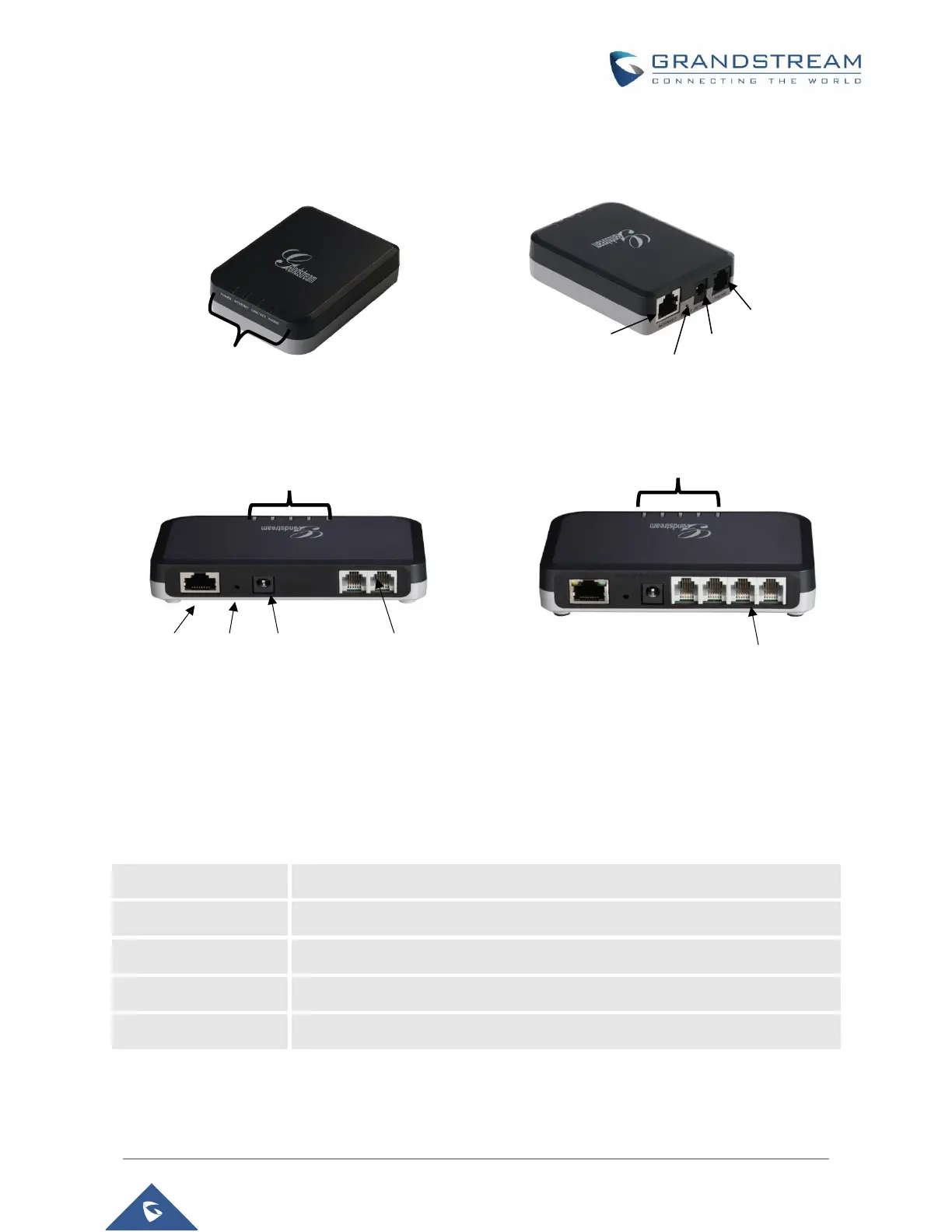

Figure 1: Diagram of HT70X
Table 1: Definitions of the HT70X Connectors
DC 12V
Power adapter connection
Internet Port (RJ-45)
Connect to the internal LAN network. (HT701 Only)
LAN Port (RJ-45)
Connect to the internal LAN network. (HT702 and HT704 Only)
RESET
Factory Reset button: Press for 7 seconds to reset factory default settings.
Phone Port(s) (RJ-11)
FXS port: to be connected to analog phones / fax machines.
There are four (4) LED buttons that help you manage the status of your Handy Tone 701, and there
are five (5) LED buttons that help you manage the status of your Handy Tone 702 and 704.
Display LEDs
Internet Port
(RJ-45 connector
10/100 Mbps)
Phone
Power
Supply
Reset
LAN Port
(RJ-45 connector
10/100 Mbps
with LEDS)
Reset
Phone (RJ-11
FXS Ports)
Display LED’s (green)
Display LED’s (green)
Power
Supply
(12V;1A)
Phone (RJ-11
FXS Ports)
HT701
