4. Power, WAN and Phone LEDs will be solidly lit when the HT812/HT814 is ready for use.

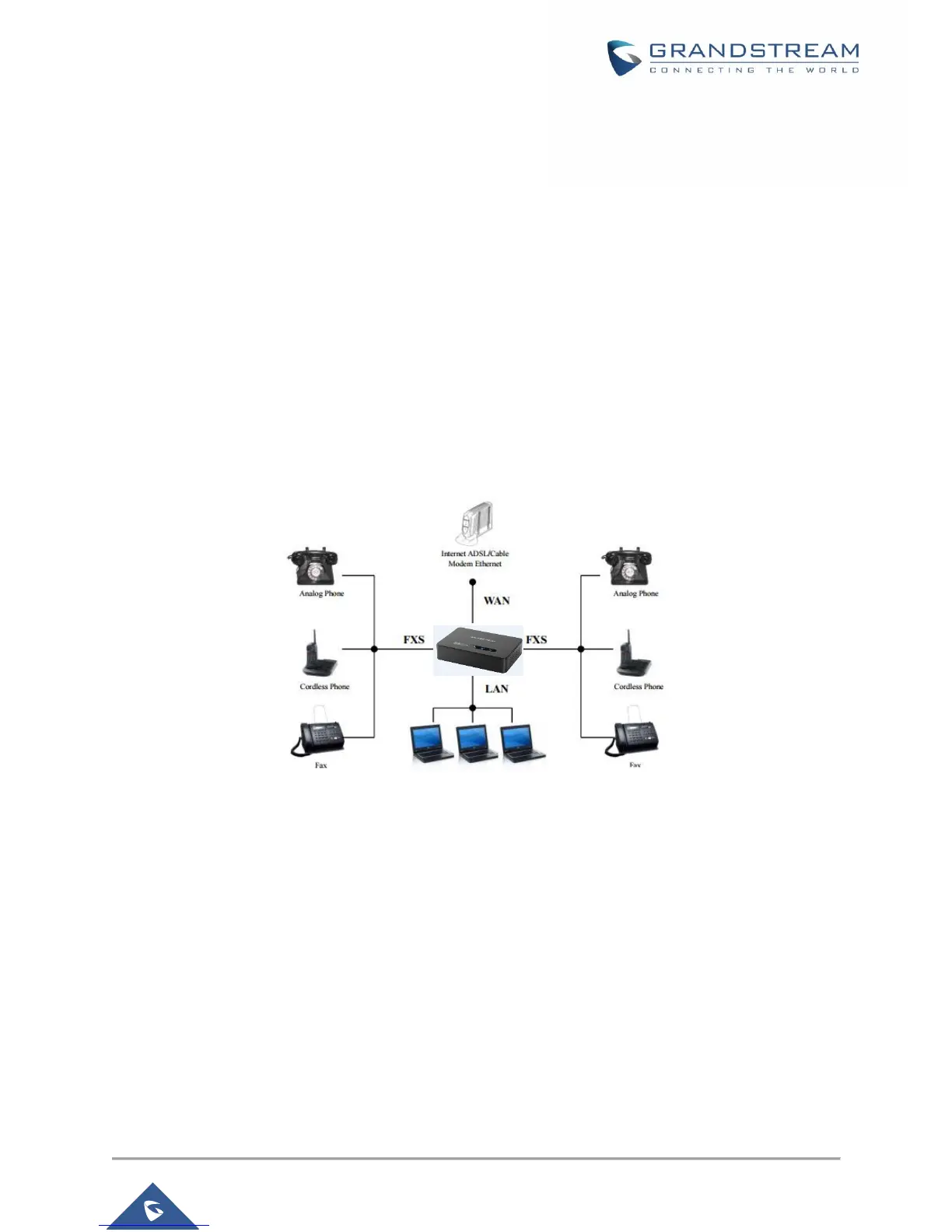

Scenario 2: Connecting the HT81x using LAN Port
When connecting the HT81x using the LAN port, it will act as a router and DHCP serving addresses, the
devices connected with HT81x LAN will pull DHCP addresses from your HT81x.
1. Insert a standard RJ11 telephone cable into the phone ports and connect the other end of the
telephone cable to a standard touch-tone analog telephone.
2. Connect a computer or switch to the LAN port of the HT-81x using an Ethernet Cable.
3. Insert the power adapter into the HT812/HT814 and connect it to a wall outlet and make sure to
respect the technical specifications of the power adapter used (12V-0.5A for HT812 and 12V-1A
for HT814).
4. Power, LAN and Phone LEDs will be solidly lit when the HT812/HT814 is ready for use.
Note: Please make sure to enable NAT Router under Web GUI -> Basic Settings -> Device Mode.
