Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 8 of 18
Detection" and turn off the "Enable Current Disconnect" option.

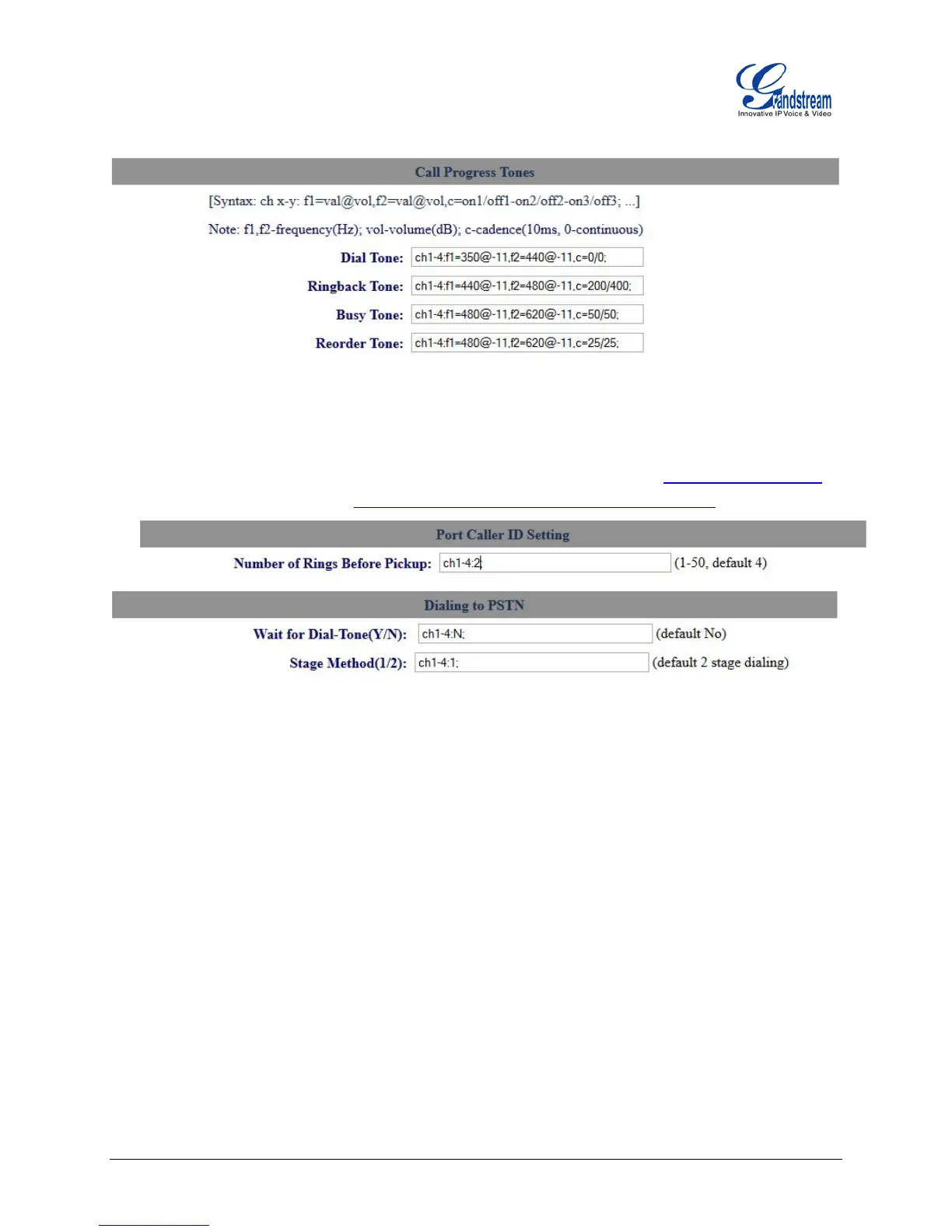

Figure 9: Method 2 - Configure FXO Port on the GXW410X: Call Progress Tones
For PSTN tone detection, the tone disconnect method is widely used everywhere else in the world.
The North American busy tone value is "f1=480@-32,f2=620@-32,c=500/500" but these tones vary
from country to country. You may look up for the settings for your country at
www.3amsystems.com or
download the information from
http://www.itu.int/ITU-T/inr/forms/files/tones-0203.pdf.
Figure 10: Method 2 - Configure FXO Port on the GXW410X: FXO Termination
• Set "Number of Rings" option to 1. If you happen to experience caller ID issue, you may set it to 2. In
the sample setup, it's set to 2.
• Set the "Wait for Dial-Tone" to "No".
• Set the "Stage Method (1/2)" to 1.
Figure 11: Method 2 - Configure FXO Port on the GXW410X: Channel Dialing
Configure Unconditional Call Forward on GXW410X
On the GXW410X web GUI, go to the SETTINGS CHANNEL SETTINGS page, configure
"Unconditional Call Forward to VOIP" to the DID number 20000. This is the same number configured in
UCM6100 inbound route dial pattern. In this example, we will use the SIP server for profile 1 (p1).
To Next Page
