Grant Aerona3 Series User Manual

Section 6: ElectricalPage 30
Manifold/additional pump
to be wired in parrallel with
MV if required
230VAC
Main supply

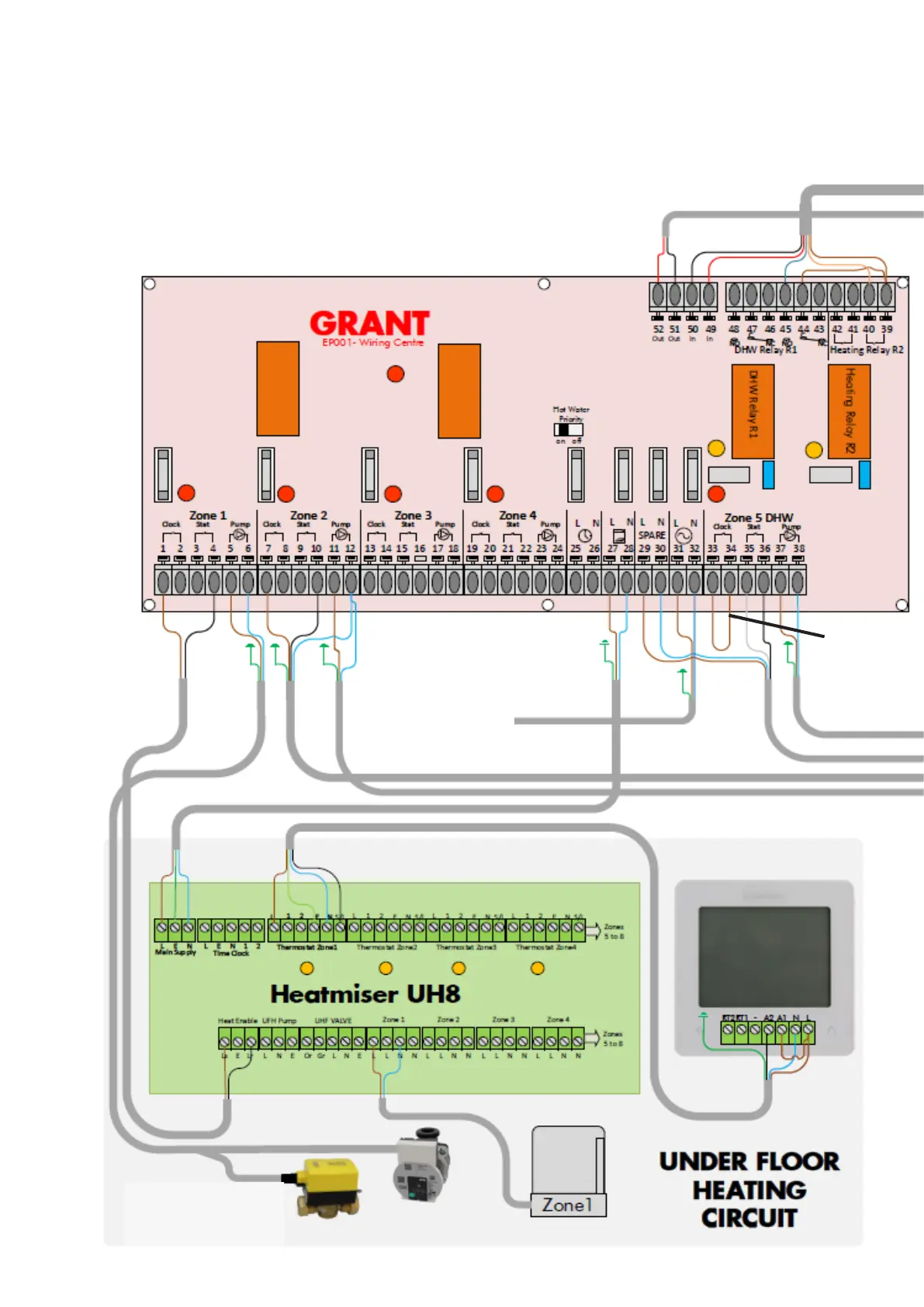

The below system diagram is only a concept drawing, not a detailed engineering
drawing,and is not intended to describe complete systems, nor any particular system.
It is the responsibility of the system designer, not Grant IRL, to determine the necessary
components for and confi guration of the particular system being designed including any
additional equipment and safety devices to ensure compliance with building and safety
code requirements.
6.11 SECOND FIX WIRING
Note: Remove
link if installing
time clock on
DHW
