Grant Aerona3 Series - Remote Controller Dimensions

Section 2: Technical DataPage 8
2.5 Remote Controller Dimensions
12
37
37
23 23
18.25
120
16.5
6-4.2×7
120
83.5 18.25
(116)
Knock out hole
Mounting plate Door closed Door open

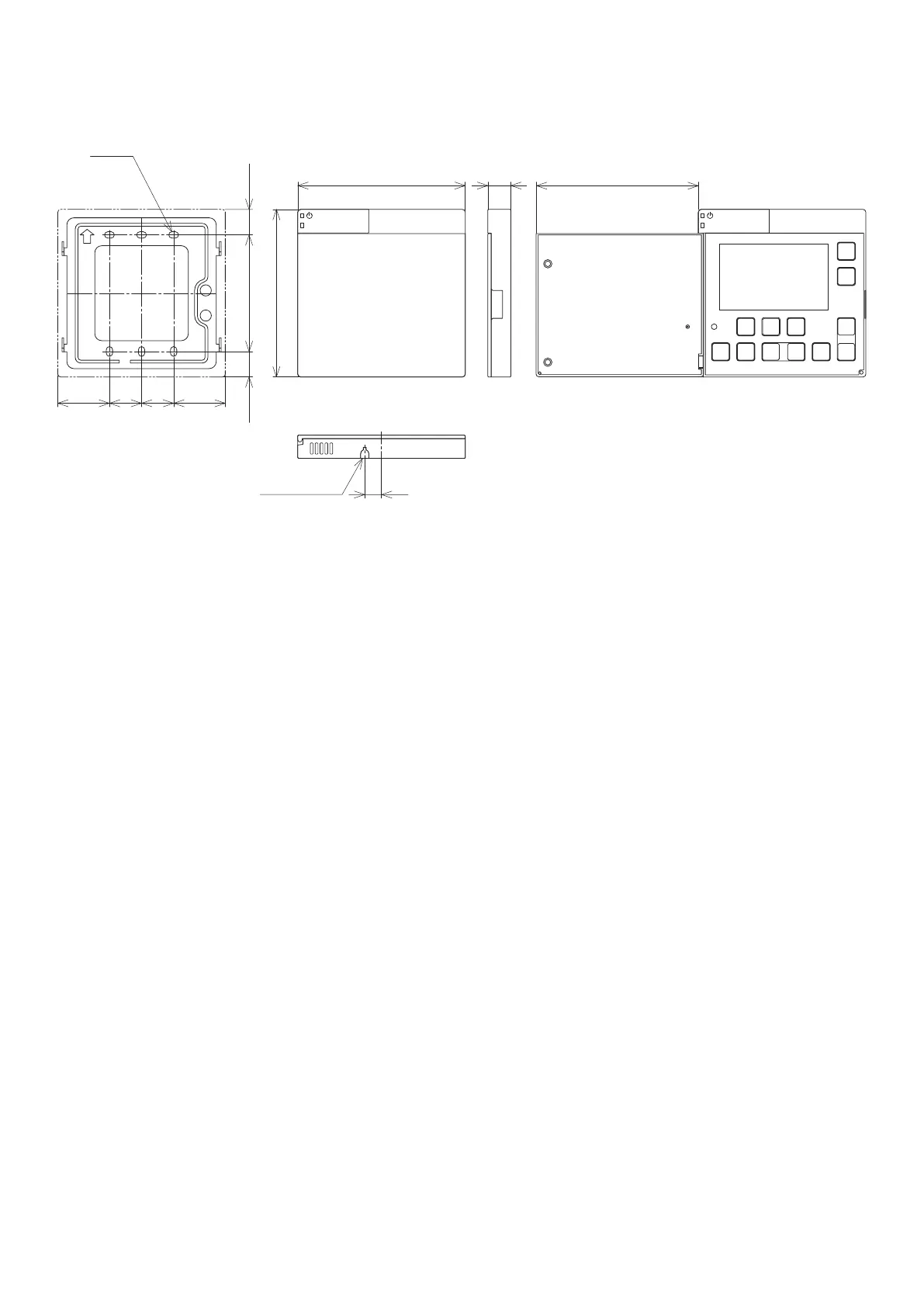

Figure 2-6: Remote controller dimensions
