GRAPHTEC FC8600-130 - Cross Cutter

FC8600-UM-251-9370 9-7
9 PARTS LIST

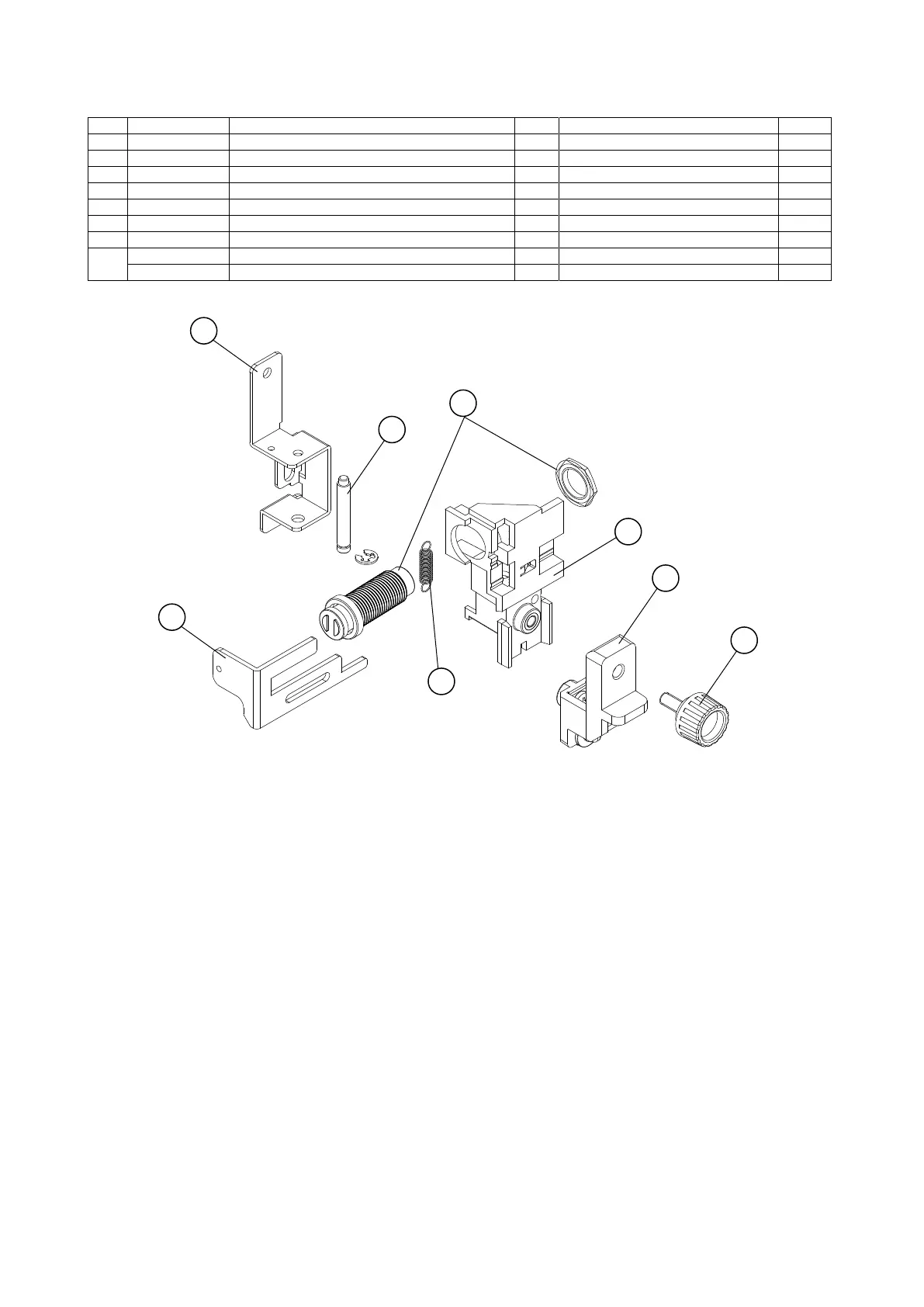

9.5 Cross Cutter
No. Part No. Description Q’ty Remarks Rank
1 621403110 Bracket, Cross Cutter 1 D
2 621263453 Shaft, Cross Cutter 1 D
3 621263460 Latch, TL-294 1 B
4 621403120 Arm, Catch 1 D
5 621403100 Cross Cutter Base 1 D
6 380265331 Spring, E-533 1 D
7 621353010 Thumb Screw, L10 1 B
8 CT01H Cross Cutter Blade, Standard Type 1 Consumption goods D
CT02U Cross Cutter Blade, High durability Type 1 Consumption goods D
Cross Cutter
1
4
2
7
5
8
6
3
