FC8600-UM-251-9370 2-6
2 PARTS NAMES and FUNCTIONS
Attaching the Basket
The basket is attached directly to the plotter�

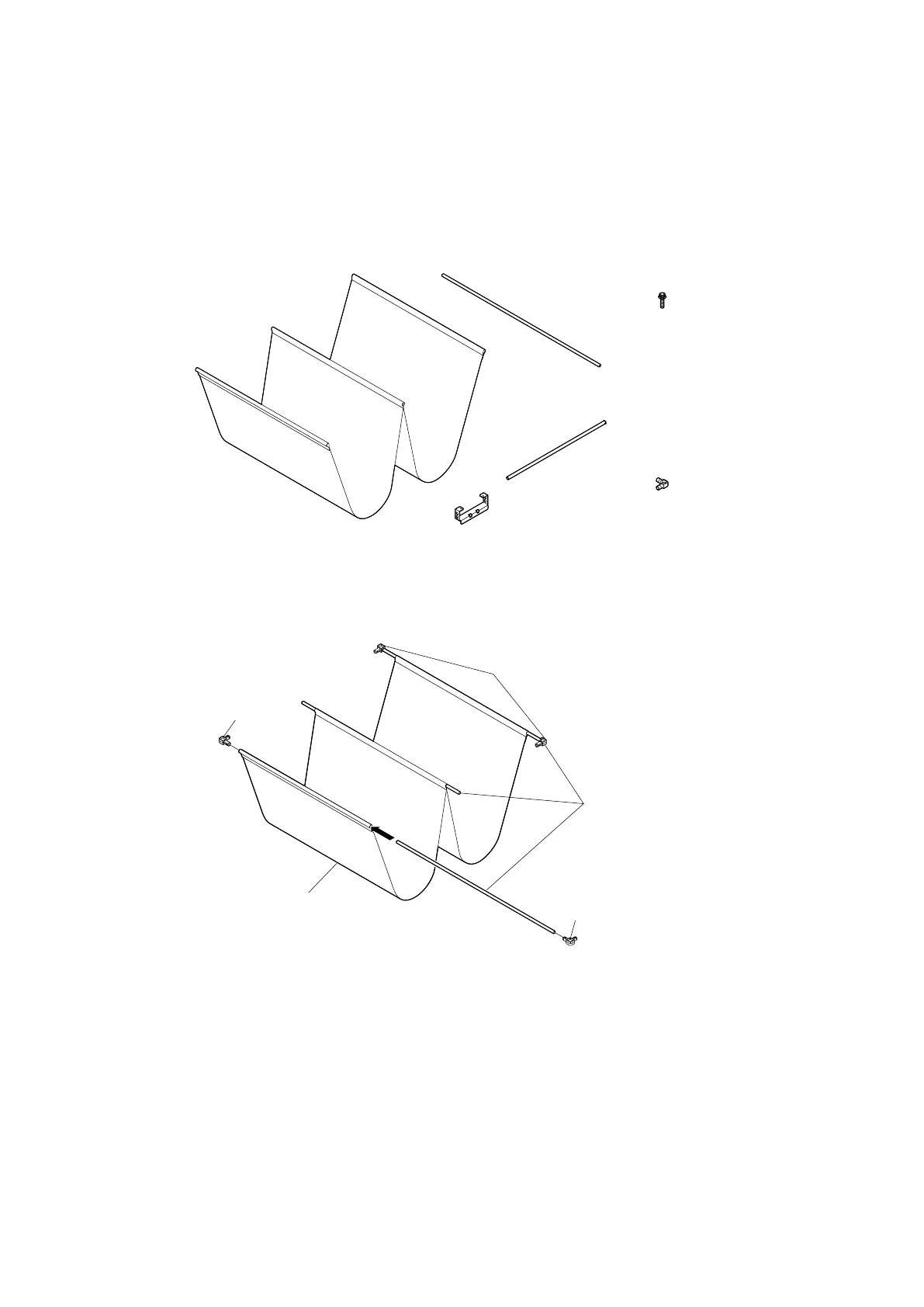

The basket is made up of the following parts�
Basket x 1, basket tubes (long) x 3, basket tubes (short) x 4, joints x 4, mounts x 2, socket cap head screws
x 4, use Allen wrench to assemble the basket�
Be sure to use the basket when cutting long-axis media of more than 1 meter is to be produced�
Cloth basket Basket tube (long) x 3
Socket head cap
screw
(M5) x 4
Mount x 2
Basket tube (short) x 4
Joint x 4
Assembly
(1) Insert the basket tubes (long) into both ends and center of the basket� Attach the joints to the end of the
2 outside basket tubes�
Cloth basket
Basket tube (long)
Joint
Joint
Joint
