Connections and installations
For Helicopter
Connections and installations 13

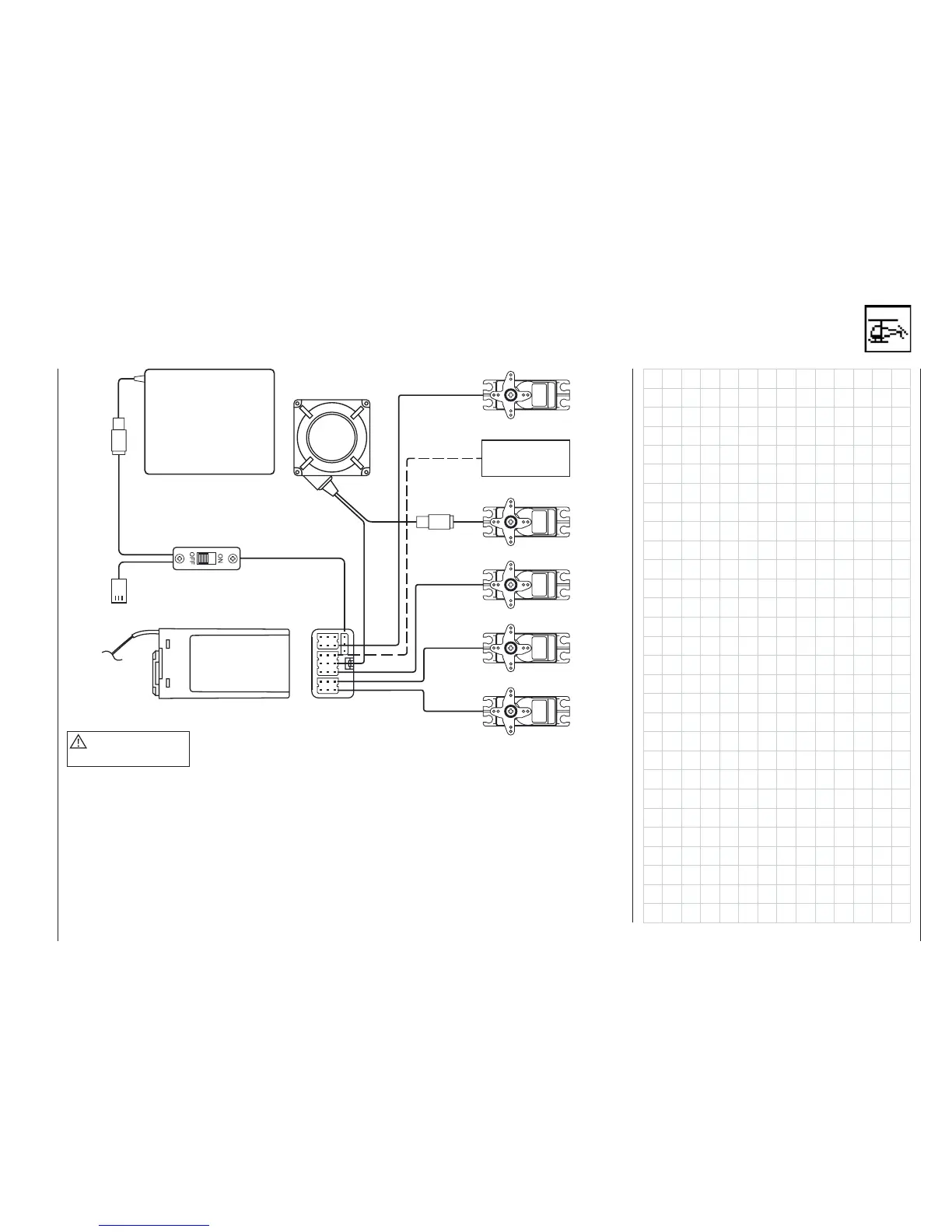

RECEIVER
BATTERY
WARNING
Do not cut or fold the antenna!
ANTENNA
R700 RECEIVER
GYRO
SWITCH HARNESS
THROTTLE SERVO
AILERON SERVO
ELEVATOR SERVO
GEAR
CHANNEL
RUDDER SERVO
PITCH SERVO
AUX1
GEAR
RUDD
ELEV
AILE
THRO
CHARGING JACK
