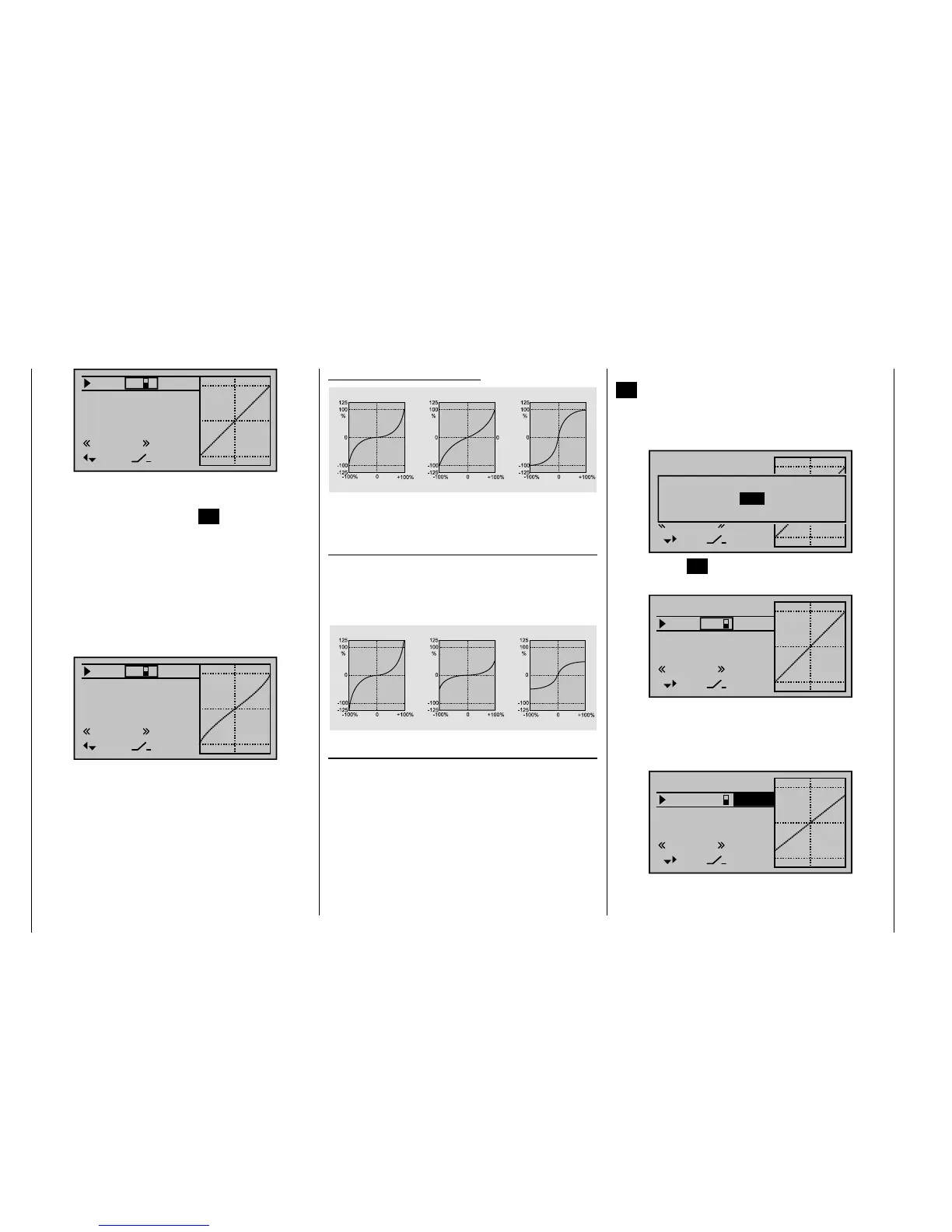

Detail program description - Control adjust
0%
0%
0%
Ail
Ele
Rud
EXPO
3
–––
–––
SEL
normal
If you select the right-hand column at the lower edge
of the display marked with SEL and activate the value
fi eld by briefl y tapping the center SET key on the right
touch pad, you can use the arrow keys on the left or
right touch pad to alter the Expo value shown in the
highlighted fi eld separately for each of the two switch
positions:
Now, for example, you have the opportunity to fl y with
a linear curve characteristic with the switch in one
direction, and to pre-set a value other than 0% in the
other switching direction:
33%
0%
0%
Ail
Ele
Rud
EXPO
3
–––
–––
SEL
normal
If you tap the or keys on the right touch
pad at the same time (CLEAR), this will reset a value
changed in the highlighted fi eld back to 0%.
Some examples of Expo values:
Servo travel
Servo travel
Servo travel
Stick deflection
Stick deflection
Stick deflection
Expo = +100%
Expo = +50%
Expo = –100%
In each of these examples, the Dual Rate value equals
100%.
Combining Dual Rate and Expo
If you have entered values for both the Dual Rate
and the Expo function, the effect from on function
is superimposed on the other, as shown in these
examples:
Servo travel
Servo travel
Servo travel
Stick deflection
Stick deflection
Stick deflection
Expo = +100%, DR = 125%
Expo = +100%, DR = 50%
Expo = –100%, DR = 50%
Asymmetric setting of Dual Rate and Expo
To make an asymmetric setting, i. e. a Dual Rate or Expo
setting dependent on the direction of the respective
joystick, fi rst access the "Control switches" menu and
assign one of the C1 … C4 control switches – "C3",
for example – your chosen transmitter control, e. g.
control 3 for the elevator function. Leave the switching
point at the joystick's neutral position (0%), however.
Now return to the "Dual Rate / Expo" menu and select
the corresponding control function ("Elevator" in this
example).
Activate "Switch assignment" and tap the center
SET key briefl y on the right touch pad to switch to
the expanded switches. Here, use the arrow keys to
continue switching to the control switch "G3" that you
defi ned previously:
100%
100%
100%
Ail
HR
SR
DUAL
–––
–––
–––
SEL
normal
Control / fix sw
C1 C2 C3 C4 FX
FXi C1i C2i C3i C4i
Tap the center SET key on the right touch pad to confi rm
the assignment of this switch:
100%
100%
100%
Ail
Ele
Rud
DUAL
–––
C3
–––
SEL
normal
Now use one of the arrow keys to move to the right
column and then move the elevator joystick to the
appropriate end-point in order to enter a separate Dual
Rate value for each direction, e. g. for "Up elevator" …
100%
100%
Ail
Ele
Rud
DUAL
–––
C3
–––
SEL
normal
77%
… and "Down elevator":
