221

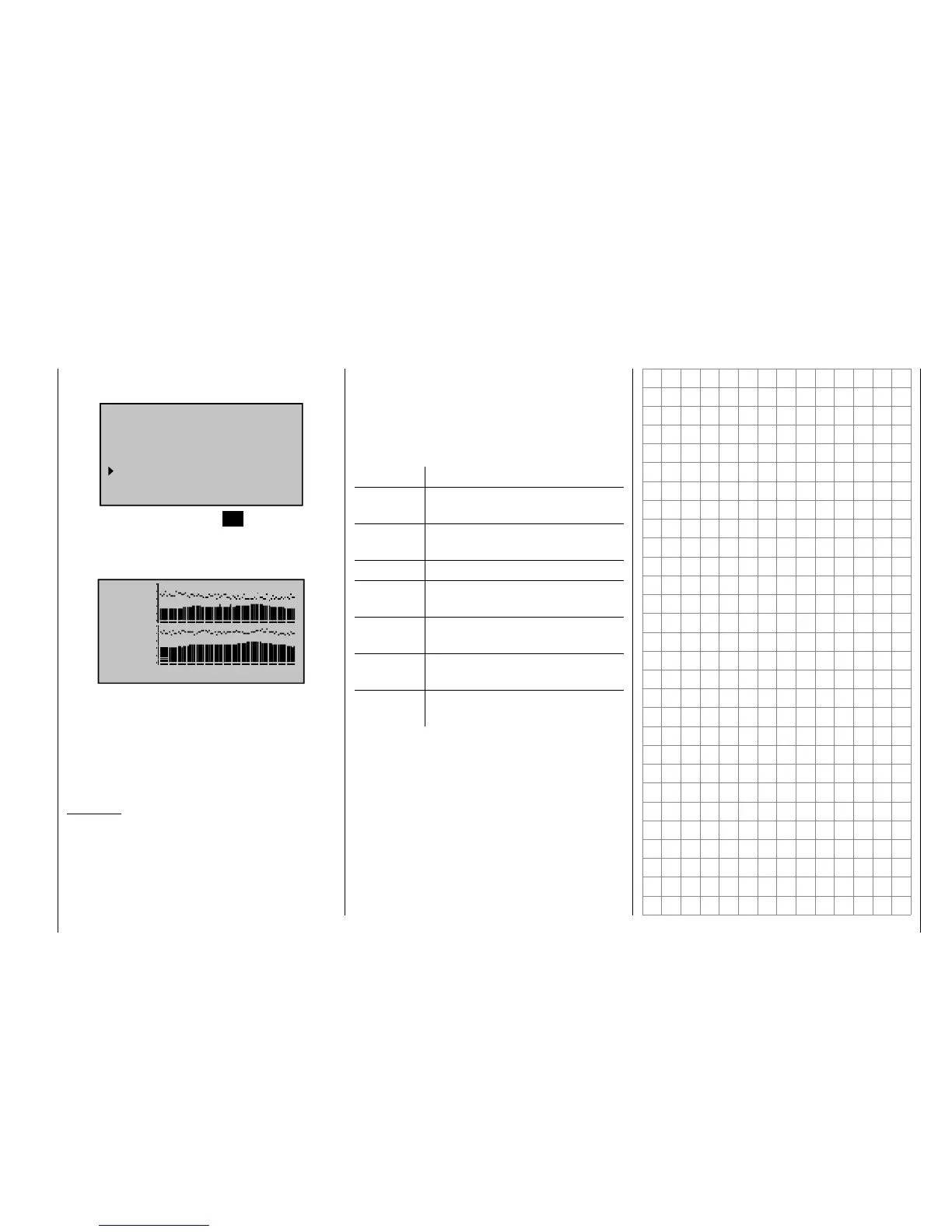

Detail program description - Control adjust
After selection of the desired menu line with the arrow
keys of the left or right touch pad …
TELEMETRY
SETTING & DATA VIEW
SENSOR SELECT
RF STATUS VIEW
VOICE TRIGGER
TEL.RCV
rcv ch1
… and then pressing the central SET key of the right
touch pad, the selected submenu opens. This provides
a visualization of the quality of the connection of
transmitter and receiver:
R100%
SD 40
E 10
RD 51
4.8VC
S 90%
4.8VM 0123456789ABCDE
Top row: Reception power of the channels 1 ...
75 of the 2.4 GHz band in dBm coming
from the receiver to the transmitter.
Bottom row: Reception power of the channels 1 ...
75 of the 2.4 GHz band in dBm coming
from the transmitter to the receiver.
Comments:
Since the reception power is measured and •
represented in dBm, the reception power is
increasingly worse the higher the bar is and vice
versa; for this purpose, see also "Reception power
(S-dBm)" on page 224.
Mark the points above the columns with the poorest •
RF STATUS VIEW
reception power since switching on the transmitter
or the resetting of the display by simultaneously
pressing the keys or of the right touch pad
(CLEAR).
Additional fi gures are shown to the left of the graphic
representation of the reception power. These mean:
Value Explanation
E Signal quality in % of the signal
received from the receiver
S Signal quality in % of the signal
received by the receiver
SL Reception power in dBm
P Number of lost data packages of the
receiver
RL Reception power in dBM of the signal
received by the receiver
RS Current operating voltage of the
receiver in volts
RM Lowest receiver operating voltage
since last startup, in volts
