68

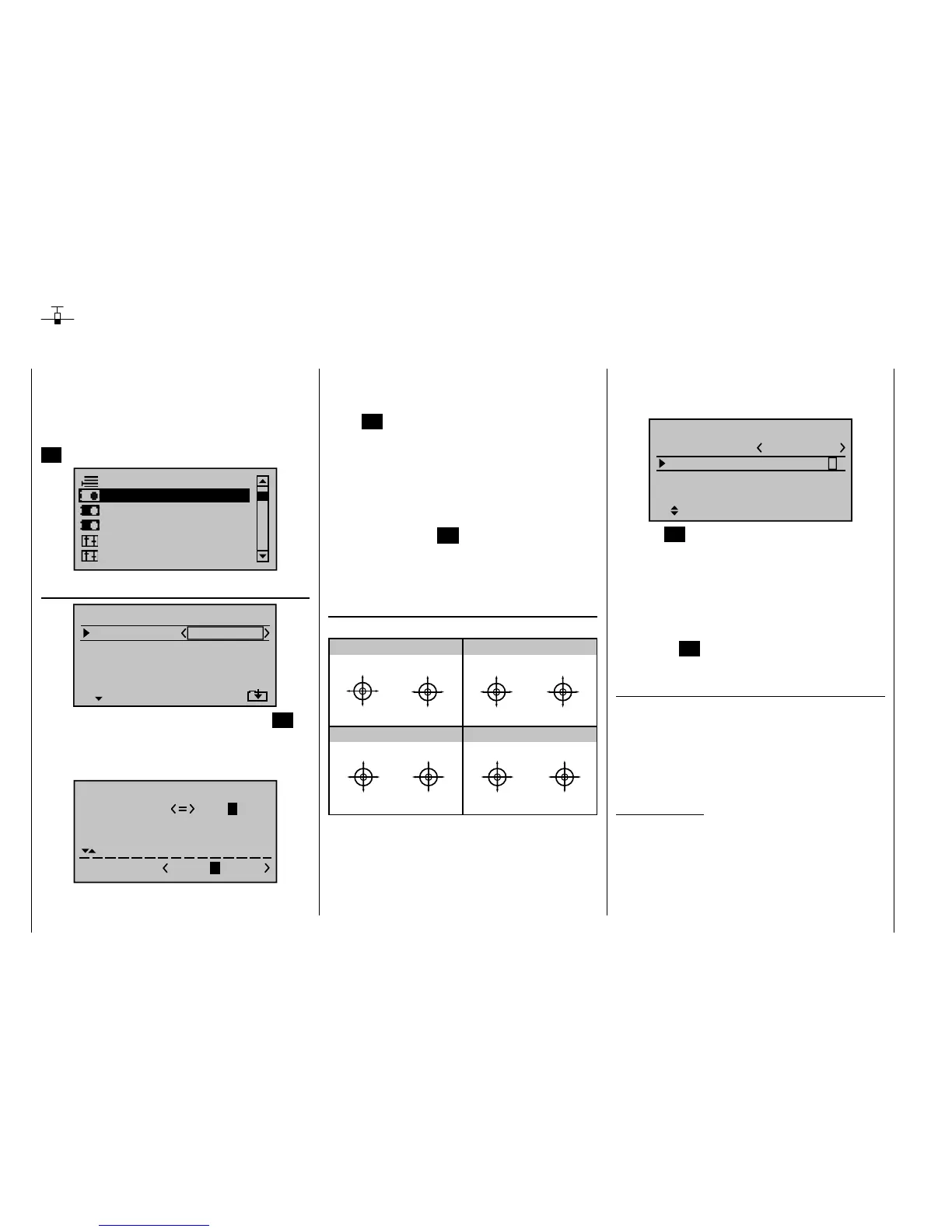

Detail program description - Base setup model
Base setup model
Model-specifi c base settings for winged aircraft models
Before programming specifi c parameters, there are
some basic settings to be made which effect the
currently active model memory.
Select the "Base setup model" menu with the arrow
keys of the left or right touch pad then press the center
SET button in the right touch pad.
Model type
Suppress models
Base setup model
Servo adjustment
Control adjust
Stick mode
Model name
Mod.name
Stick mode
RF BIND
1
n/a
BASIC SETTINGS, MODEL
n/a
BD2
BD1
RF transmit OFF
Change to the next screen page by pressing the SET
button briefl y. This will open a screen of characters for
entry of the model's name. A maximum of 9 characters
can be used to specify a model name.
!"#$%&’()+,–./012
3456789:;
Mod Name
GRAUB
FGHIJKLMNOPQRSTUVWX
YZ[¥]^_`abcdefghijk
?@AB CDE
Select the desired characters with the arrow keys of the
left touch pad. Move to select the next character position
by pressing the arrow key of the right touch pad or its
center
SET button. Simultaneously pressing the or
of the right touch pad (CLEAR) will place a space
character at the position.
Positioning to any character position within the entry
fi eld can be done with the keys of the right touch
pad.
A return to the previous menu screen is accomplished
by pressing the center ESC button in the left touch pad.
After entering the model name it will appear in the base
screen of the "Model select" menu and in the sub-menu
for the "Copy /Erase" menu item.
Stick mode
"MODE 2" (throttle left)
"MODE 3" (throttle right)
"MODE 4" (throttle left)
"MODE 1" (throttle left)
Stick forward
Stick back
Rudder left
Rudder right
Motor full throttle
Motor idle
Aileron left
Aileron right
Motor full throttle
Rudder left
Rudder right
Motor idle
Stick forward
Stick back
Aileron left
Aileron right
Stick forward
Stick back
Aileron left
Aileron right
Motor full throttle
Motor idle
Rudder left
Rudder right
Motor full throttle
Motor idle
Aileron left
Aileron right
Stick forward
Stick back
Rudder left
Rudder right
There are four fundamental options for assigning the
four control functions (aileron, elevator, rudder and
throttle/brake fl ap) for a winged aircraft model to the two
joysticks. Just which of these options is chosen depends
on the individual preferences of the individual model
pilot.
Select the "Stick mode" line with the arrow keys
of the left or right touch pad. The option fi eld will be
enclosed in a frame.
1
SEL
GRAUBELE
Mod.name
Stick mode
RF BIND
n/a
BASIC SETTINGS, MODEL
n/a
RF transmit OFF
Press the SET button. The currently displayed stick
mode will be displayed in inverse video. Now use the
arrow keys of the right touch pad to select from among
options 1 through 4.
Pressing simultaneously on the or keys of the
right touch pad (CLEAR) will return the option selection
back to stick mode "1".
Pressing the SET button again will deactivate option
selection so that you can change to another line.
Bound receiver
Graupner HoTT receivers must be "instructed" to
communicate exclusively with one particular model
(memory) in a Graupner HoTT transmitter. This
procedure is known as "binding" and must only be done
once for every new receiver/model memory location
combination (and can be repeated anytime).
Important notice:
During the binding procedure be sure the
transmitter's antenna is always far enough away
from the receiver's antenna. To be on the safe side,
keep them at least one meter apart. Otherwise you
run the risk of a faulty connection to the return
channel and malfunctions will result.
