Transmitter description - Display and keypad

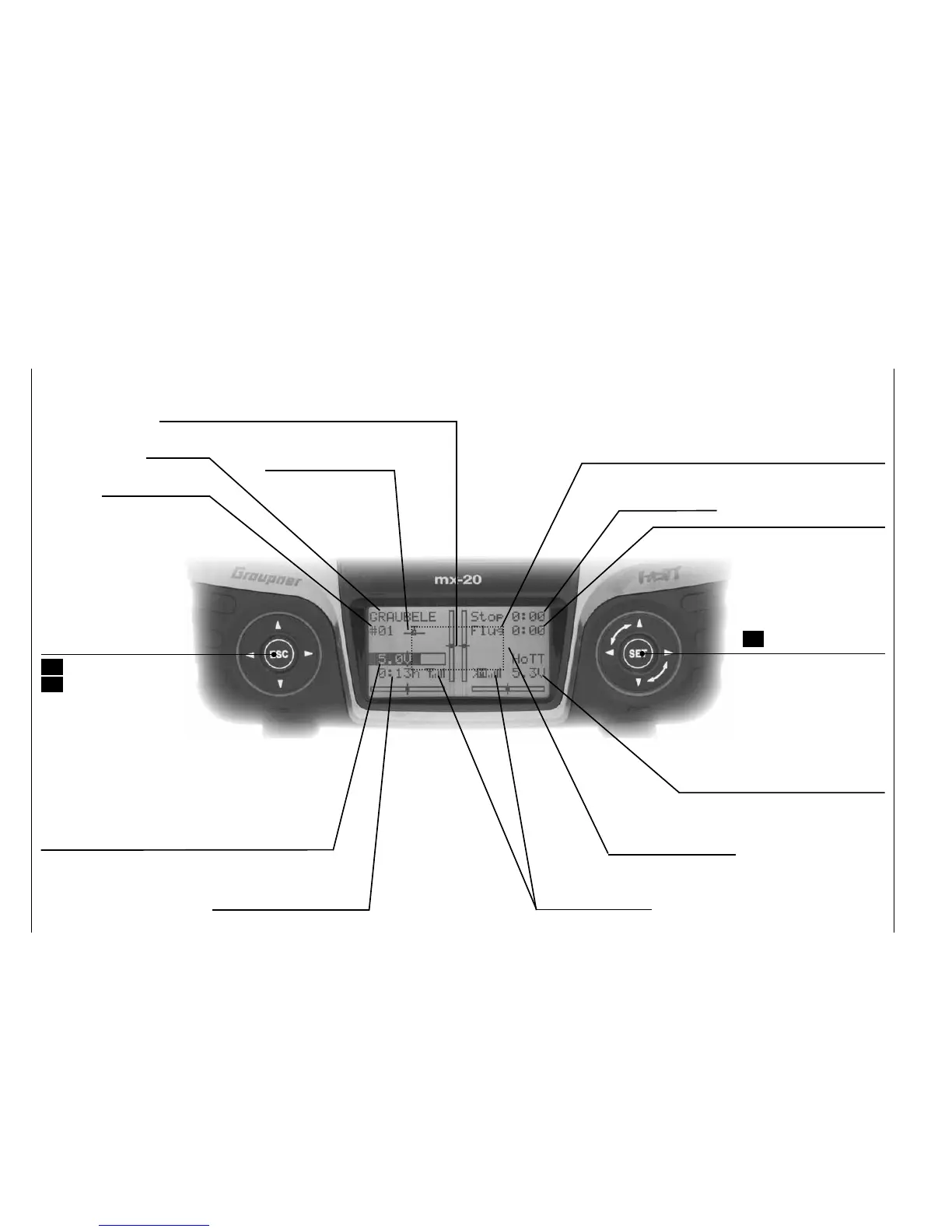

Display and keypad
Signal strength indicator
Battery time since last
re-charge in h:min
Flight timer in min:s
(upward/downward)
Stopwatch in min:s
(upward/downward)
Flight phase name
switchover between
fl ight phases by switch
Receiver power supply voltage
right touch pad:
Paging / changing values
SET select / confi rm
Model name
Memory location 1 … 24
Battery voltage and charge state bars
(if the preset threshold voltage is underrun, a warning will
appear – see "Warnings" on page 36 –, and an acoustic
warning tone will sound)
optical indication of trim lever positions or, during activation
of speed controls CTRL 7 + 8, an alternative display of the
current positions of these controls
Model type indicator
(winged aircraft / helicopter)
left touch pad
paging
simultaneously pressed:
Change to the servo
display menu
ESC = cancel/return
ESC touched for about 1 s:
Change to the Telemetry menu
and return to basic display
possible warnings, see page 36
simultaneous pressing of
or = CLEAR
To Next Page
