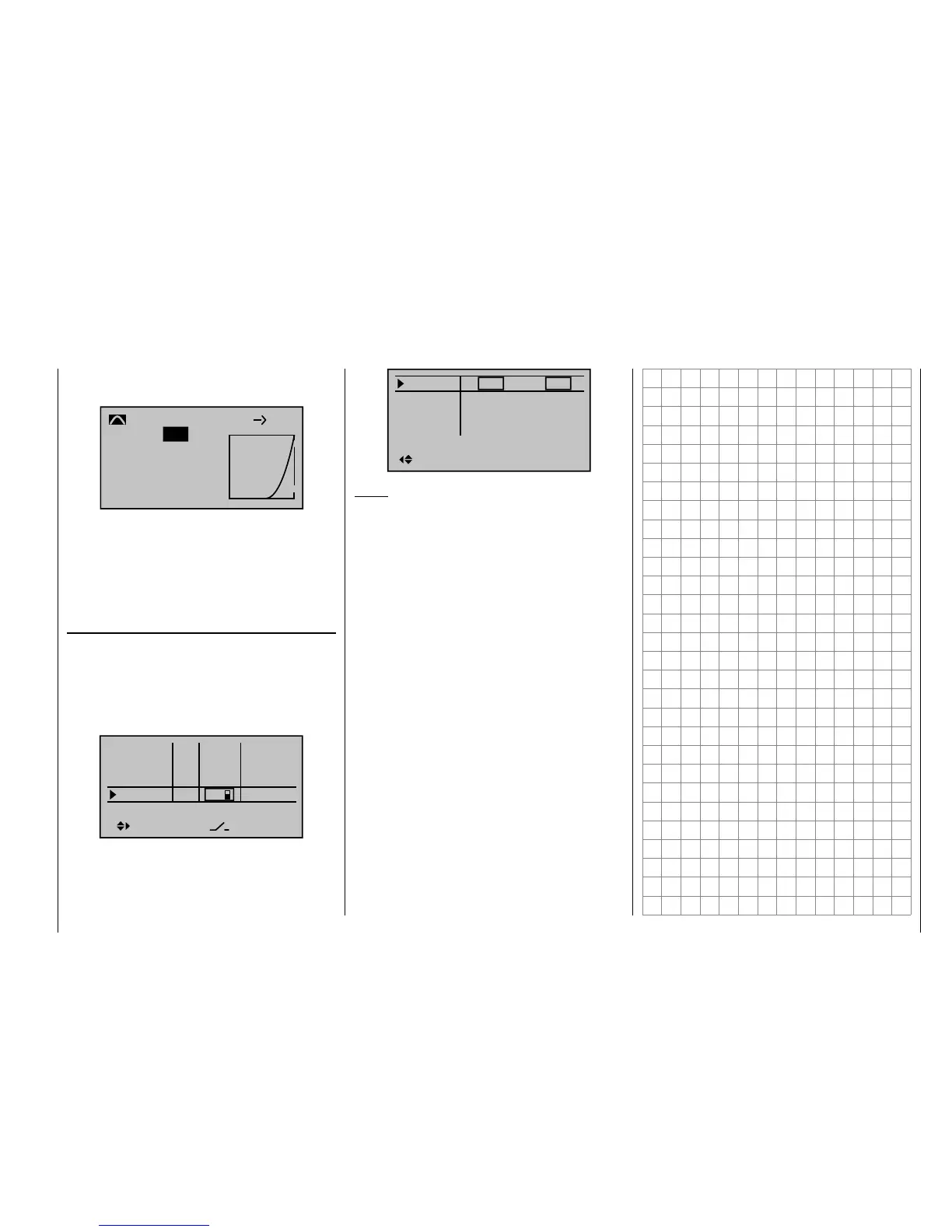

Detail program description - Control adjust
… triggered by the same switch, but with a delayed
startup of the drive motor connected to Output 10:
–100%
–100%
Input
Output
Point
L
C.MIX10
normal
Curve
910
–100%
on
The function you programmed functions as desired
according to these suggestions – which you can verify
at any time after switching to the "Servo display" by
simultaneously pressing the keys of the left touch
pad – then to, complete the programming, an arbitrary
switch, such as "SW 8" is assigned in the menu …
"Control adjust" (page 96)
… to the control channel used instead of the selected
proportional rotary control – in in these examples
"CTRL 8" to channel "9" – and the desired symmetric
or asymmetric time span is set in the "- Time +" column
for the amount of time in which the function should
ultimately take place:
Input 6
offset
0%
0%
0%
–––
0%
Input 7
Input 8
Input 9
–––
–––
GL
GL
GL
GL
typ
8
Input 9
– time +
9.9
0.0
0.0
0.0
Input10
Input11
Input12
9.9
0.0
0.0
0.0
Notice:
In the course of the switch assignment, always bear in
mind that you can also trigger multiple functions with
one switch! For example , with the same switch a landing
gear connected to Output 6 can be started and, as
shown here as an example, the time-controlled landing
gear fl aps connected to Output 9 and/or the headlight,
etc.
