GRAUPNER mx-20 Hott

93

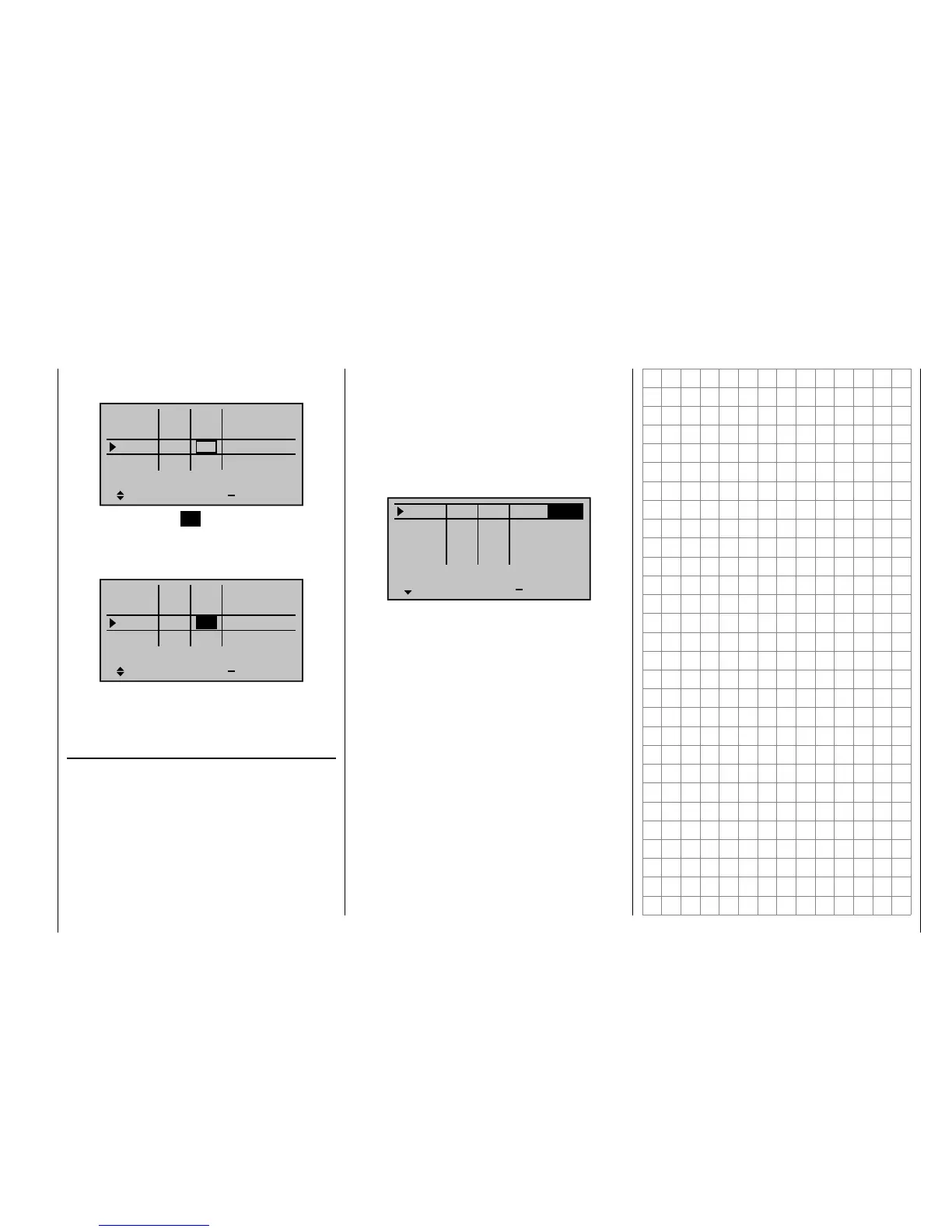

Detail program description - Joystick setting
touch pad, the corresponding entry fi eld will be framed.
For example:
Tr
+
4
4
4
0.0s
0.0s
0.0s
4
0.0s
0.0s
0.0s
0.0s
0.0s
GL
GL
GL
GL
St
Ch.1
Aile
Elev
time
Rudd
Briefl y press the center SET button in the right touch
pad. The current setting will be displayed in inverse
video. Now select the desired value, between 1 and 10,
with the arrow keys of the right touch pad. For example:
Tr
+
4
4
0.0s
0.0s
0.0s
4
0.0s
0.0s
0.0s
0.0s
0.0s
GL
GL
GL
GL
St
8
Ch.1
Aile
Elev
time
Rudd
Simultaneously pressing the  or  arrow keys of
the right touch pad (CLEAR) will reset the change made
in the active fi eld back to "4".
Column "time"
The "time" column entries infl uence joystick acceleration
speed/s – if applicable, for each movement direction
for the four control sticks, 1 through 4, separately – .
This means that respective servos will then follow rapid
control position changes only at an accordingly delayed
rate. This time delay has a direct effect on the control
function and therefore also any servos controlled by this
function.
The time can be programmed symmetrically for both
sides or separate for each control direction. This setting
has a programmable range of 0 s to 9.9 s. In the case of
side-separate settings, the joystick is to be moved to the
respective side so that the inverse video fi eld will switch
between sides to the one for which the change is to be
made, – for example, even to ensure gentle rev-up of
the propulsion motor despite a (too) fast motion of the
C1 stick.
Tr
+
4
4
4
0.0s
0.0s
4
0.0s
0.0s
0.0s
0.0s
0.0s
GL
GL
GL
GL
St
1.1s
Ch.1
Aile
Elev
time
Rudd
On the other hand, for reasons of safety, the motor cut-
off should always be "immediate".
Simultaneously pressing the  or  keys of the
right touch pad (CLEAR) will reset the change made to
the active fi eld back to "0.0 s".
