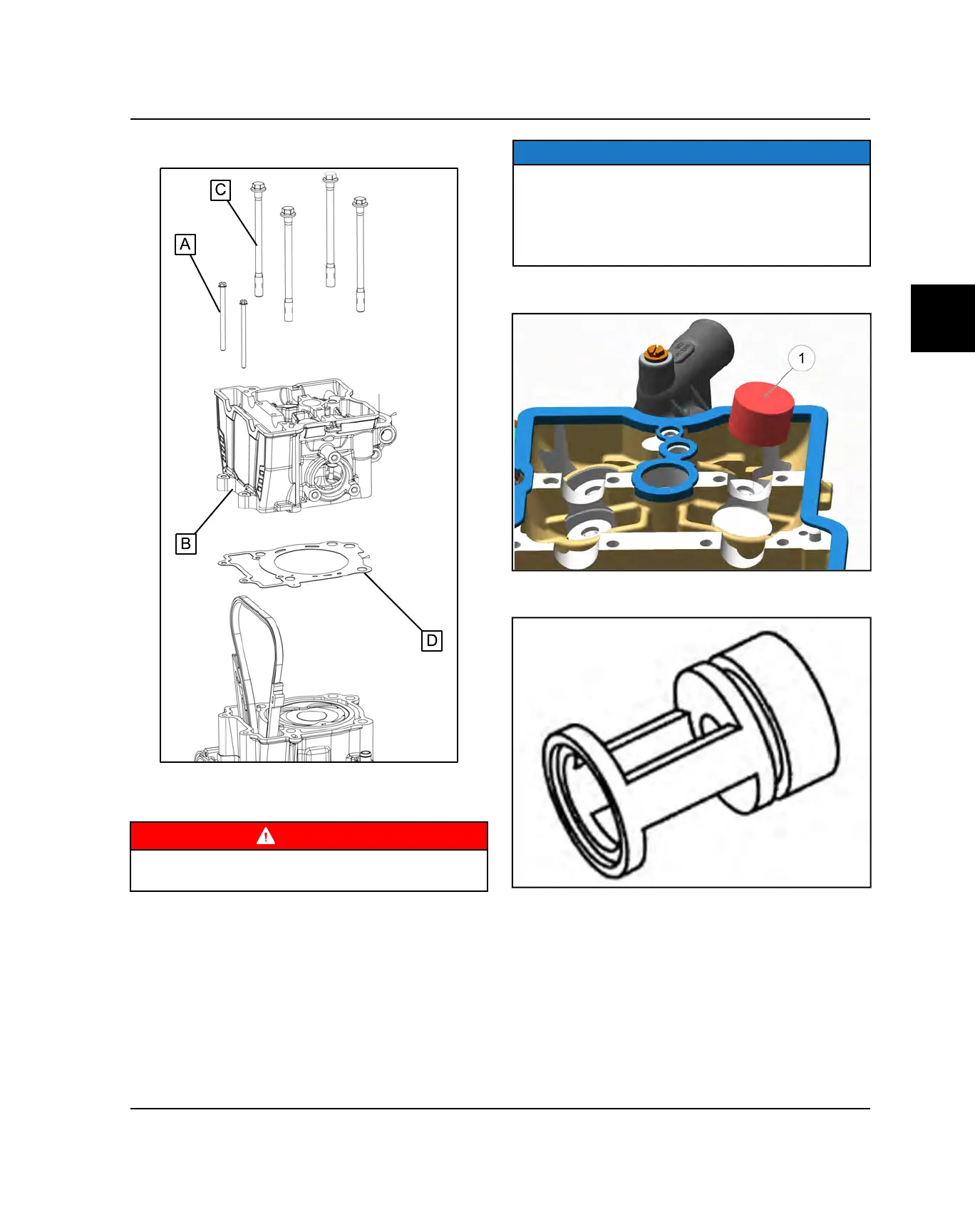

5. Remove the cylinder head (B) and head gasket (D).
CYLINDER HEAD DISASSEMBLY
WARNING
Wear eye protection during cylinder head disassembly
and reassembly or when working with the valve springs.
NOTE
Keep mated parts together and in order with respect to
their location in the cylinder head for assembly
purposes. It is important to install cylinder head
components back in the same location. Mark each
component or place them in an organized rack as you
remove them.
1. Remove the valve tappet (Item 1) from the cylinder
head.
2. Compress the valve spring by hand using valve
spring compressor adapter (21900599).
