6.22
21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company

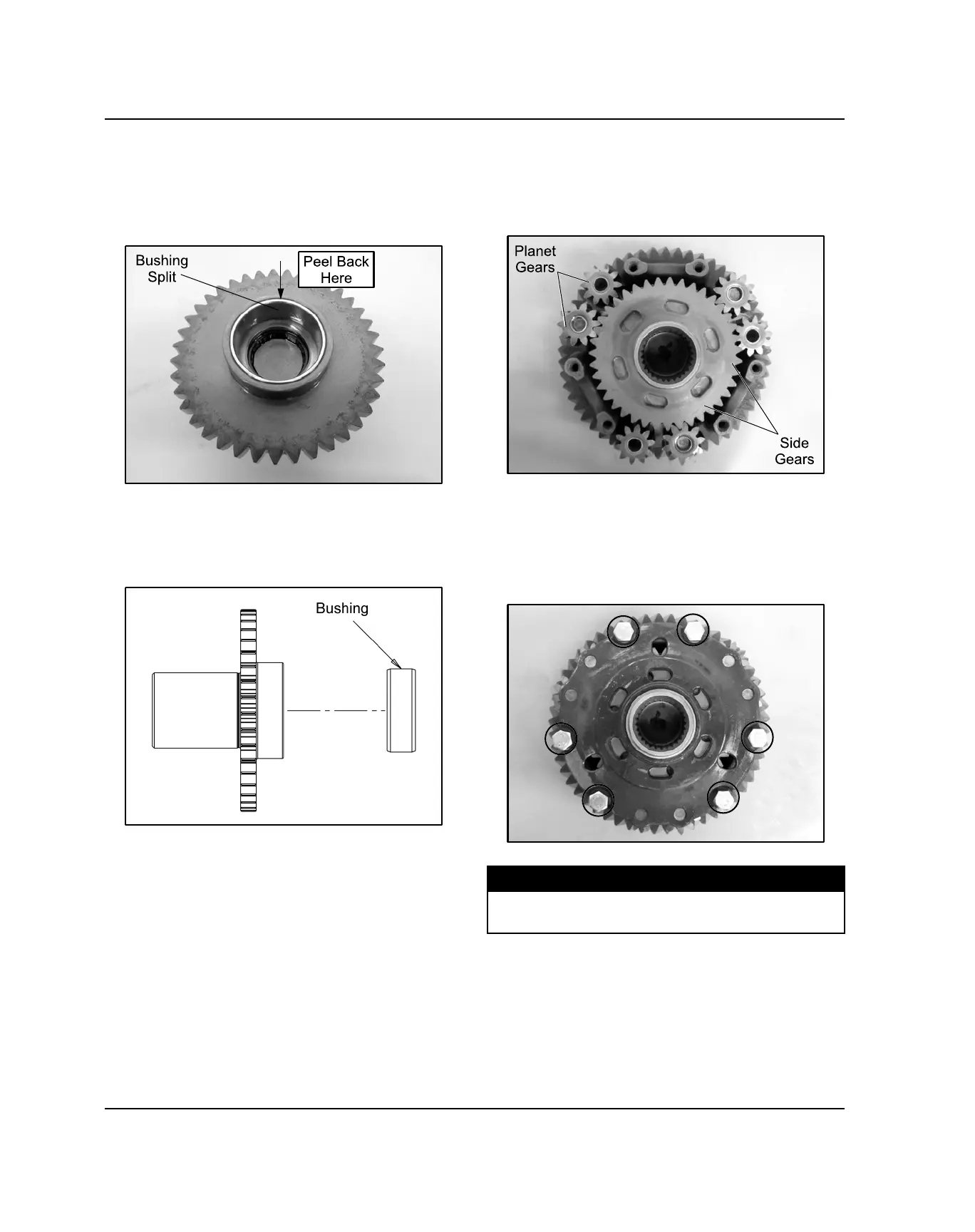

Female Side Gear Bushing Replacement
12. Locate the bushing split. Using a small chisel or flat
blade screwdriver, peel back and remove the old
bushing from the side gear, being careful not to
damage the side gear.
13. Thoroughly clean the bore of the side gear and
check for any unwanted burs.
14. Press the new bushing into the side gear until it
bottoms out.
PLANETARY DIFFERENTIAL ASSEMBLY
1. Thoroughly clean the differential components.
2. Assemble the side gears and place them onto the
ring gear along with the (6) planet gears.
3. Align and install the differential cover using the
previously made scribe marks.
4. Apply Loctite® 2760 to cover screws.
5. Install screws hand tight. Place assembly in soft jaw
vise and torque to specification.
TORQUE
Differential Cover Screws:
18–22 lb-ft (24–30 Nm)
TRANSMISSION
