IGNITION KEY SWITCH

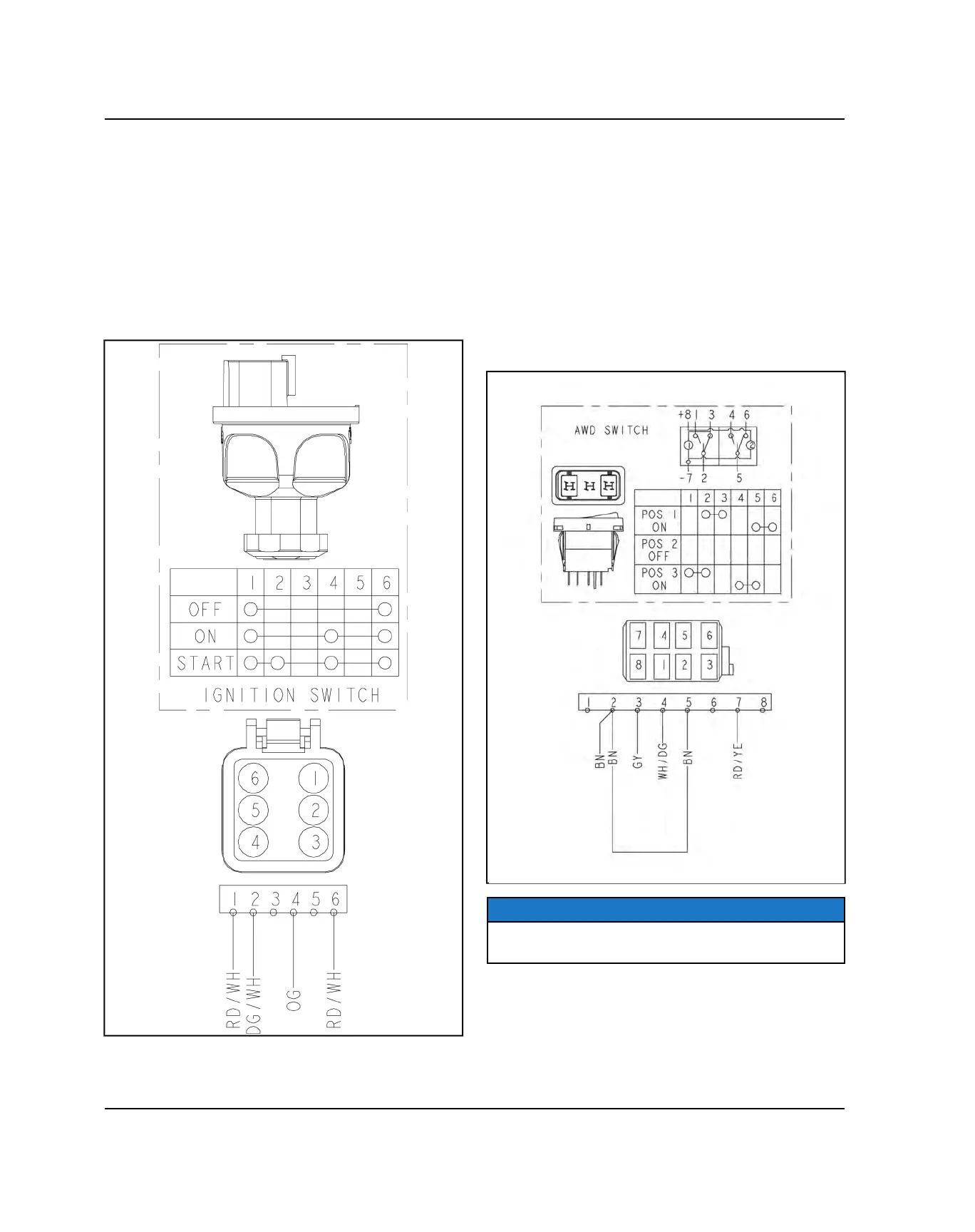

1. Disconnect the key switch harness by lifting the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 3 sets of outputs (OFF / ON /
START). If any of the tests fail, replace ignition
switch assembly.
• Turn the ignition key to ON. There should be continuity
between switch pins 1, 4, and 6.
• Turn the ignition key to START. There should be
continuity between switch pins 1, 2, 4, and 6.
AWD / 2WD / TURF SWITCH
1. Disconnect the AWD / 2WD / TURF switch harness
by depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (AWD / 2WD /
TURF). If any of the tests fail, replace the switch
assembly.
• Move the switch to AWD. There should be continuity
between switch pins 2 and 3; 5 and 6.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be continuity
between switch pins 1 and 2; 4 and 5.
NOTE
Pins 7 and 8 provide power and ground to light the
switch lamp.
