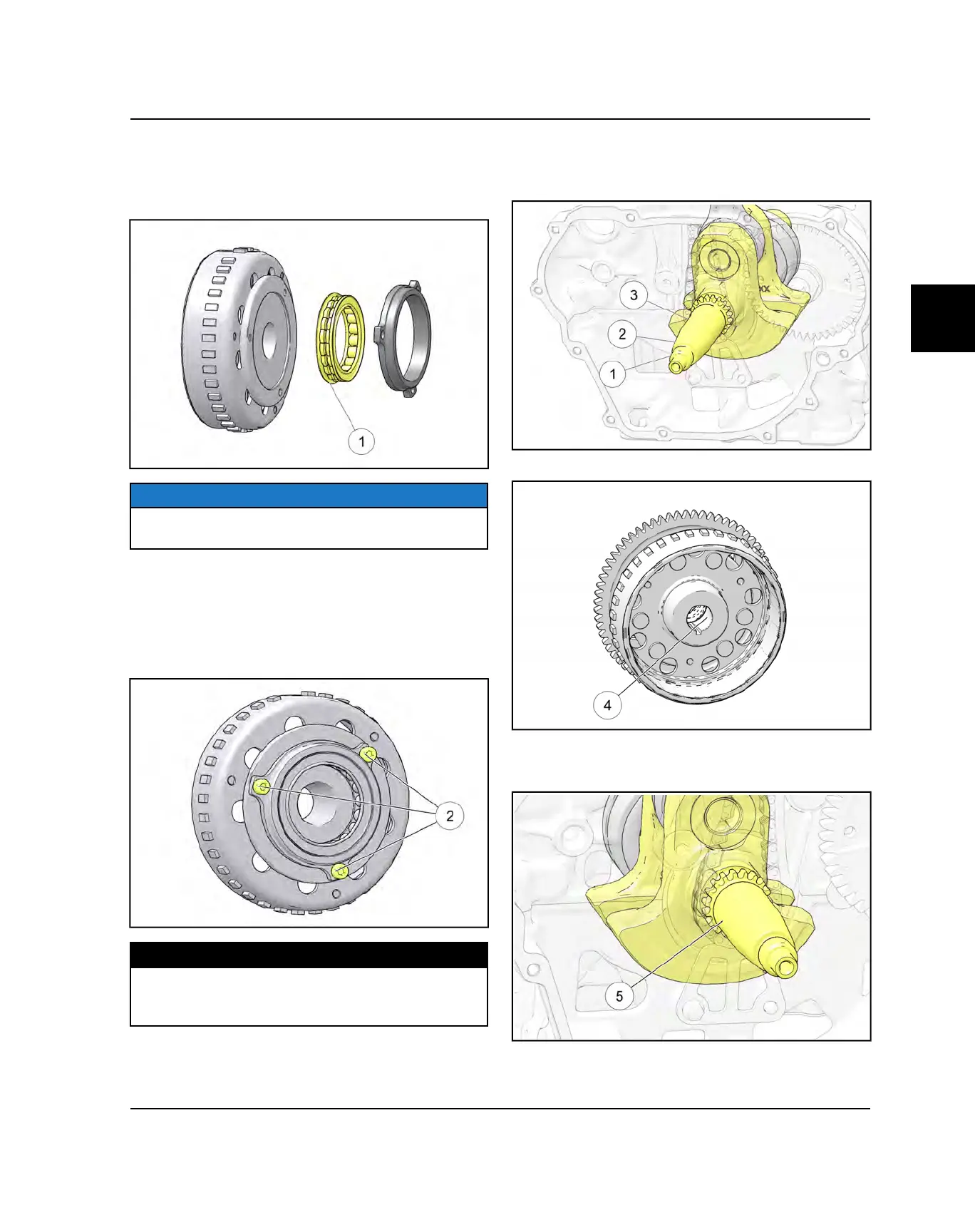

STARTER ONE-WAY CLUTCH
INSTALLATION
1. Install one-way clutch in clutch hub with flange of
clutch (1) facing the flywheel.
NOTE
The one-way clutch can be installed into the hub
incorrectly. This will cause engine cranking issues.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Apply Loctite® 272™ on the one way clutch retaining
bolts threads (2). Place hub on flywheel and install
bolts.
4. Torque screws to specification.
TORQUE
One Way Clutch Retaining Bolts:
9 lb-ft (12 Nm)
Apply Loctite® 272™
FLYWHEEL INSTALLATION
1. Clean the threads (1), taper (2) and flat (3) of
crankshaft to remove all oil or grease.
2. Clean flywheel taper (4) to remove all oil or grease.
3. Apply a small amount of engine oil to the flat area (5)
on the MAG side crankshaft. DO NOT apply engine
oil to the crankshaft taper.
