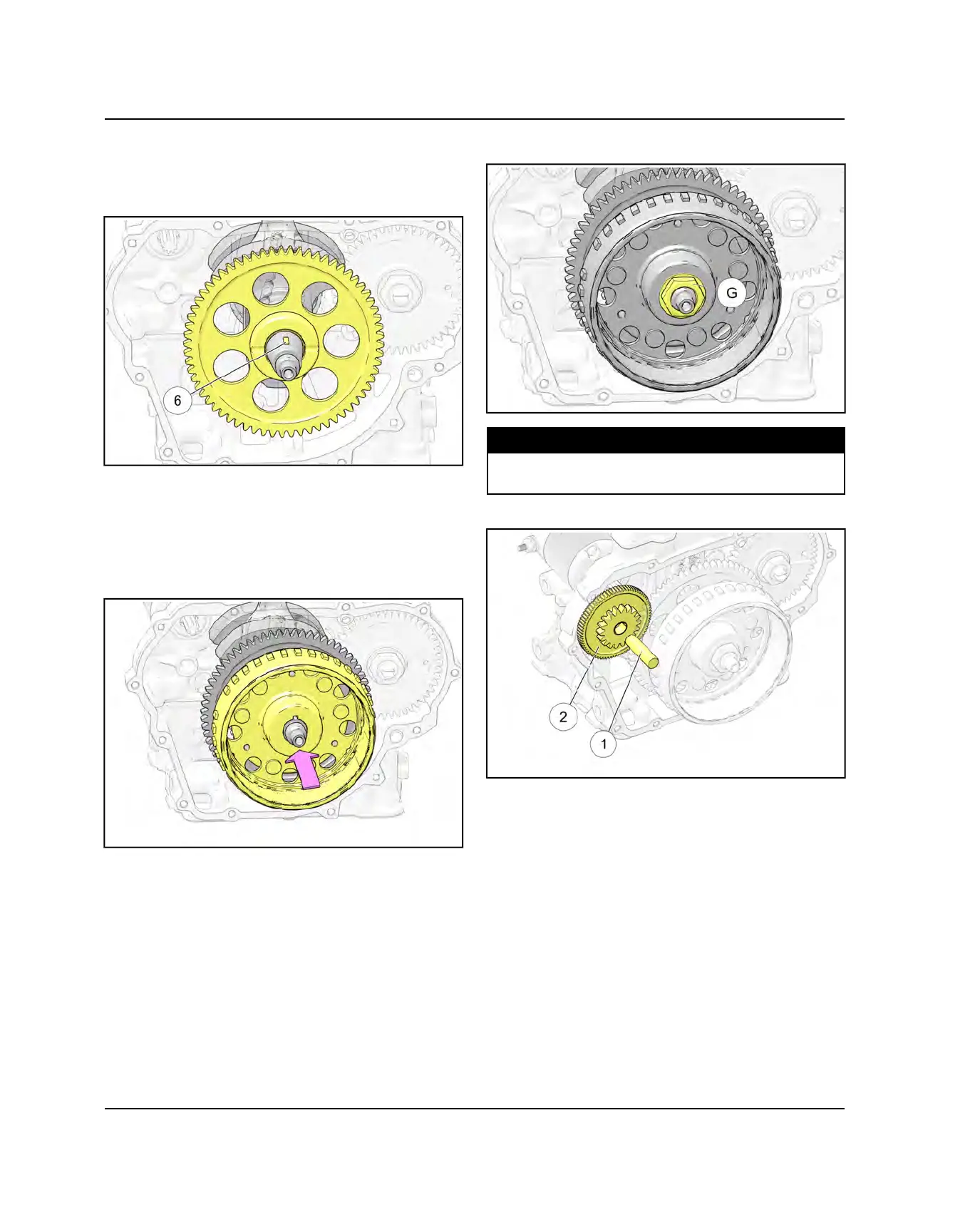

4. Rotate crankshaft so the flywheel key (6) is facing
upward.
5. Fully install starter gear onto the crankshaft as
shown.
6. Align the flywheel keyway with flywheel key on the
crankshaft.
7. Apply Loctite® 641 (Yellow), or Loctite® 603 (Green)
if unavailable, and by hand, lightly press the flywheel
inward while rotating the starter gear counter clock-
wise. Fully install the flywheel until seated on the
crankshaft taper.
8. Install the flywheel washer.
9. Hold flywheel with commercially available strap
wrench.
10. Torque new flywheel nut (7) to specification.
TORQUE
Flywheel Retaining Nut:
133 lb-ft (180 Nm)
11. Install starter idler gear (8) and shaft (9).
