3.78
21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company

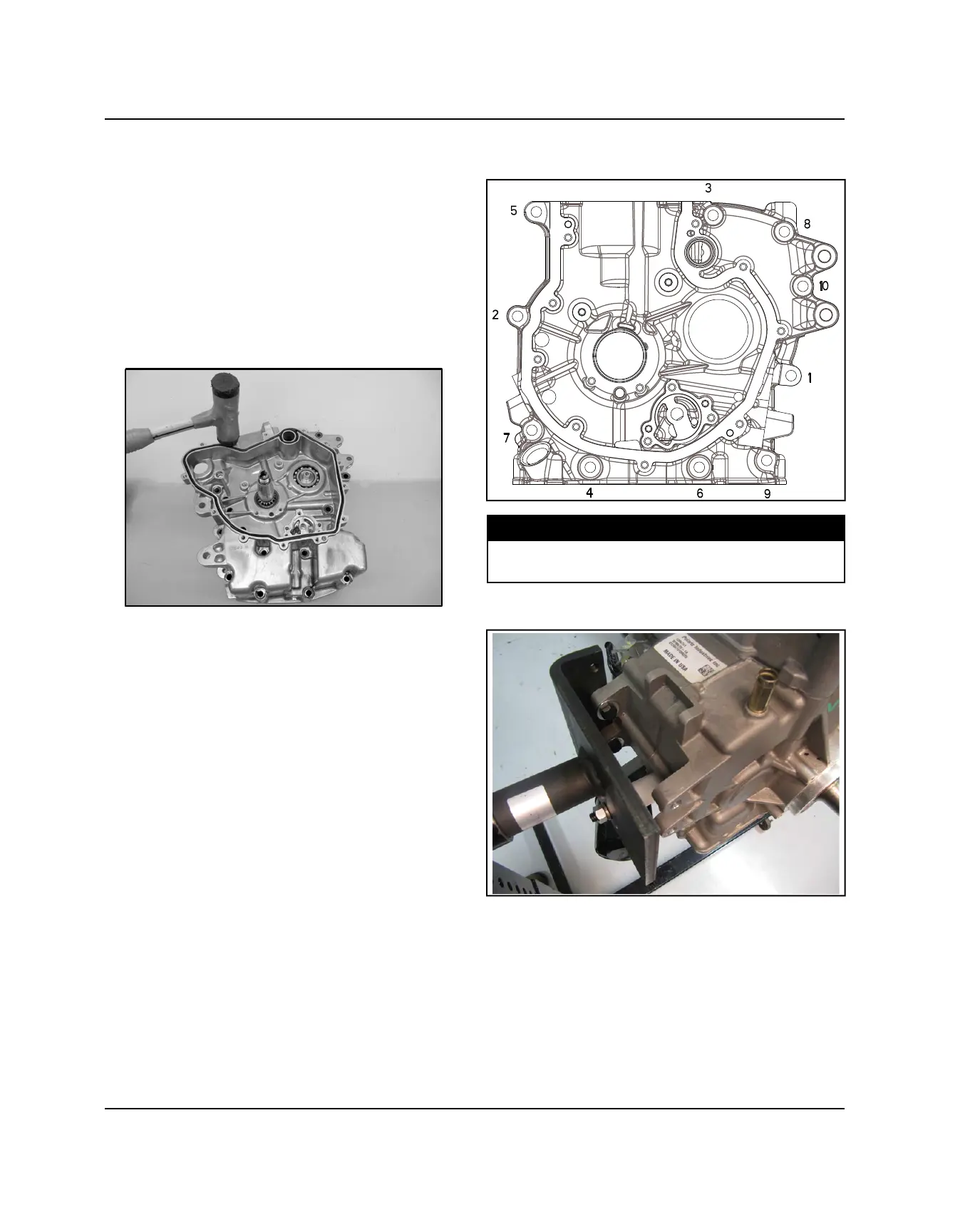

FINAL CRANKCASE ASSEMBLY
1. Prepare lower crankcase by cleaning sealing
surface. Be sure the oil pickup and oil pressure valve
are fully installed.
2. Apply a thin film of Crankcase Sealant evenly to a
clean and oil-free crankcase mating surface as
indicated below (1). Be sure alignment pins (A) are in
place.
3. Carefully assemble MAG crankcase to PTO
crankcase immediately. Do not allow sealant to dry.
4. Tap crankcase evenly until fully seated with a soft
sided hammer.
5. Install the new crankcase bolts finger tight in MAG
side crankcase.
6. Tighten all bolts evenly until snug.
7. Torque the new crankcase bolts to in sequence to
specification.
TORQUE
Crankcase Bolts (In Sequence):
22 lb-ft (30 Nm)
8. Install an engine stand adapter onto the engine ears
as shown below.
9. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
10. Place engine onto a commercially available engine
stand for top end engine assembly as outlined in this
chapter.
ENGINE / COOLING SYSTEM
