3. Remove the (2) push rivets (Item 2).
NOTE
If removing the LH panel, loosen the hose clamp (3)
retaining the fuel fill hose to the LH panel.
4. Pull rocker panel out to remove it.
ROCKER PANEL REMOVAL - JSV6000
Rear Rocker Panel Removal
1. Remove the rear seat base.
2. Remove the under seat storage boxes.

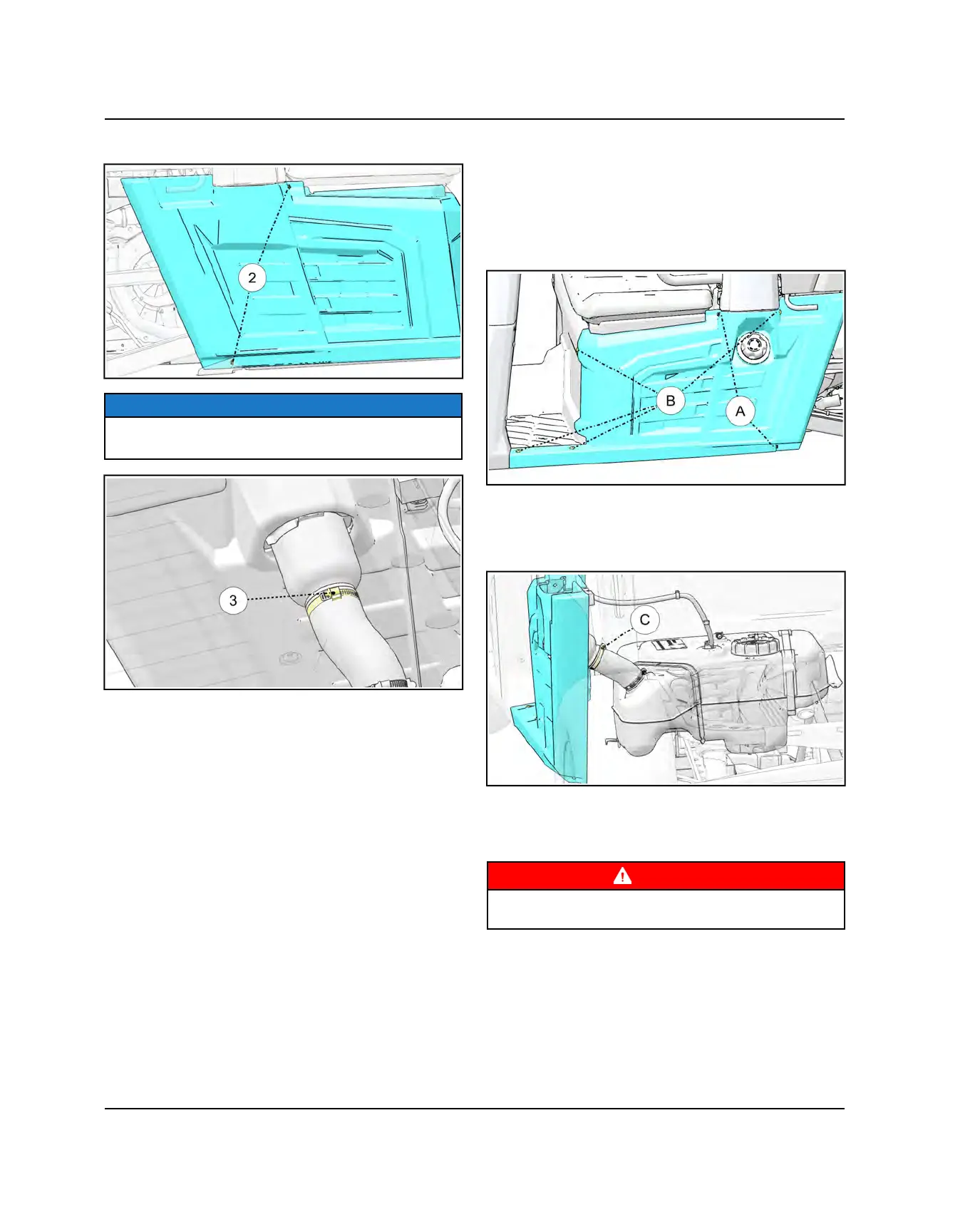

3. Remove the (2) push rivets (A) Fig. 1 from the rocker
panel.
4. Remove (4) T-40 Torx-head screws (B) Fig. 1 from
the rocker panel.
5. Remove the band clamp (C) Fig. 2 from the fuel fill
hose.
6. Remove the rocker panel assembly from the vehicle.
7. Cover the fuel fill hose to prevent leakage and to
prevent debris from entering the fuel tank.
WARNING
Gasoline is extremely flammable and explosive under
certain conditions.
8. Installation is reverse of removal.
Front Rocker Panel Removal
1. Remove rear rocker panel. Refer to “Rear Rocker
Panel Removal” procedure.
2. Remove front seat base.
