Rubber (cont'd)
Move the cursors with the mouse to modify the values and and to create a new shoulder shape :
(pict. 1 and 2)

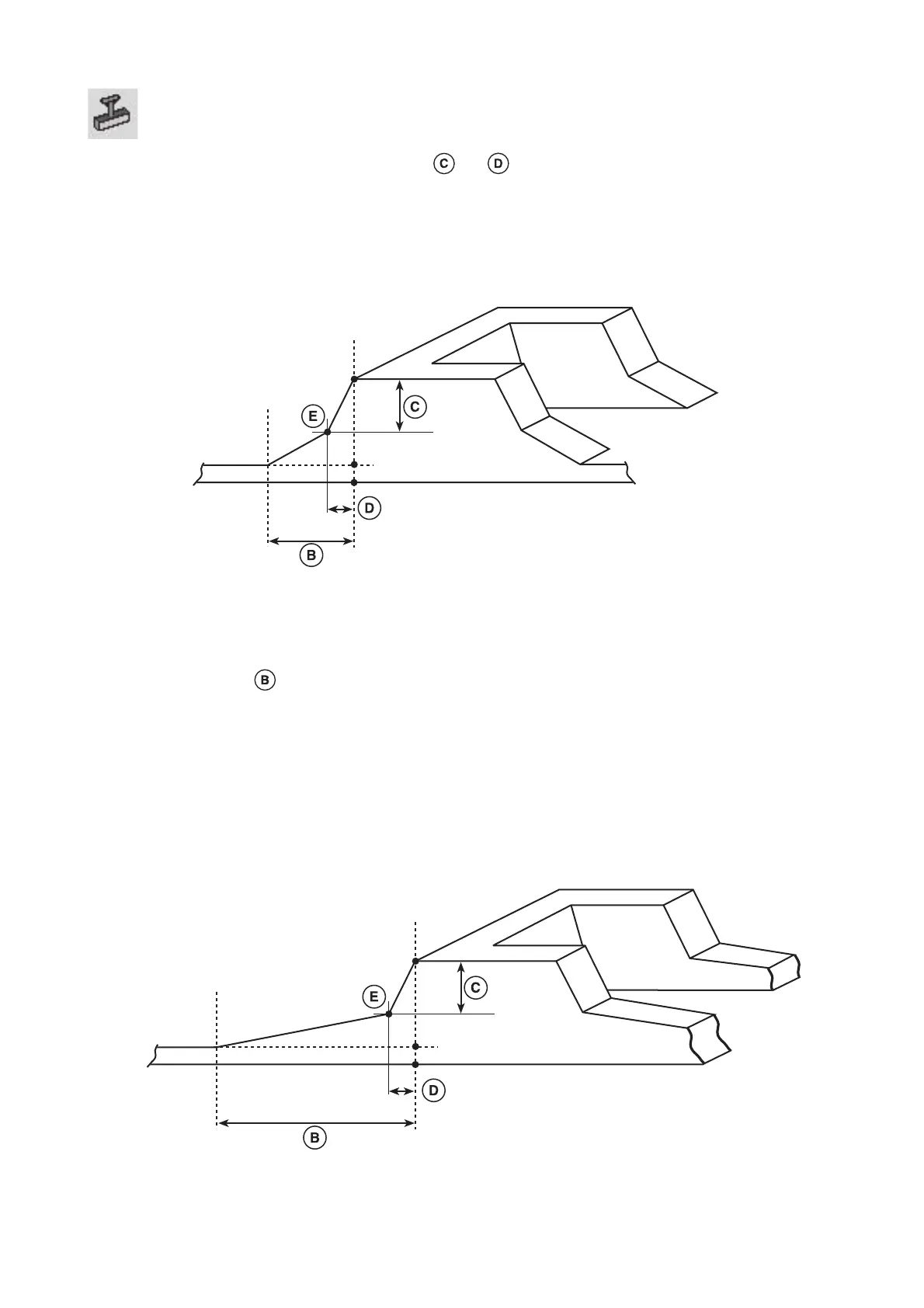

Modify the shoulder length to create a new shoulder shape which appears in the "Parameters" window when you click
"Apply" ("Appliquer") :
(pict. 3 and 4)
Shoulder
B= 1 mm
C= 65%
D= 0.19 mm
0 %
100 %
65 %
0,19
0
1
1mm
Shoulder
B= 5 mm
C= 65%
D= 0.19 mm
0 %
100 %
65 %
0,19
0
5
5 mm
"C" letter
"C" letter
Printer driver
