Gree FLEXX Series Installation Manual

A-Coil
7

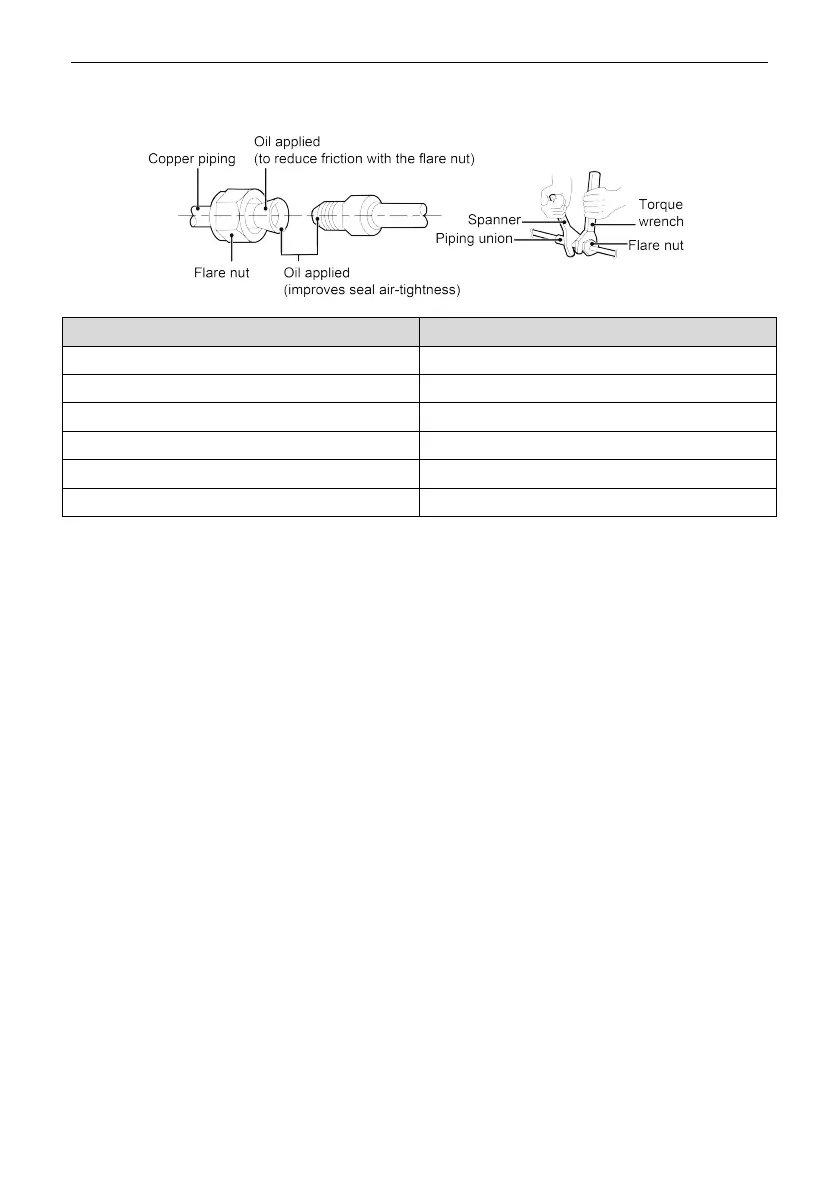

4.3.2.2 Screw Connection
Pipe diameter (inch)
Tightening torque (N·m)
Φ1/4
15-30
Φ3/8
35-40
Φ1/2
45-50
Φ5/8
60-65
Φ3/4
70-75
Φ7/8
80-85
4.4 Condensate Removal
(1) It is not allowed to connect the condensate drain pipe into waste pipe or other
pipelines which are likely to produce corrosive or peculiar smell to prevent the
smell from entering indoors or corrupt the unit.
(2) It is not allowed to connect the condensate drain pipe into rain pipe to prevent rain
water from pouring in and cause property loss or personal injury.
(3) Condensate drain pipe should be connected into special drain system for air
conditioner.
(4) The drain pan has primary and secondary drain connection. Condensate removal
is performed by attaching a 3/4” PVC pipe to the evaporator coil pan and
terminated in accordance with local or state Plumbing/HVAC codes. The
installation must include a “P” style trap that is located closely to the evaporator
coil. Do not over-tighten the drain connection in order to prevent possible damage
to the evaporator drain pan. See the following figure for details of a typical
condensate line “P” trap.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
