Unit MAINTENANCE

Model: FP-51XD –E; FP-68XD –E.

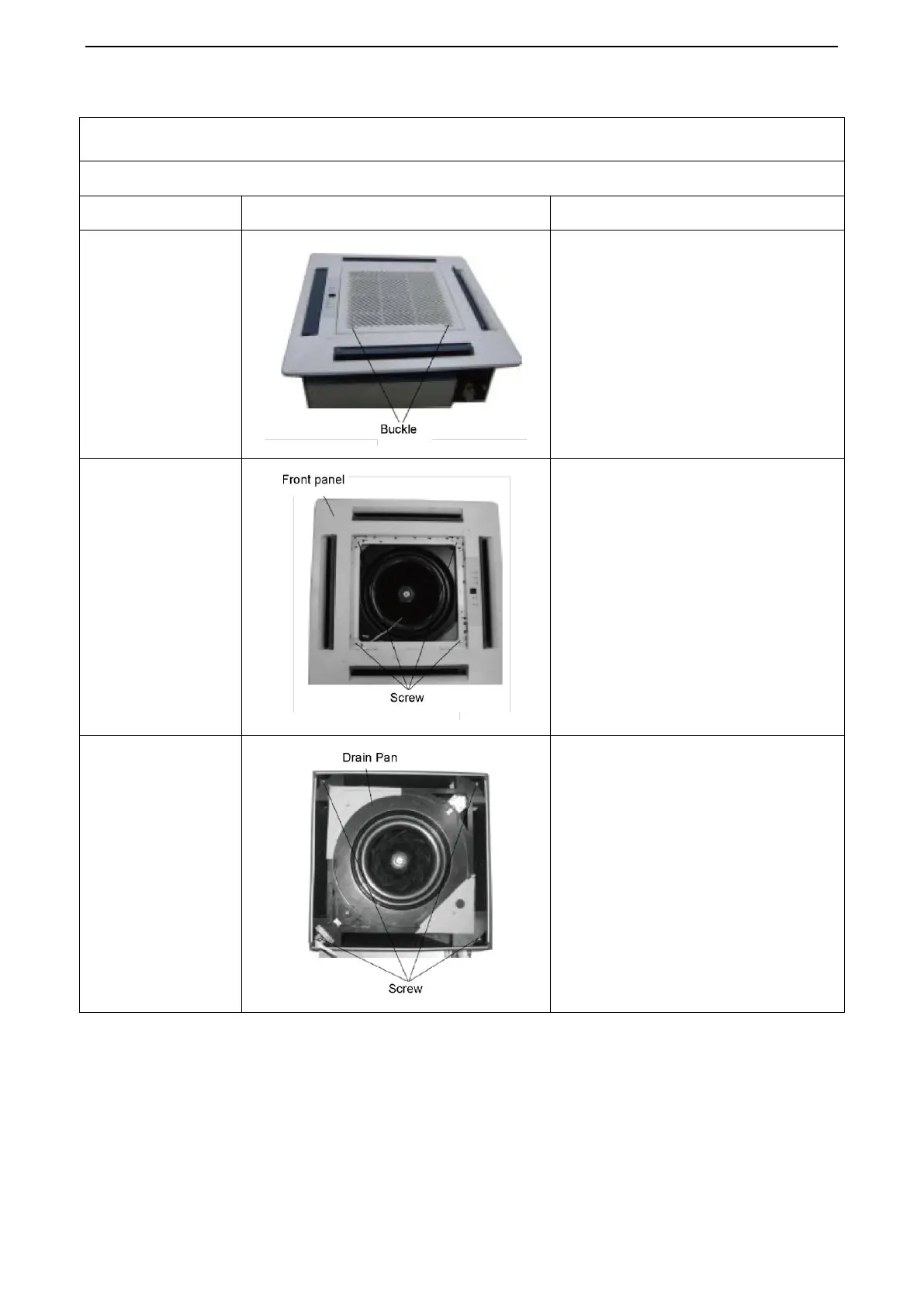

Disassembly Procedures of Indoor Unit

Remark: Make sure that the unit is stopped running and power supply is cut off before removal of the motor.

Process

Pictorial View

Handling Description

①

Disassemble the

grille of the front

panel

Push the left and right buckles on the grille of

the front panel toward the center and

meanwhile pull it upward until it forms a 45

℃

angle, after that pull the grille backward.

②

Disassemble the

front panel

Disconnect the power cord of the fan motor

and the plug of the limit switch.

Open the cover

Ⅱ

of the electric box and

disconnect the six-cord plug, then remove

covers on four corners away, after that,

loosen the screws to the right position and

turn the front panel counter clockwise and

lastly pull it out upward.

③

Disassemble the

drain pan

Loose the screws on the cover

Ⅰ

of the

electric box and then take the cover away.
