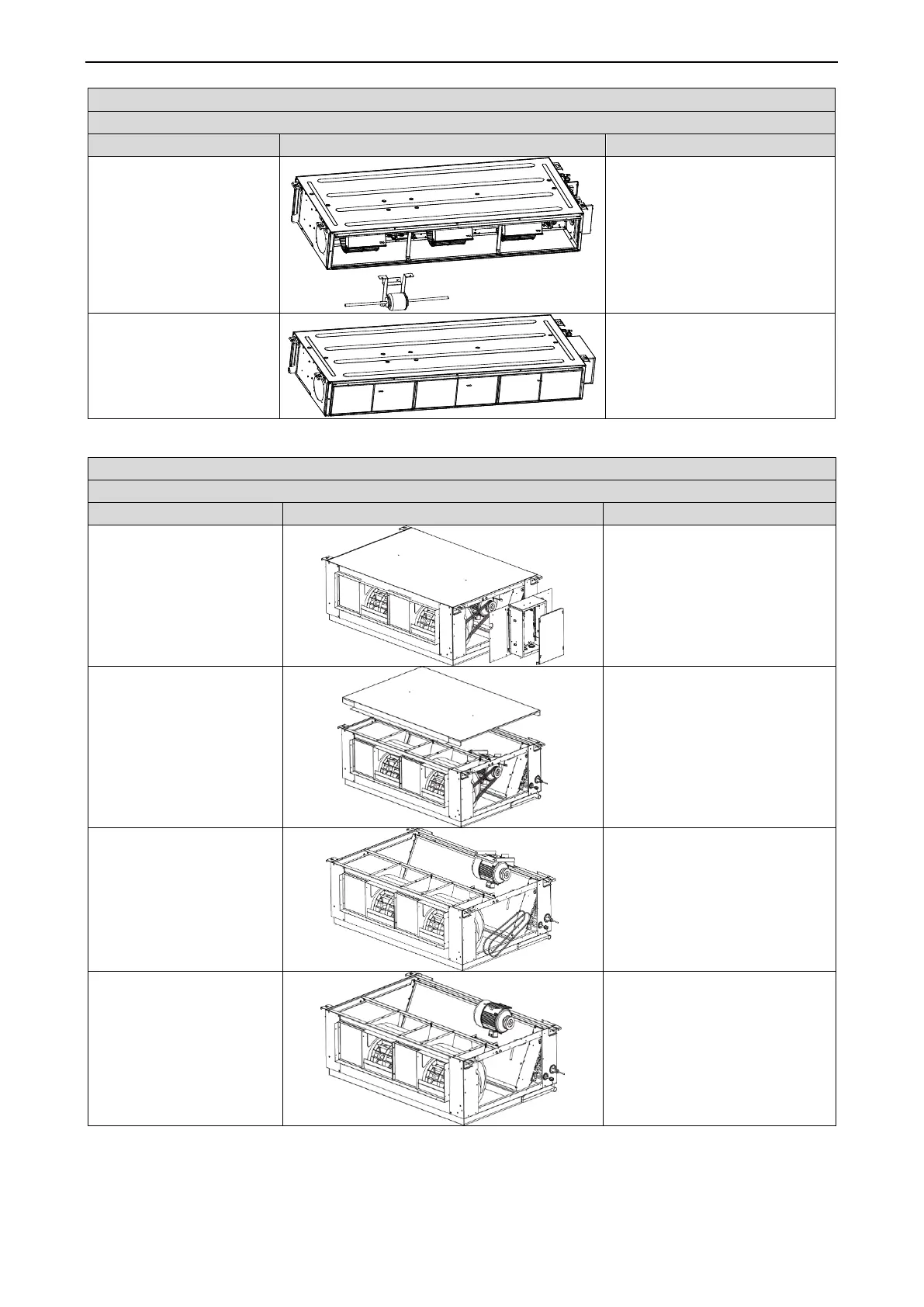

Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
4. Remove the motor.
●Remove the motor from the
support and remove the louver
from the motor axle. Then,
remove the motor.
5. Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
GMV-NX224P/A(X2.0)-M, GMV-NX280P/A(X2.5)-M, GMV-NX280P/A(X3.0)-M
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
1.Remove the line
connecting to the motor.
●Use a screwdriver to unscrew the
electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
2. Remove the cover plate
assembly
●Use a screwdriver to unscrew the
bolt to fixure the cover plate.
3. loosen the strap, Remove
the motor cover plate
●loosen the strap, Use a
screwdriver to unscrew the bolt to
fixure the cover plate.
4. Remove the motor.
●Remove the motor from the
support and remove the louver
from the motor axle. Then, remove
the motor.
