GREE GMV5 INDOOR UNIT SERVICE MANUAL
174
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
5.Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
GMV-NX450P/A(X4.0)-M
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure

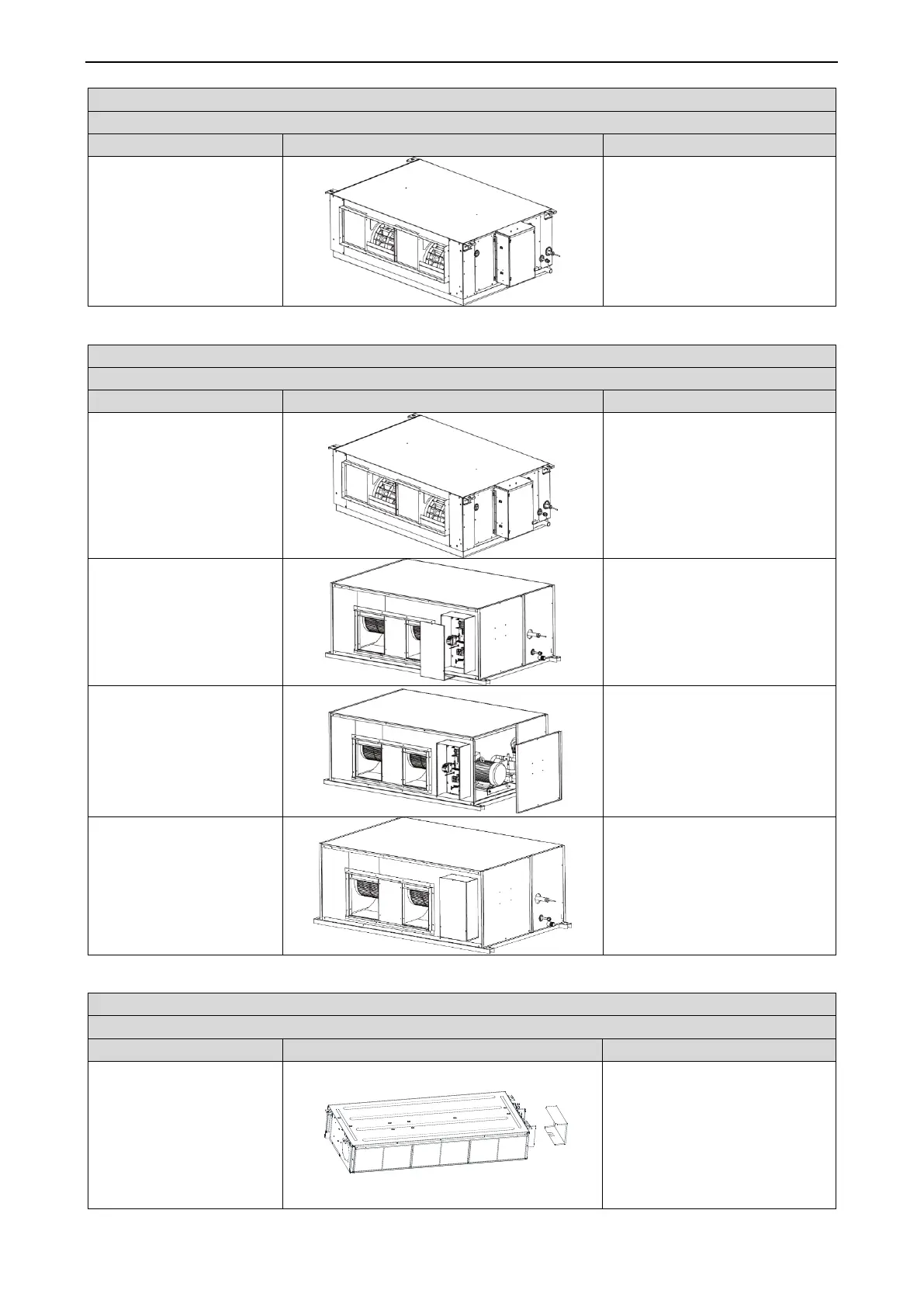

1.Remove the line
connecting to the motor.
●Use a screwdriver to unscrew the
electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
2.Remove the cover plate
assembly
●Use a screwdriver to unscrew the
bolt to fixure the cover plate
3. Remove the motor.
●Remove the motor from the
support and remove the centrifugal
fan from the motor axle. Then,
remove the motor.
●For motors that are accompanied
with supports, the supports need
removing as well
4.Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
GMV-NDX125P/A-T, GMV-NDX140P/A-T
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
1. Remove the line
connecting to the motor.
●Use a screwdriver to unscrew the
electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
