Gree GMV-N22G/A3A-K

GREE GMV5 INDOOR UNIT SERVICE MANUAL
199

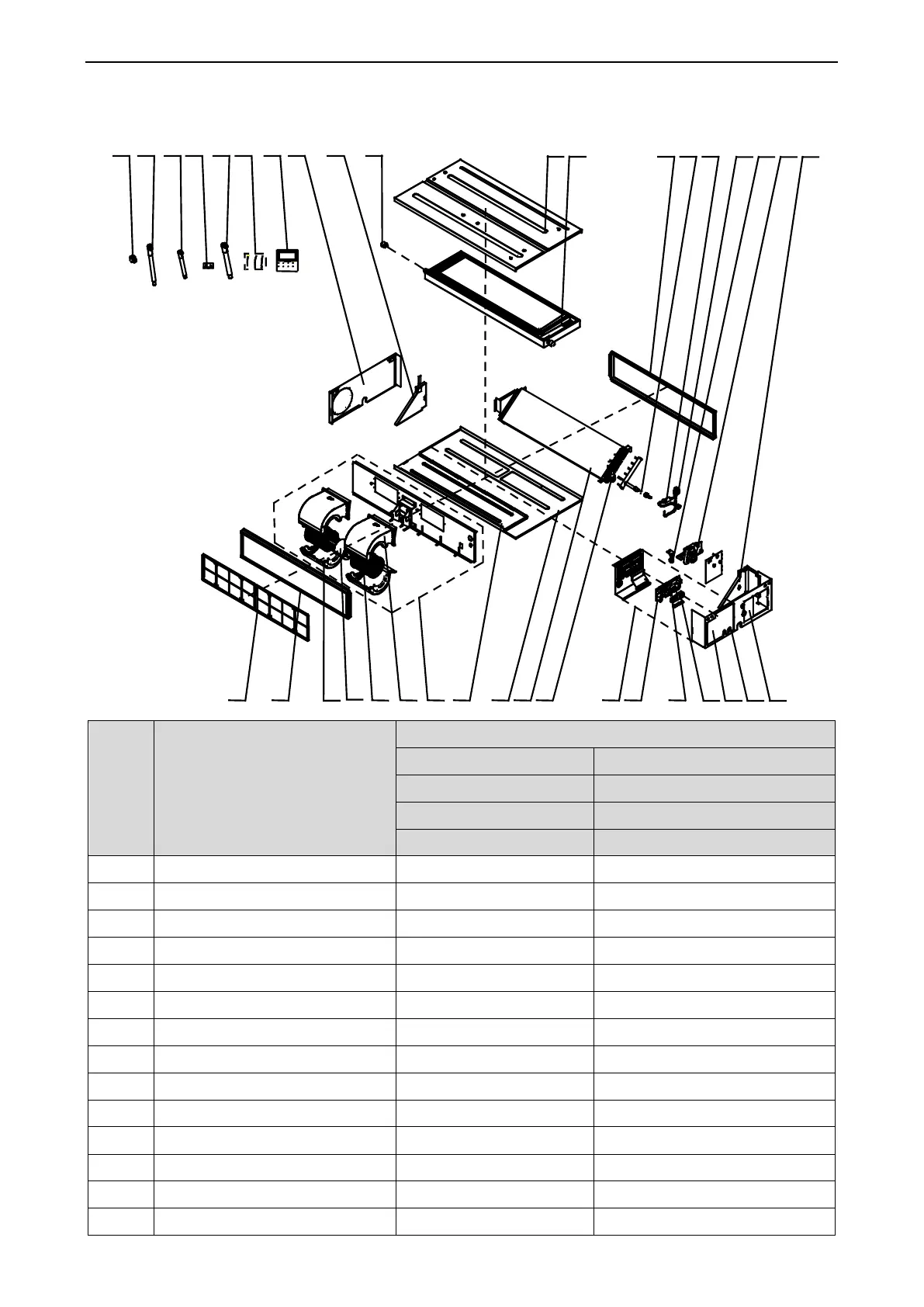

Exploded View of GMV-ND71PLS/A-T, GMV-ND80PLS/A-T:
1
2 5 6 7 8
9
10 11
12 13
14
15
16
20
19
1817
4
3
24 23
22 21
25
2627
28
29
3031
3233
3435
3637
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND71PLS/A-T
CM800N3520
GMV-ND80PLS/A-T
CM800N3440
Part code
Quantity
1
Filter Sub-Assy
11725207
2
2
Air Intake Side Board Sub-assy
02225265
1
3
Rear volute casing
26905209
2
4
Fan Motor
15704100001
1
5
Centrifugal fan
1041410101
2
6
Front volute casing
26905208
2
7
Centrifugal fan assy
15404100014
1
8
Cover Of Air-In
01265346
1
9
Bottom Cover Plate
01265348
1
10
Evaporator Assy
01024100112
1
11
Filter
07415210
1
12
Electric Box Assy
01394100205
1
13
Main Board
30226000029
1
14
Terminal Board
4201800002601
1
