8 Timer/Time
It is used to set the timing or on/off time of the selected indoor
unit as well as to set the clock of the system.
9
Tue
2/10
It is used for the switchover between unit 2 and unit 10;
Under the timing or clock setting status, it indicates Tuesday.
10 Central It is used for the switchover between single and centralized control modes.
11
Sat
6/14
It is used for the switchover between unit 6 and unit 14;
Under the timing or clock setting status, it indicates Saturday.
12
Wed
3/11
It is used for the switchover between unit 3 and unit 11
Under the timing or clock setting status, it indicates Wednesday.
13
Sun
7/15
It is used for the switchover between unit 7 and unit 15
Under the timing or clock setting status, it indicates Sunday.
14
Thu
4/12
It is used for the switchover between unit 4and unit 12
Under the timing or clock setting status, it indicates Thursday.
15 8/16 It is used for the switchover between unit 8 and unit 16
16 Shield It is used to deactivate some or all functions of a single or a group the indoor unit(s).
17 All on/off It is used to start/stop all indoor units.

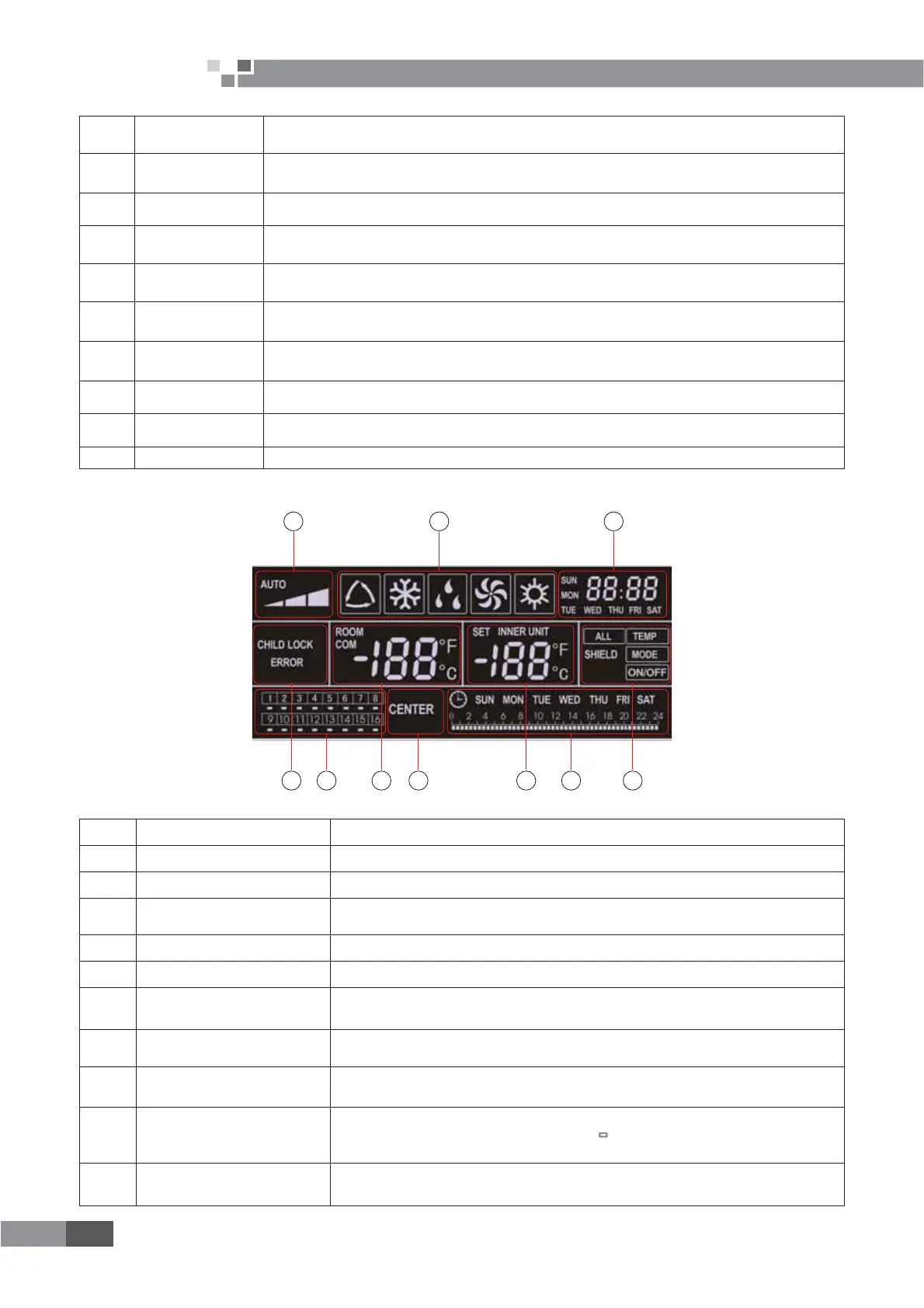

6.3 Display View
1 2 3
4579 68 10
Fig.6.3
No. Name Description
1 Fan speed It displays the fan speed of the indoor unit, high, medium, low and auto.
2 Running mode It displays the running mode of the indoor unit, auto, cool, dry, fan and heat.
3 System clock
It displays the current time (hour and minute) in 24-
hour time system and also the week day.
4 Shield It displays the shield status, “ALL’, “TEMP”, “MODE” and ‘On/Off”.
5 Weekly timer It displays the timing period (unit: 0.5 hour) which will circulate every week.
6
Set temperature
Indoor unit code
It displays the set temperature, indoor unit code (01-16),
and symbols of Celsius and Fahrenheit scale.
7 Control mode
It displays “CENTER” under the centralized control mode
and no display under the single control mode.
8
Ambient temperature
Serial port
It displays the ambient temperature, serial port as well as
symbols of Celsius and Fahrenheit scale.
9
Indoor unit code
On/off status
Numbers indicate the indoor unit codes which will be displayed
when the corresponding indoor unit is online; “
” indicates the on/
RIIVWDWXVRIWKHLQGRRUXQLWLWVÀDVKLQJIRU³RQ´RUHOVHIRU³RII´
10
Error
Child lock
It displays the error codes when some error(s) arises and also
“CHILD LOCK” when this function is activated.
