GREE Service Manual GWC09AA / K5NNA6A Page 107

Trouble Shooting for the PG motor

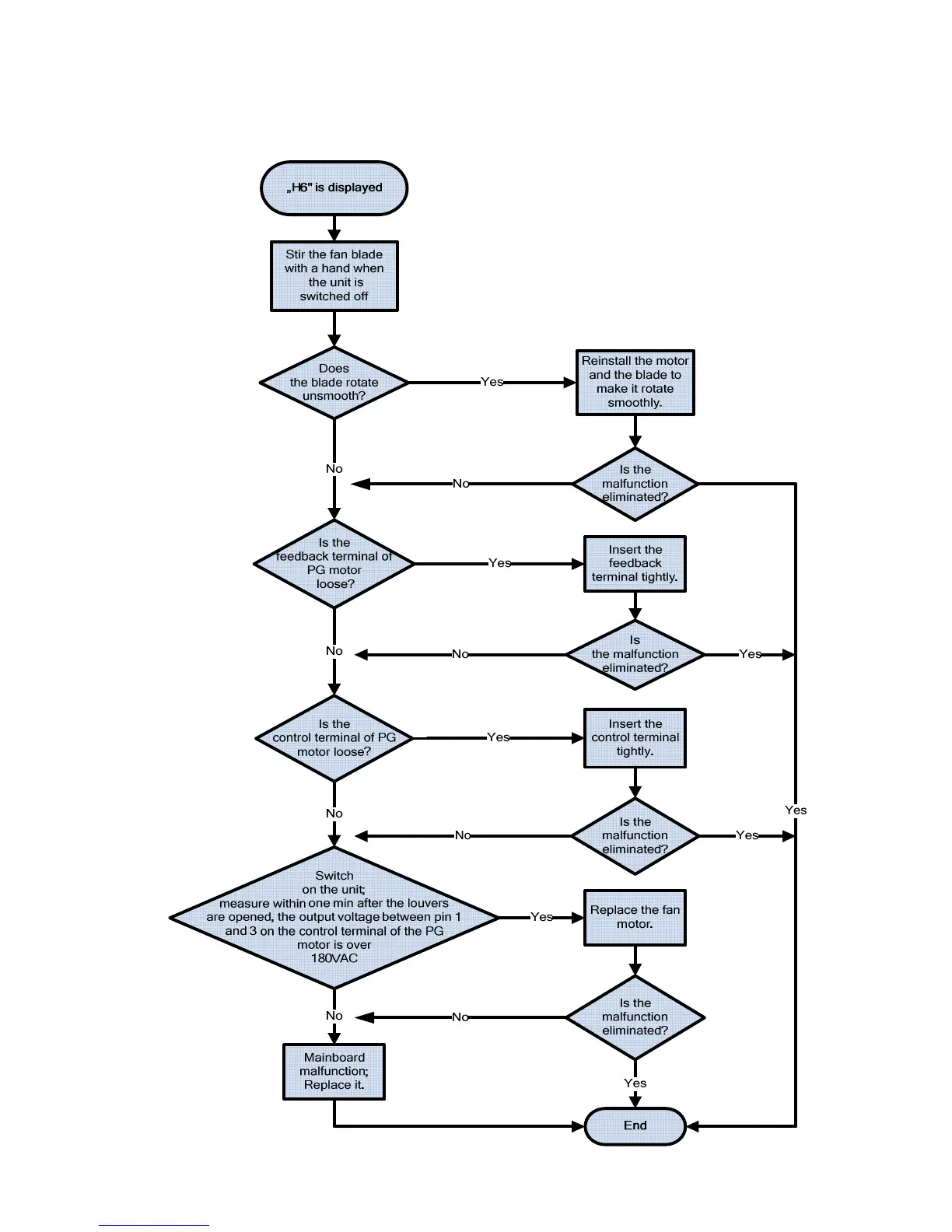

According to the below-provided diagram, identify the possible malfunction related to the indoor fan

(PG motor) and “H6” error code indication.
