GREE Service Manual GWC09AA / K5NNA6A Page 19

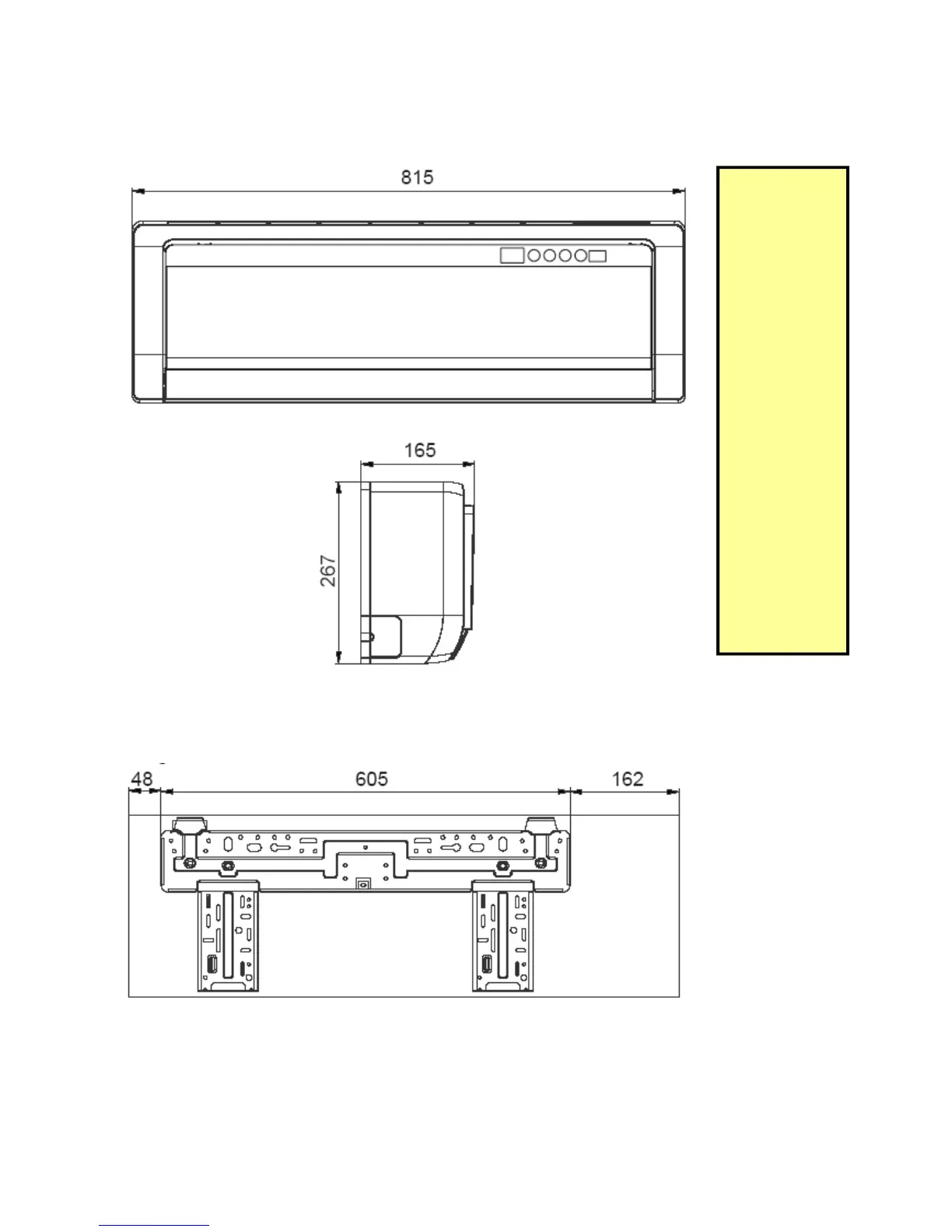

Construction Views
(All Dimensions in mm)
Indoor Unit
Wall Mounted Plate
The indoor unit
is equipped with
pre-fixed and
isolated refriger-
ant transfer
pipes!
The length of the
pipes is 5 m.
The indoor-unit
is pre-charged
with HC R-290
refrigerant
In addition pre-
fixed is:
1. Electrical con-
nections be-
tween indoor
and outdoor
unit
2. Mains-supply
cable with
plug
3. Condensate
drain pipe
