Gree GWC09AA - Freeze Protection (E2) Trouble Shooting

136 pages

Save Page as PDF

To Next Page

To Previous Page

GREE Service Manual GWC09AA / K5NNA6A Page 109

Trouble Shooting for Freeze Protection

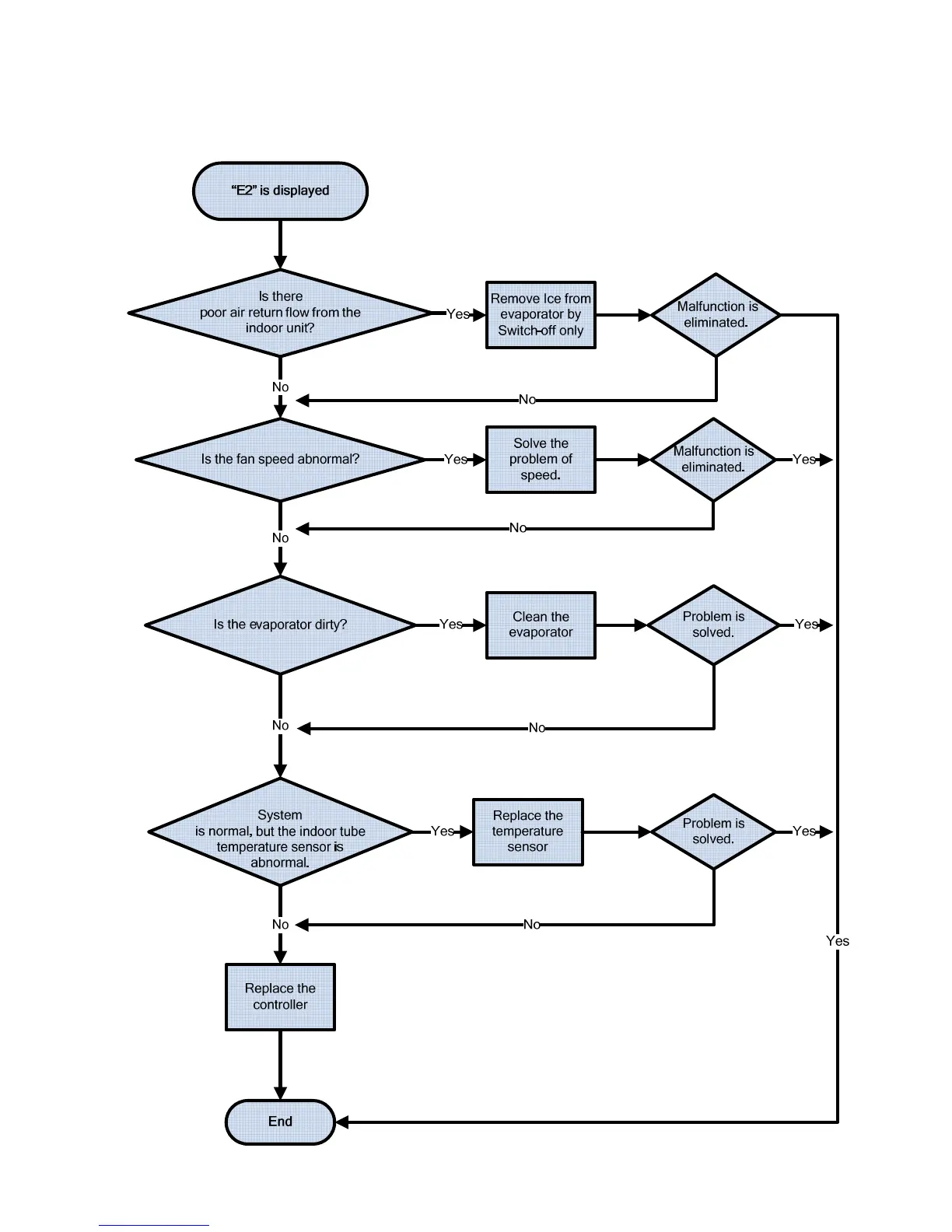

According to the below-provided diagram, identify the possible malfunction related to the freeze pro-

tection and “E2” error code indication
